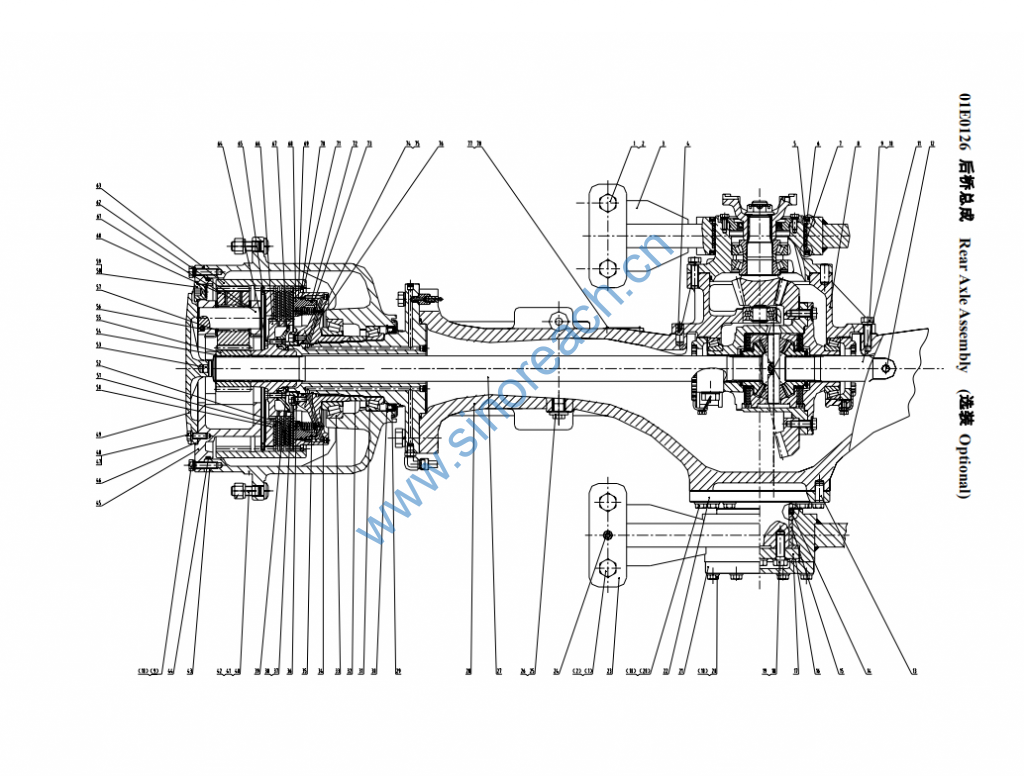

CLG842 01E0126 后桥总成 Rear Axle Assembly (选装 Optional

1 01B0167 GB5785-86 螺栓 Bolt M24×2×130-10.9-Zn.
D
8
2 03B0200 CB082428-3 锁紧螺母 Lock nut M24×2-8 8
3 41C0015 前摆动支架 Front swinging bracket 1
4 60A0011 ZL50C.2-26 定位销 Locating pin 2
5 34C0087 ZL50F.3.4 密封圈 Seal ring 2
6 00A0259 ZL50C.3-1 卡环 Snap ring 1
7 83A0045 ZL50F.3.3-1 衬套 Bushing 1
8 41C0115 主传动总成 Main drive assembly 1
9 00B0103 GB5783-86 螺栓 Bolt M14×50-10.9-Zn.D 1
10 06B0103 ZL50F.3-2 淬硬垫圈 Quench hardening washer 74
11 62A0070 左半轴 Left half axle 1
12 03B0406 Q9001 通气塞 Air plug 1
13 66A0013 ZL50F.3-8 销 Pin 2
14 35C0047 ZL50F.3.2 密封圈 Seal ring 1
15 83A0083 ZL50F.3.1-1 衬套 Bushing 1
16 88A0157 ZL50F.3-6 止推垫片 Thrust gasket 2
17 56A0088 ZL50F.3-5 压紧板 Pressure plate 1
18 00B0159 GB5783-86 螺栓 Bolt M18×55-10.9-Zn.D 4
19 06B0102 ZL50F.3-4 淬硬垫圈 Quench hardening washer 4
20 00B0057 GB5783-86 螺栓 Bolt M14×45-8.8-Zn.D 20
21 53A0073 ZL50G.3.1-1 盖 Cover 1
22 61A0109 ZL50F.3-7 后支承轴 Rear support axle 1
23 24D0009 后摆动支架 Rear swinging bracket 1
24 00A0260 ZL50C.3-2 销 Pin 2
25 03B0212 螺塞 Screw plug 2
26 06B0055 JB982-77 组合密封垫圈 Combination sealing washer 27 2
27 62A0071 右半轴 Right half axle 1
28 41C0183 桥壳轮边支承 Axle housing wheel
supporting
1
29 13B0220 B1USL356357 密封圈 Seal ring 150×180×15 2
30 76A0002 ZL50C.2-7 卡环 Snap ring 2
31 23B0054 HR32024XJ NSK圆锥滚子
轴承
NSK tapered roller bearing 2
32 51C0093 轴套 Bearing bush 2
33 23B0055 HR32028XJ NSK圆锥滚子
轴承
NSK tapered roller bearing 2
34 24D0053 内齿轮支承焊
接件
Support weldment of inner
gear
2
35 12B0216 GB3452.1-92 O形圈 O-ring 97.5×3.55 2
36 03B0431 圆螺母 Round nut 2
37 04B0022 GB70-85 螺钉 Screw M10X25-8.8-Zn.D 4
38 06B0002 GB93-87 垫圈 Washer 10 4
39 06B0274 垫圈 Washer 2
40 01B0379 螺栓 Bolt 24

41 03B0150 GB6171-86 螺母 Nut M20×1.5-8-Zn.D 24
42 06B0019 垫圈20 Washer 20 24
43 70A0093 轮毂 Wheel hub 2
44 12B0426 GB3452.1-92 O形圈 O-ring 365×7 2
45 70A0089 行星轮架 Planet wheel frame 2
46 81A0081 垫片 Gasket 2
47 00B0017 GB5783-86 螺栓 Bolt M12X30-8.8-Zn.D 12
48 06B0008 GB93-87 垫圈 Washer 12 12
49 53A0262 端盖 End cover 2
50 52A0127 承压盘 Bearing disc 2
51 51C0097 对偶钢片 Plate 10
52 37C0035 摩擦片 Friction plate 8
53 61A0019 ZL50C.2-20 轴 Axle 2
54 07B0028 GB894.1-86 挡圈 Retainer ring 55 2
55 41A0100 太阳轮 Sun Gear 2
56 20B0026 GB308-89 钢球 Steel Ball 9.525 6
57 20A0011 ZL50C.2-15A 垫片 Gasket 12
58 03B0432 螺塞 Screw plug 2
59 06B0054 JB982-77 垫圈 Washer 33 2
60 41A0101 行星轮 Planet gear 6
61 20B0045 滚针 Needle roller 168
62 61A0263 行星轮轴 Planet wheel axle 6
63 46A0009 内齿轮 Inner gear 2
64 00B0002 GB5783-86 螺栓 Bolt M10×35-8.8-Zn.D 8
65 07B0078 挡圈 Retainer ring 2
66 72A0293 摩擦片支承 Friction plate
support
2
67 72A0292 圆盘 Disc 2
68 50A0133 活塞 Piston 2
69 88A0456 支承环 Support ring 2
70 07B0077 挡圈 Retainer ring 2
71 12B0421 密封圈 Seal ring 2
72 12B0425 密封圈 Seal ring 2
73 88A0523 支承环 Support ring 2
74 10B0070 弹簧 Spring 16
75 75A0130 钢丝挡圈 Steel retainer ring 4
76 12B0423 GB3452.1-92 O形圈 O-ring 106×3.55 2
77 74A1485 桥铭牌 Axle nameplate 1
78 09B0002 GB827-86 铆钉 Rivet 4
