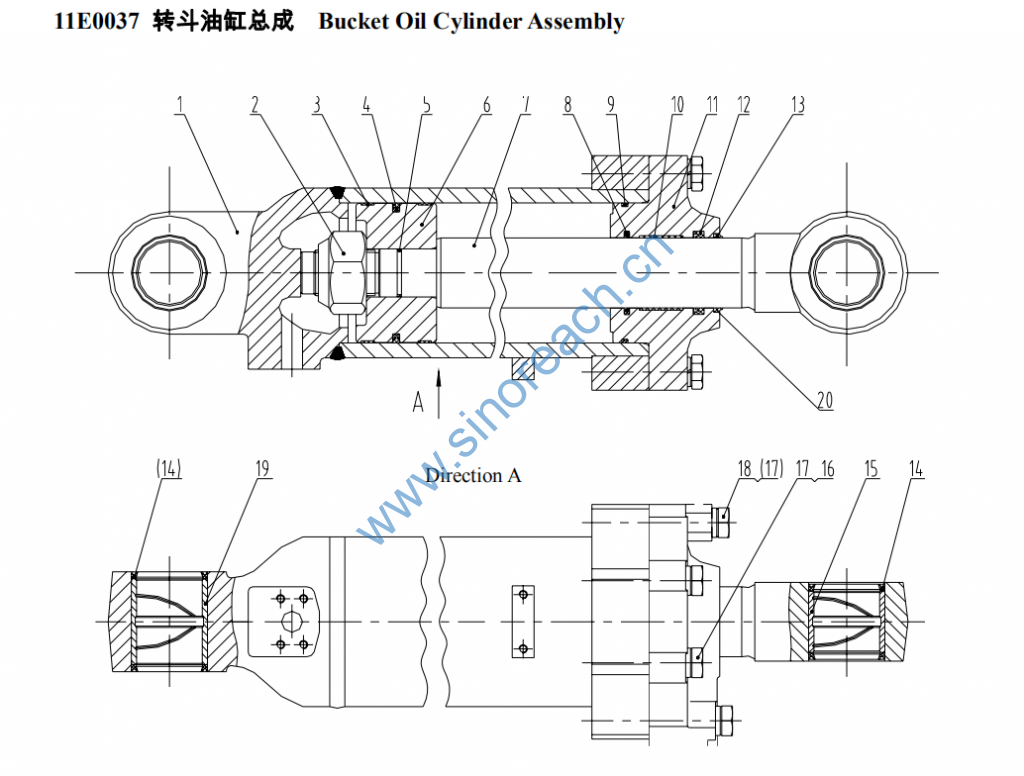

CLG842 11E0037 转斗油缸总成 Bucket Oil Cylinder Assembly

1 13D0066 缸体 Cylinder body 1
2 34C0019 CB085255-3 锁紧螺母 Lock nut M52×2 1
3 80A0218 支承环 Support ring 2
4 13B0073 OK16000701 密封圈 Seal ring 1
5 12B0088 GB3452.1-92 O形圈 O-ring 48.7×3.55 1
6 50A0127 活塞 Piston 1
7 61A0111 活塞杆 Piston rod 1
Direction A
61
8 34C0151 BU008200656 密封圈 Seal ring 1
9 12B0205 GB3452.1-92 O形圈 O-ring 150×5.3 1
10 80A0066 ZL50G.10.1-4 活塞杆支承环 Support ring for
piston rod
1
11 54A0103 缸盖 Cylinder cap 1
12 13B0158 BS8095P5008 Y形密封圈 Y-seal 1
13 13B0129 AF8013Z5071 防尘圈 Dust ring 1
14 35C0012 ZL50C.11.8 密封圈 Seal ring 75×87×8 4
15 55A0167 ZL40B.11-7 套 Sheath 1
16 01B0058 GB5785-86 螺栓 Bolt M22×2×80-10.9-Zn. 4
17 00B0042 GB93-87 垫圈 Washer 22 8
18 01B0059 GB5785-86 螺栓 Bolt M22×2×120-10.9-Zn 4
19 55A0086 ZL50C.10.1-12 轴衬 Bushing 1
20 76A0082 弹性挡圈 Circlip 1
