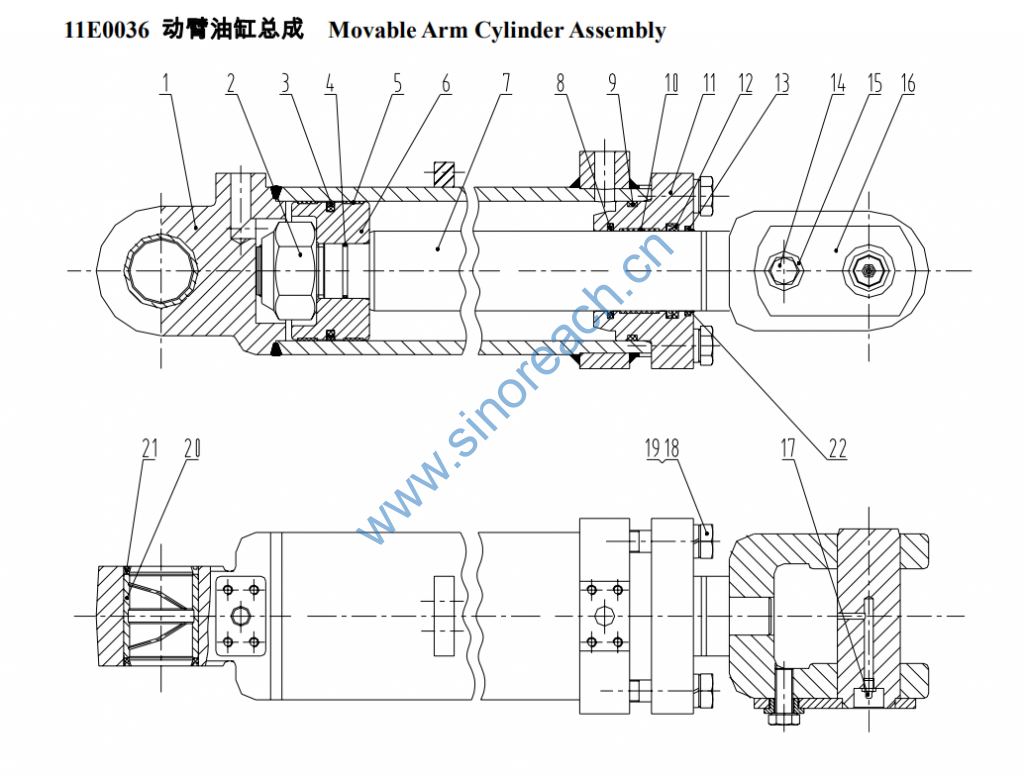

CLG842 11E0036 动臂油缸总成 Movable Arm Cylinder Assembly

1 13D0068 缸体 Cylinder body 1
2 34C0019 CB085255-3 锁紧螺母 Lock nut M52×2 1
3 13B0072 OK01400701 密封圈 Seal ring 1
4 12B0088 GB3452.1-92 O形圈 O-ring 48.7×3.55 1
5 80A0088 支承环 Support ring 2
6 50A0033 活塞 Piston 1
7 14D0021 活塞杆 Piston rod 1
8 34C0151 BU008200656 密封圈 Seal ring 1
9 12B0108 GB3452.1-92 O形圈 O-ring 128×7 1
10 80A0089 支承环 Support ring 1
11 54A0102 缸盖 Cylinder cap 1
12 13B0158 BS8095P5008 Y形密封圈 Y-seal 1
13 13B0129 AF8013Z5071 防尘圈 Dust ring M8×30-8.8-Zn.D 1
14 00B0183 GB5783-86 螺栓 Bolt M18X45-8.8-Zn.D 1
15 56A0050 ZL50C.10.1-9 垫套 Cushion 1
60
16 11D0016 ZL40B.10.1.3 销轴总成 Pin shaft
assembly
23.6×3.55 1
17 10B0014 GB1152-89 油杯 Oil cup M10X1 1
18 01B0194 GB5785-86 螺栓 Bolt M22X2X110-10.9-Zn.D 4
19 00B0042 GB93-87 垫圈 Washer 22 4
20 55A0128 ZL40B.10.1-1 衬套 Bushing 10 1
21 35C0013 ZL50C.11.10 密封圈 Seal ring 63×75×8 2
22 76A0082 弹性挡圈 Circlip 1
