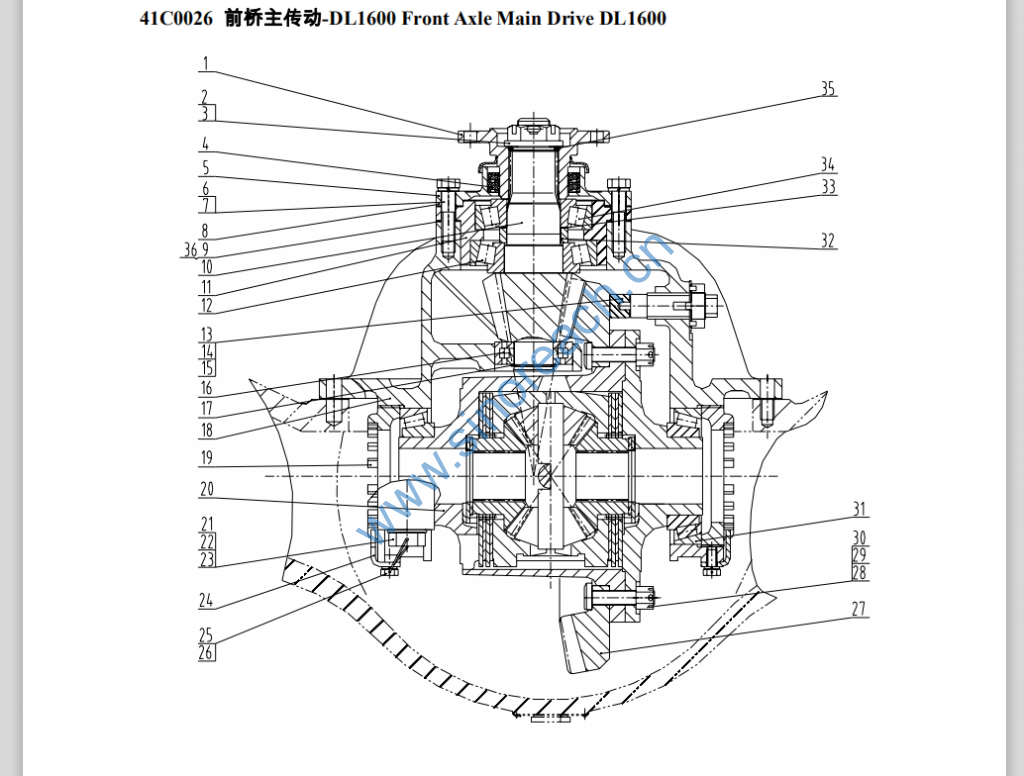

CLG842 41C0026 前桥主传动-DL1600 Front Axle Main Drive -DL1600

1 12D0032 ZL50G.3A.1.1 输入法兰 Input flange 1
2 03B0050 BS305-31 带槽螺母 Castle nut 1
3 08B0032 GB91-86 销 Pin 6.3×60 1
4 13B0169 B1SL 348203 油封 Oil seal 70×95×13 2
5 53A0307 密封盖 Sealed cap 1
6 00B0275 GB5783-86 螺栓 Bolt M14×55-8.8-Zn.D 8
7 06B0013 GB93-87 垫圈 Washer 14 8
8 80A0021 ZL50C.2.1-3 垫密片 Gasket 1
9 57A0024 ZL50C.2.1-4 调整垫片 Adjusting shim 1
10 43A0014 前桥主动螺旋
锥齿轮
Main drive helical bevel gear
of front axle
1
11 55A0077 ZL50C.2.1-6 轴承套 Bearing shell 1
12 23B0019 GB/T297-94 圆锥滚子轴承31312 Tapered roller bearing 31312 60×130×33.5 1
13 44C0019 ZL50C.2.1.2 止推螺栓 Thrust Bolt 1
14 03B0154 GB6173-86 螺母 Nut M27×2-04-Zn.D 1
15 76A0011 ZL50C.2.1-7 锁紧片 Lock Sheet 1
16 22B0006 NUP2208ET NSK圆柱滚子轴承 NSk tapered roller bearing 40×80×23 1
17 07B0038 GB894.1-86 挡圈 Retainer ring 40 1
18 41C0031 托架总成 Bracket assembly 1
19 03B0062 ZL50C.2.1-10 调整螺母 Adjusting nut 2
20 41C0062 DL1600差速器 DL1600 differential gear 1
21 02B0015 GB32.1-88 螺栓 Bolt M22×100-8.8-Zn.D 4
22 06B0270 淬硬垫圈 Quench hardening washer 4
23 40B0006 铁丝 Wire φ1.5×450 2
24 21A0040 ZL50C.2.1-14 锁紧片 Lock sheet 2
25 02B0012 GB32.1-88 螺栓 Bolt M10×20-8.8-Zn.D 2
26 06B0002 GB93-87 垫圈 Washer 10 2
27 43A0015 前桥大螺旋锥齿轮 Major bevel gear of front axle 1
28 02B0024 螺栓 Bolt 12
29 03B0156 GB9457-88 螺母 Nut M14×1.5-8-Zn.D 12
30 08B0040 GB91-86 销 Pin 3.2×30 12
31 23B0012 GB/T297-94 圆锥滚子轴承32216 Tapered roller bearing 32216 80×140×35.25 2
32 55A0078 ZL50C.2.1-18 轴套 Bearing bush 1
33 57A0027 ZL50C.2.1-19 垫片 Gasket 1
34 23B0018 GB/T297-94 圆锥滚子轴承31311 Tapered Roller Bearing 31311 55×120×31.5 1
35 12B0105 GB3452.1-92 O形圈 O-ring 42.5×5.3 G 1
36 81A0072 垫片 Gasket 1
