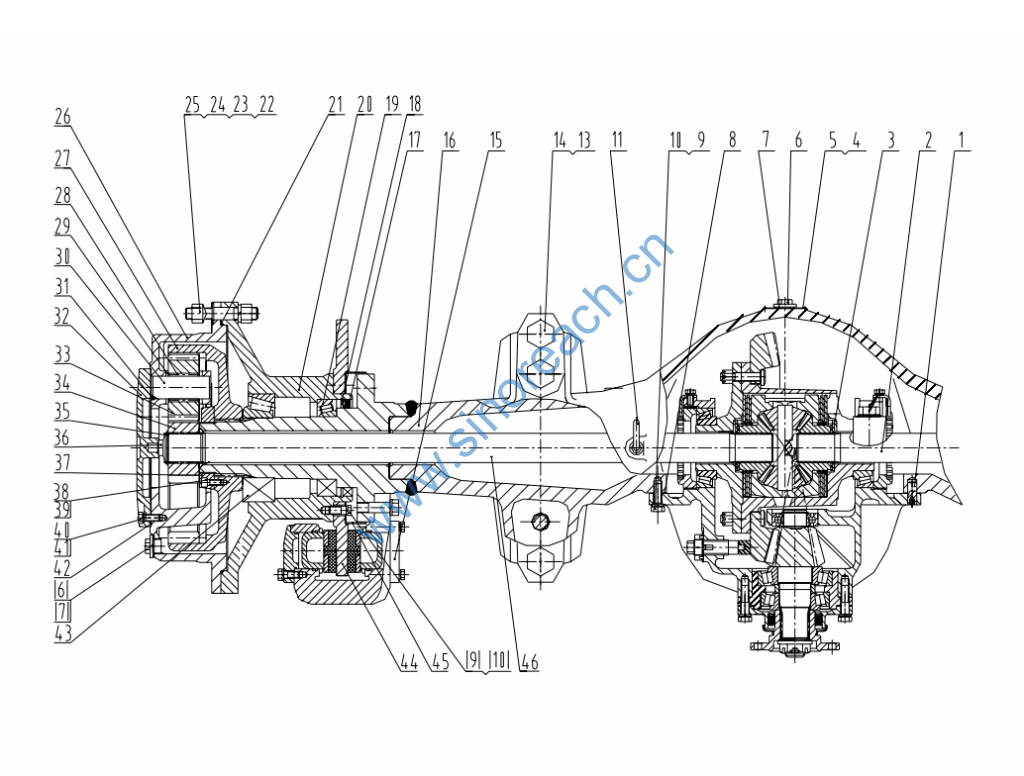

CLG842 01E0008 前桥总成–DL1600 Front Axle Assembly–DL1600

1 60A0011 ZL50C.2-26 定位销 Locating pin 2
2 62A0023 右半轴 Right Half Shaft 1
3 41C0026 前桥主传动-DL1600 Front axle main
drive-DL1600
1
4 74A1188 桥铭牌 Axle nameplate 1
5 09B0002 GB827-86 铆钉 Rivet 2×5 4
6 03B0212 螺塞 Screw plug 4
7 06B0055 JB982-77 组合密封垫圈 Combination seal
washer
27 4
8 81A0004 ZL50C.2-2 垫片 Gasket 1
9 00B0273 GB5783-86 螺栓 Bolt M14×40-8.8-Zn.D 54
10 06B0013 GB93-87 垫圈 Washer 14 54
11 03B0406 ZL50C.2-3 通气塞 Air plug 1
13 01B0001 GB5785-86 螺栓 Bolt M30×2×160-8.8-Zn.D 8
14 03B0195 CB083033-3 锁紧螺母 Lock Nut M30×2-8-Zn.D 8
15 45C0005 ZL50C.2.2A 夹钳总成 Clamp assembly 4
16 24D0006 桥壳轮边支承轴 Wheel support axle for
axle housing
1
17 13B0213 密封圈 Seal ring BASL140×170×15 2
18 76A0019 ZL40B.2-6 卡环 Snap ring 2
19 23B0001 GB/T297-94 圆锥滚子轴承32022 Tapered roller bearing
32022
110×170×38 2
20 70A0016 ZL40B.2-7 轮毂 Wheel hub 2
21 12B0093 ZL40B.2-9 O形密封圈 O-ring 450X5 2
22 01B0181 ZL50C.2-10A 轮辋螺栓 Rim bolt 20
23 03B0201 120-3103018 轮辋螺母 Rim nut 20
24 03B0150 GB6171-86 螺母 Nut M20×1.5-8-Zn.D 20
25 06B0019 GB93-87 垫圈 Washer 20 20
26 70A0017 ZL40B.2-10B 行星轮架 Planet wheel frame 2
27 46A0004 内齿轮 Ring Gear 2
28 20B0022 GB309-84 滚针 Needle roller P5×50 186
29 76A0020 ZL40B.2-12A 垫片 Gasket 12
30 60A0121 ZL40B.2-13 行星齿轮轴 Planet gear shaft 6
31 20B0026 GB308-84 钢球 Steel ball 9.525 6
32 53A0064 ZL40B.2-16 盖 Cover 2
33 41A0036 行星齿轮 Planet Gear 6
34 41A0034 太阳轮 Sun Gear 2
35 07B0028 GB894.1-86 挡圈 Retainer ring 55 2
36 61A0019 ZL50C.2-20 轴 Shaft 2
37 03B0010 ZL50C.2-22 圆螺母 Round nut 2

38 04B0022 GB70-85 螺钉 Screw M10×25-8.8-氧化 4
39 06B0002 GB93-87 垫圈 Washer 10 4
40 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 12
41 06B0008 GB93-87 垫圈 Washer 12 12
42 81A0026 ZL40B.2-17 密封垫 Gasket 2

43 23B0010 GB/T297-94 圆锥滚子轴承32221 Tapered roller
bearing 32221 2
44 52A0038 ZL40B.2-19 制动盘 Brake disk 2
45 27A0052 ZL40B.2-20 防尘罩 Dust cover 2
46 62A0022 左半轴 Left half shaft 1
