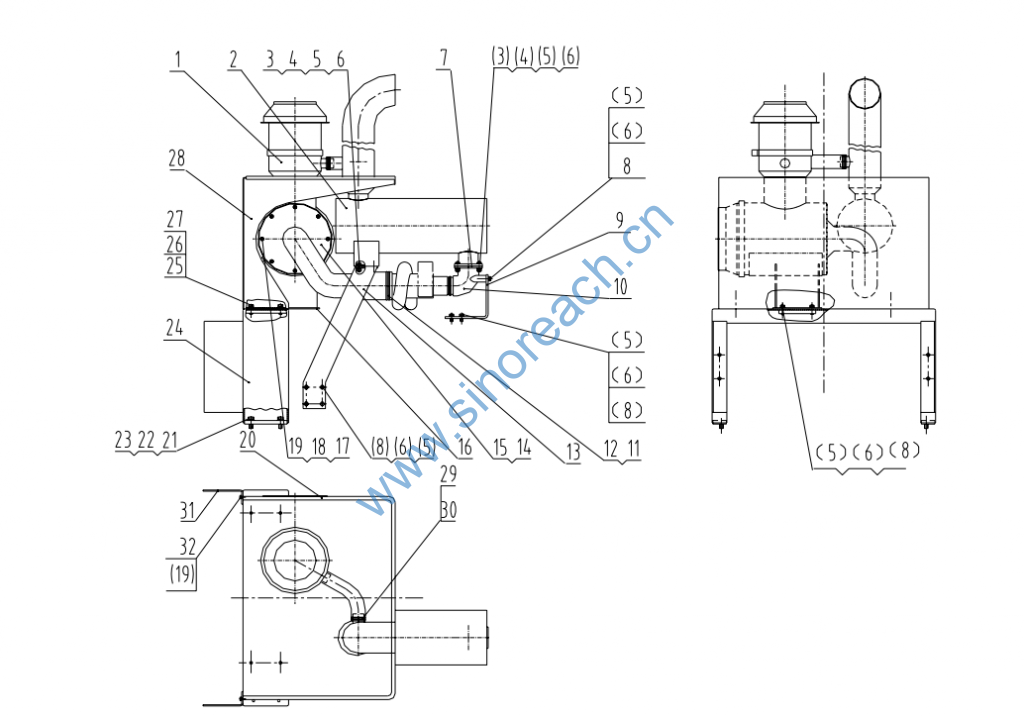

CLG842 00E0023 进排气系统 Intake and Exhaust System

1 50C0061 空滤器总成 Air filter
assembly
1
2 50C0062 消声器总成 Muffler assembly 1
3 00B0079 GB5783-86 螺栓 Bolt M10x30-8.8-Zn.D 8
4 03B0053 GB6170-86 螺母 Nut M10-8-Zn.D 8
5 06B0001 GB97.1-85 垫圈 Washer 10-140HV-Zn.D 18
6 06B0002 GB93-87 垫圈 Washer 10 18
7 81A0032 ZL50E.1-6 垫 Pad 1
8 00B0012 GB5783-86 螺栓 Bolt M10X25-8.8-Zn.D 10
9 22A0326 支板 Supporting plate 1
10 01A0141 排气管接头 Exhaust pipe joint 1
11 15B0019 ZB/T32005.1-88 双钢丝式环箍 Double steel wire
hoop
115 1
12 32A0036 06A4815 软管 Hose 1
13 23A0770 支板 Supporting plate 1
14 01A0146 进气管 Air intake pipe 1
15 81A0033 垫 Pad 1
16 02D0158 空滤支座 Air filter support 1
17 03B0021 GB6170-86 螺母 Nut M8-8-Zn.D 8
18 06B0005 GB97.1-85 垫圈 Washer 8-140HV-Zn.D 8
19 06B0006 GB93-87 垫圈 Washer 8 8
20 35C0060 4002R 密封条 Sealing trip 1
21 00B0032 GB5783-86 螺栓 Bolt M14X40 4
22 06B0063 GB97.1-85 垫圈 Washer 14-140HV-Zn.D 4
23 06B0013 GB93-87 垫圈 Washer 14 4
24 42D0034 支撑架 Holding frame 1
25 00B0077 GB5783-86 螺栓 Bolt M12X35 4
26 06B0040 GB97.1-85 垫圈 Washer 12-140HV-Zn.D 4
27 06B0008 GB93-87 垫圈 Washer 12 4
28 02D0157 支座 Support bracket 1
29 15B0055 ZB/T32005.1-88 双钢丝环箍 Double steel wire
hoop
55 2
30 32A0103 胶管 Hose 1
31 20A1471 封板 Closing board 2
32 00B0007 GB5783-86 螺栓 Bolt M8x16-8.8-Zn.D 4
