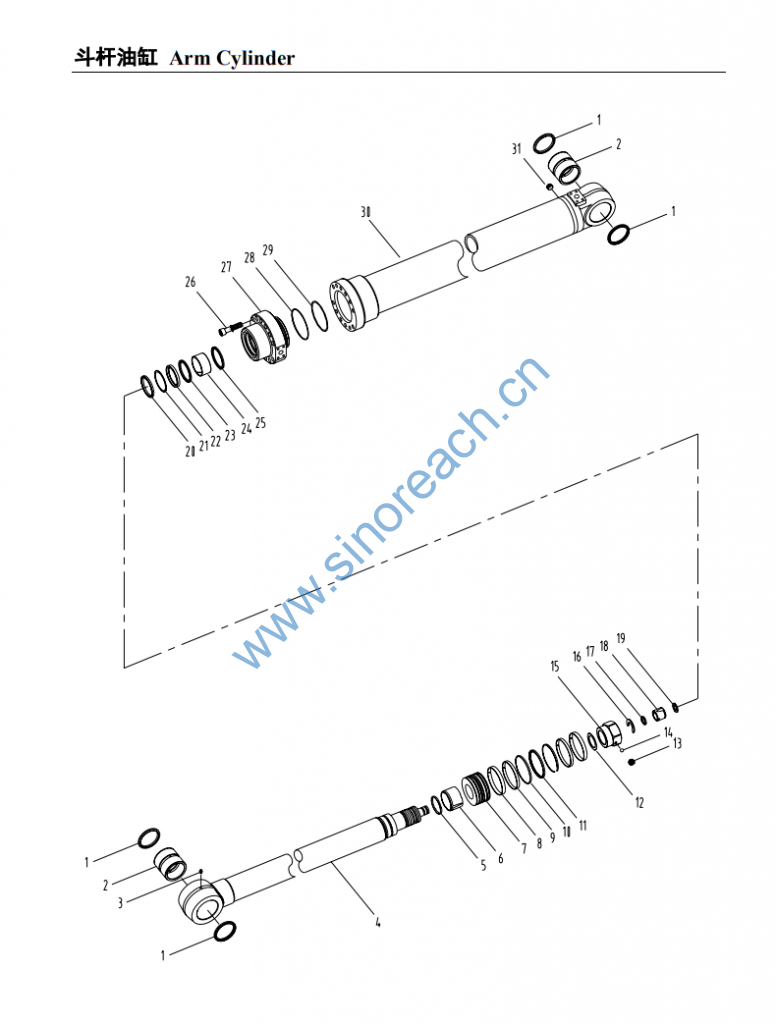

CLG200 斗杆油缸 Arm Cylinder

1 B6191-80022 密封圈 RING,WIPER 4
2 30421-80027 衬套 BUSHING,PIN 2
3 10B0014 油杯 M10×1 Grease nipple 1 GB1152-89
4 B6367-72802 活塞杆 ROD SUBASSY 1
5 30981-95021 环 SEAL,CUSH. 1
6 B6366-72804 缓冲套 RING,CUSHION 1
7 B6221-14009 活塞 PISTON 1
8 30181-14033 导向环 RING,SLIDE 2
9 30181-14011 导向环 RING,SLIDE 2
10 30931-14007 挡圈 RING,BACK-UP 2
11 30983-14001 密封圈 RING,SEAL ASSY 1
12 30301-70030 垫片 SHIM 1
13 91511-12120 螺钉 SCREW.SET 1
14 96321-07140 钢球 BALL,STEEL 1
15 B6351-70001 螺母 NUT 1
16 30141-91015 卡环 RING,SNAP 1
17 30981-38022 环 SEAL,CUSH. 1
18 B6366-72805 缓冲套 RING,CUSHION 1
19 30331-91076 卡环 STOPPER 2
20 30191-95050 防尘圈 RING,WIPER 1
21 30921-95012 挡圈 RING,BACK-UP 1
22 30961-09512 U 形圈 U-RING 1
23 B6161-95011 密封圈 RING-BUFFER 1
24 30131-95010 导向环 BUSHING 1
25 30141-80009 密封圈 RING,SNAP 1
26 92703-18800 螺钉 M18 BOLT,SCH. 12
27 B6121-14026T 缸盖 HEAD,CYL. 1
28 30461-13517 挡圈 RING,BACK-UP 1
29 95123-13500 O 形圈 O-RING 1 B2401 1B G135
30 B6367-72821 缸体 TUBE SUBASSY 1
31 97124-02111 螺塞 PLUG 1
