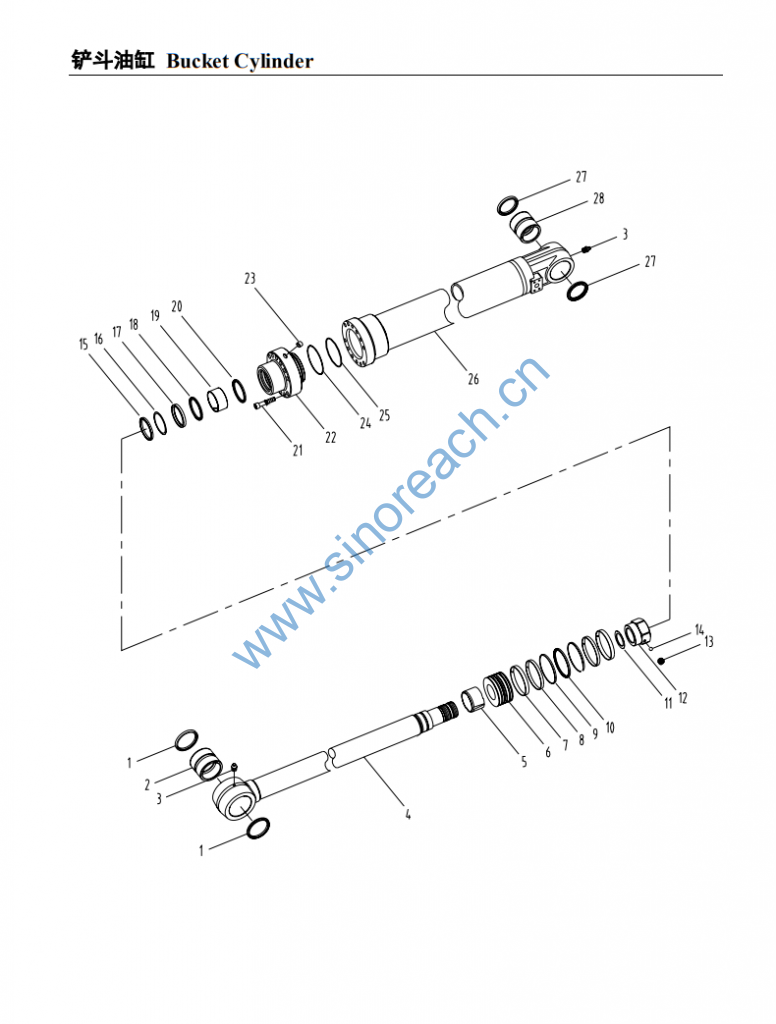

CLG200 铲斗油缸 Bucket Cylinder

1 B6191-80022 密封圈 RING,WIPER 2
2 30421-80024 衬套 BUSHING,PIN 1
3 10B0014 油杯 M10×1 Grease nipple 2 GB1152-89
4 B6367-72902 活塞杆 ROD SUBASSY 1
5 B6366-72903 缓冲套 RING,CUSHION 1
6 30221-12577 活塞 PISTON 1
7 30181-12513 导向环 RING,SLIDE 2
8 30181-12533 导向环 RING,SLIDE 2
9 30931-12507 挡圈 RING,BACK-UP 2
10 30983-12501 密封圈 RING,SEAL ASSY 1
11 30301-65030 垫片 SHIM
12 B6351-650002 螺母 NUT 1
13 91511-12120 螺钉 SCREW.SET 1
14 96321-07140 钢球 BALL,STEEL 1
15 30191-85050 防尘圈 RING,WIPER 1
16 30921-85012 挡圈 RING,BACK-UP 1
17 30961-08512 U 形圈 U-RING 1
18 B6161-85011 密封圈 RING-BUFFER 1
19 30131-85010 导向环 BUSHING 1
20 30141-70009 密封圈 RING,SNAP 1
21 92703-16750 螺钉 M16 BOLT,SCH. 12
22 B6121-12511T 缸盖 HEAD,CYL. 1
23 97124-02111 螺塞 PLUG 1
24 30461-1207 挡圈 RING,BACK-UP 1
25 95123-12000 O 形圈 O-RING 1 B2401 1B G120
26 B6367-72921 缸体 TUBE SUBASSY 1
27 30191-71022 密封圈 RING,WIPER 2
28 30421-71012 衬套 BUSHING,PIN 1
