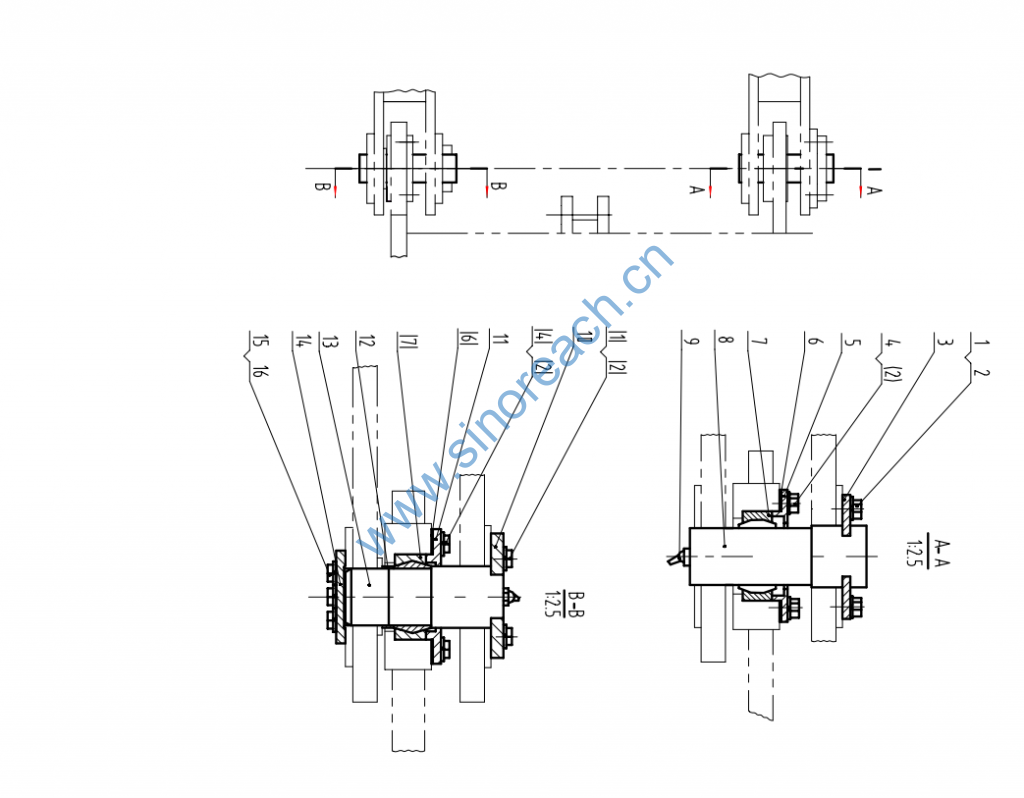

CLG835 43C0285 000 铰接总成 ARTICULATION ASSEMBLY

1 00B0017 GB5783-86 螺栓 BOLT M12×30-8.8-Zn.D 8
2 06B0008 GB93-87 垫圈 WASHER 12 24
3 14A0161 ZL40B.8-27 档板 PLATE 2
4 00B0011 GB5783-86 螺栓 BOLT M12×25-8.8-Zn.D 16
5 53A0057 轴承盖 COVER 1
6 57A0053 ZL40B.8-20 调整垫片 WASHER 2
7 25B0004 GB/T9163-2001 关节轴承
GE60ES
BEARING 60×90×44 2
8 60A0186 ZL30.8-1 上铰接销轴 PIN 1
9 10B0051 GB1153-89 油杯 CUP 45°M10×1 2
10 14A1172 压板 PLATE 1
11 53A0056 轴承盖 COVER 1
12 56A0060 ZL40B.8-21 垫圈 WASHER 1
13 60A0078 ZL40B.8-22A 下铰接销轴 PIN 1
14 56A0172 垫板 PLATE 1
15 06B0013 GB93-87 垫圈 WASHER 14 3
16 00B0120 GB5786-86 螺栓 BOLT M14×1.5×30-8.8
-Zn.D
3
