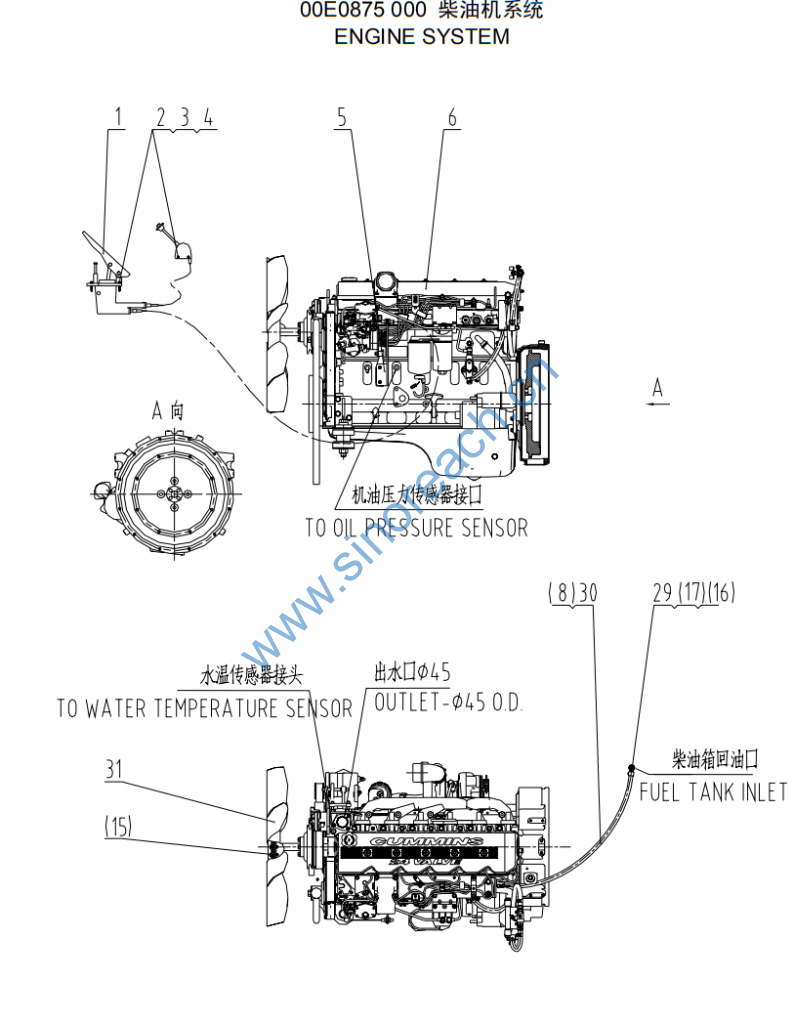

CLG414 00E0875 000 柴油机系统 ENGINE SYSTEM

1 23C0292 000 油门控制器 ACCELERATOR
CONTROLLER 1
2 06B0024 000 垫圈 WASHER 7
3 06B0003 000 垫圈 WASHER 7
4 00B0065 000 螺栓 BOLT 5
5 22A5043 000 支架 BRACKET 1
6 40C2654 000 柴油机 DIESEL ENGINE 1
7 06C7939 000 燃油管 FUEL HOSE 2
8 09C0232 000 卡箍 CLAMP 8
9 12C2179 001 球阀 BALL VALVE 1
10 00A5040 000 接头 JOINT 2
11 09C0579 000 管夹 CLAMP 2
12 00B0022 000 螺栓 BOLT 2
13 06B0086 000 垫圈 WASHER 2
14 06B0006 000 垫圈 WASHER 2
15 01B0401 000 螺栓 BOLT 6
16 06B0117 000 垫圈 WASHER 8
17 03A0616 000 螺钉 SCREW 4
18 00A4283 000 接头 CONNECTOR 3
19 06C7938 000 燃油管 FUEL HOSE 1
20 50C0053 000 柴油预滤器 FUEL PRE-FILTER 1
21 00D7482 000 支座 BRACKET 1
22 11A1893 000 垫圈 WASHER 4
23 35C0392 000 减震垫 CUSHION 2
24 03B0205 001 锁紧螺母 LOCKNUT 2
25 00B0223 000 螺栓 BOLT 2
26 00B0238 000 螺栓 BOLT 6
27 06B0007 000 垫圈 WASHER 6
28 00D7481 000 支座 BRACKET 1
29 00A4875 000 接头 CONNECTOR 1
30 05C4154 000 燃油管 FUEL HOSE 1
31 40C2655 000 风扇 FAN 1
