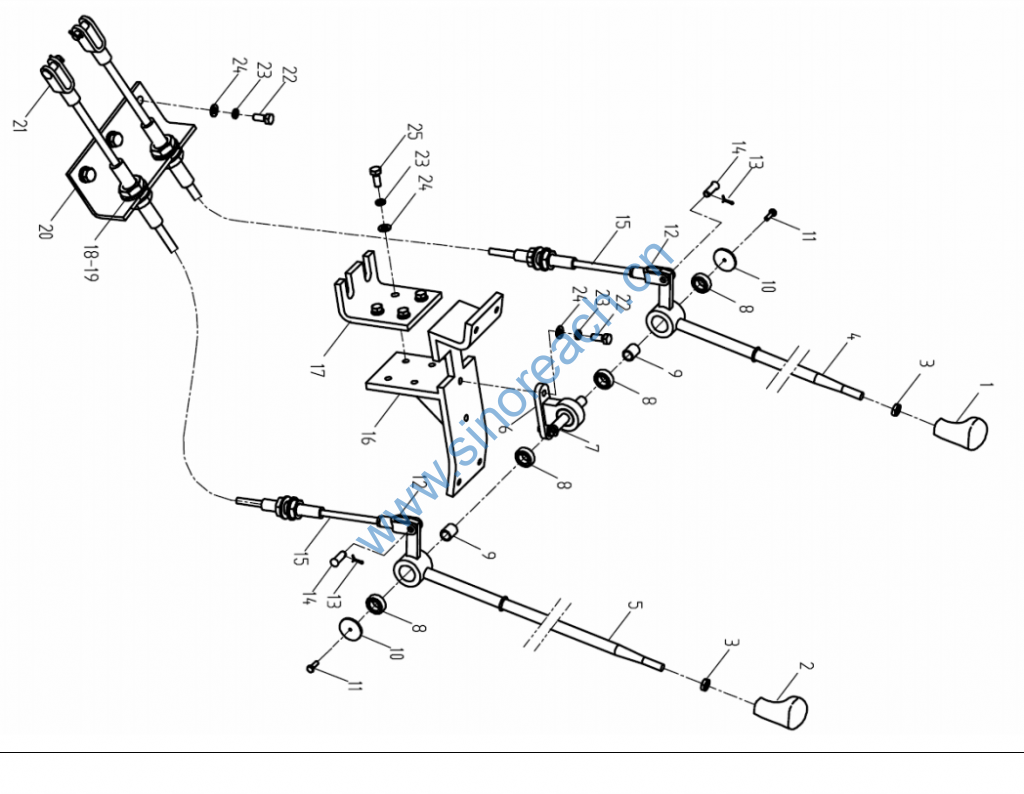

LW500F 操纵杆系 9360930 Control System

1 5004756 手柄球 Handle Ball 1 SBQ-01
2 5004757 手柄球 Handle Ball 1 SBQ-02
3 4303010 扁螺母 M12 Nut 2 GB6172-86
4 9360931 动臂操纵杆 Lever for Boom 1
5 9360934 转斗操纵杆 Lever for Tilt 1
6 9301870 固定座 Seat 1
7 9331986 轴 Shaft 1
8 4735018 深沟球轴承 6002-2RS Bearing 4 GB/T276-94
9 9332755 轴套 Bushing 2
10 9336560 挡圈 Washer 2
11 4005030 螺栓 M6X20 Bolt 2 GB5783-86
12 9300560 叉接头 York Joint 2
13 4501061 开口销 2.5X16 Pin 2 GB91-86
14 4506469 销轴 B10X35 Pin Shaft 2 GB882-86
15 9360942 软轴 Soft Shaft 2
16 9343692 支架 Platform 1
17 9352861 安装板 Plate 1
18 4316013 螺母 M18X1.5 Nut 8 GB808-88
19 4404017 垫圈 18 Washer 4 GB97.1-85
20 9314980 固定支板 Plate 1
21 9301878 叉接头 Clevis 2
22 4005053 螺栓 M10X25 Bolt 5 GB5783-86
23 4401008 垫圈 10 Washer 9 GB93-87
24 4404009 垫圈 10 Washer 7 GB97.1-85
25 4005054 螺栓 M10X30 Bolt 8 GB5783-86
