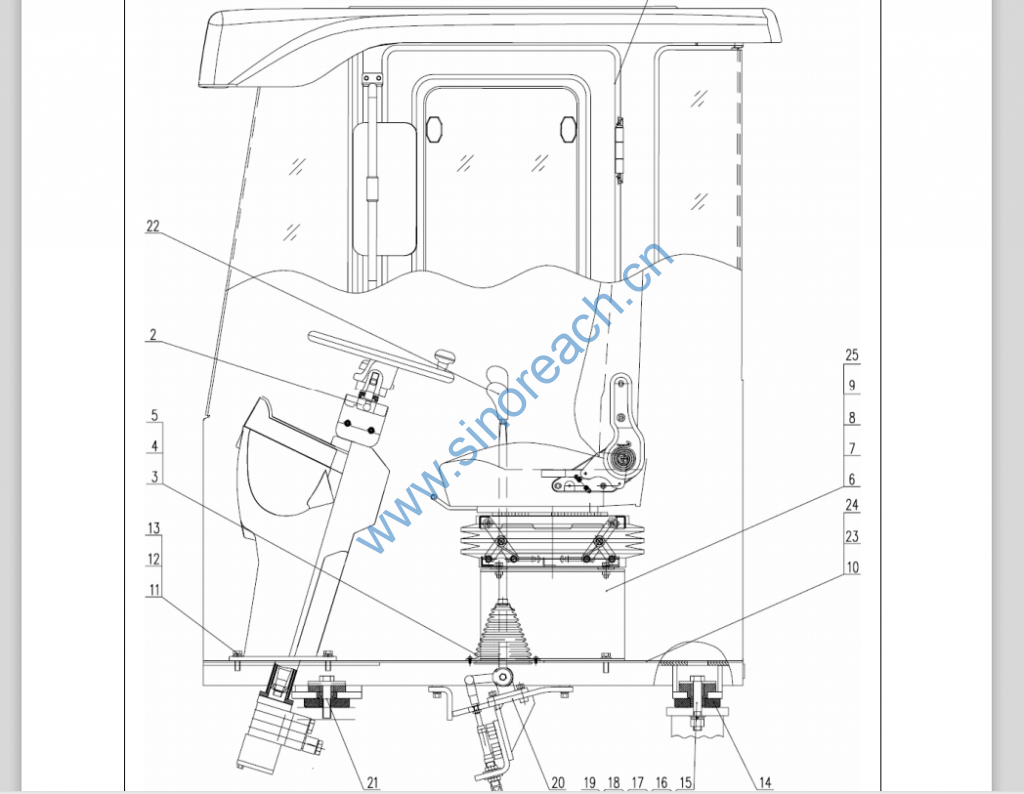

LW500F 驾驶室总成 9103286 Cab Assembly

1 9365226 驾驶室总成 Cab Assembly 1
2 5006096 仪表箱 Instrument Panel 1
3 9360795 橡胶套 Rubber Sleeve 2
4 4202066 螺钉 M5X12 Screw 4 GB67-85
5 4403003 垫圈 5 Washer 4 GB96-85
6 4005039 螺栓 M8X20 Bolt 6 GB5783-86
7 4001007 垫圈 8 Washer 6 GB96-85
8 4404008 垫圈 8 Washer 6 GB93-87
9 5006097 座椅 Seat 1
10 9365575 底板橡胶 Rubber Cushion 1
11 4405068 螺栓 M12X35 Bolt 8 GB5783-86
12 4401009 垫圈 12 Washer 8 GB93-87
13 4404010 垫圈 12 Washer 8 GB97.1-85
14 9357456 减震器组 Absorber Group 4
15 4004095 螺栓 M20X120 Bolt 2 GB5782-86
16 4401013 垫圈 20 Washer 4 GB93-87
17 4403010 垫圈 20 Washer 4 GB96-85
18 4338008 螺母 M20 Nut 2 GB6182-86
19 9365230 压板 Plate 4
20 9360930 操纵杆系 Joy Stick 1
21 4404092 螺栓 M20X90 Bolt 2 GB5782-86
22 9362218 三联操纵杆系 Control Lever 1
23 9369536 底板橡胶 Rubber Cushion 1
24 9369537 底板橡胶 Rubber Cushion 1 三联用
25 5006112 座椅 Seat 1
