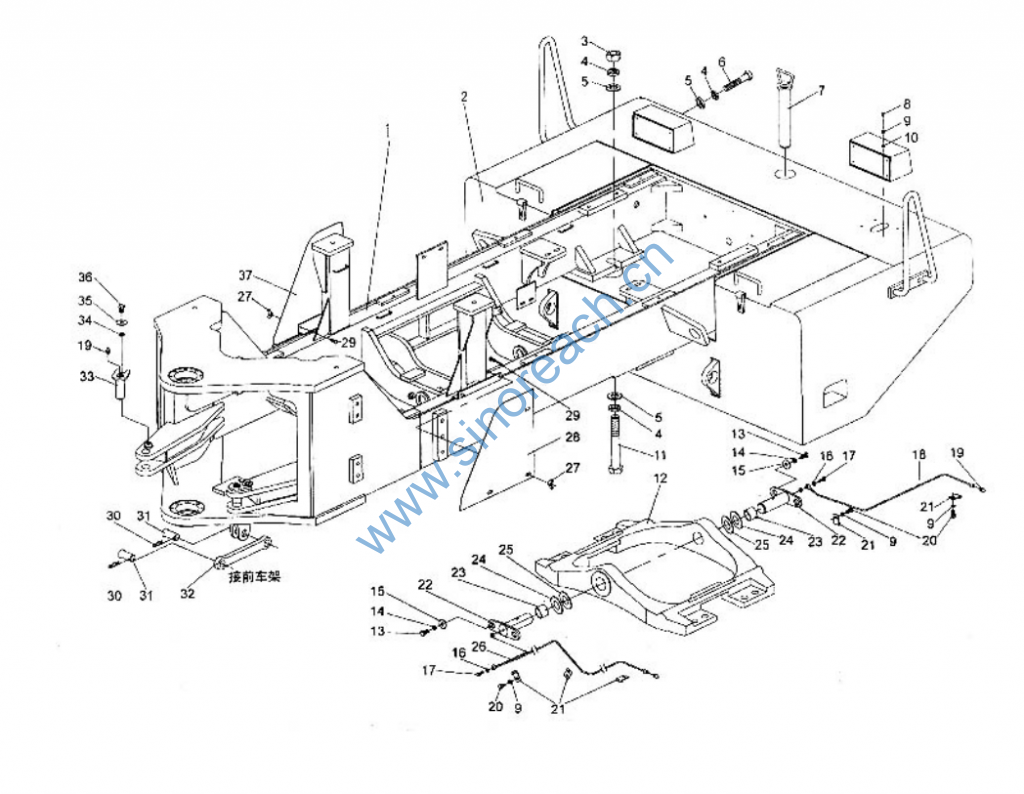

LW500F 后车架部分 Rear Chassis 9365635

1 9365635
9365636 后车架 Rear Chassis 1
1
配潍（玉）柴发动机
配上柴发动机
2 9352090 配重 Counterweight 1
3 4302012 螺母 M36X3 Nut 2 GB6171-86
4 4401019 垫圈 36 Washer 6 GB93-87
5 4404016 垫圈 36 Washer 6 GB97.1-85
6 4006182 螺栓 M36X3X300 Bolt 2 GB5785-86
7
8 4005040 螺栓 M8X20 Bolt 8 GB5783-86
9 4401007 垫圈 8 Washer 12 GB93-87
10 4404008 垫圈 8 Washer 9 GB97.1-85
11 4006180 螺栓 M36X3X260 Bolt 2 GB5785-86
12 9354899 付车架 Assistant Frame 1
13 4005294 螺栓 M14X25 Bolt 4 GB5783-86
14 4401010 垫圈 14 Washer 4 GB93-87
15 4403008 垫圈 14 Washer 4 GB96-85
16 9300764 垫片 Washer 4
17 9300763 通油螺栓 Bolt 2
18 9365289 注油管 Tube 1
19 4905002 油杯 M10X1 Grease Nipple 4 JB/T7940.1-1995
20 4005039 螺栓 M8X16 Bolt 6 GB5783-86
21 5005514 管夹 Clamp 5
22 9309766 付车架销 Pin 2
23 9310093 套 Sleeve 2
24 9300608 垫片 Washer 2
25 9351708 调整垫片 Washer 2
26 9365287 注油管 Tube 1

27 4315007 螺母 M10 Nut 6 GB62-88
28 9365642 左侧板 Left Side Cover 1
29 4005053 螺栓 M10X25 Bolt 6 GB5783-86
30 4506679 销 B32X70 Pin 2 GB882-86
31 9300601 弹簧销 Spring Pin 2
32 9360859 连杆 Link 1
33 9351395 转向销 Pin 2
34 4403009 垫圈 16 Washer 2 GB96-85
35 4401011 垫圈 16 Washer 2 GB93-85
36 4005095 螺栓 M16X25 Bolt 2 GB5783-86
37 9365641 右侧板 Right Side Cover 1
