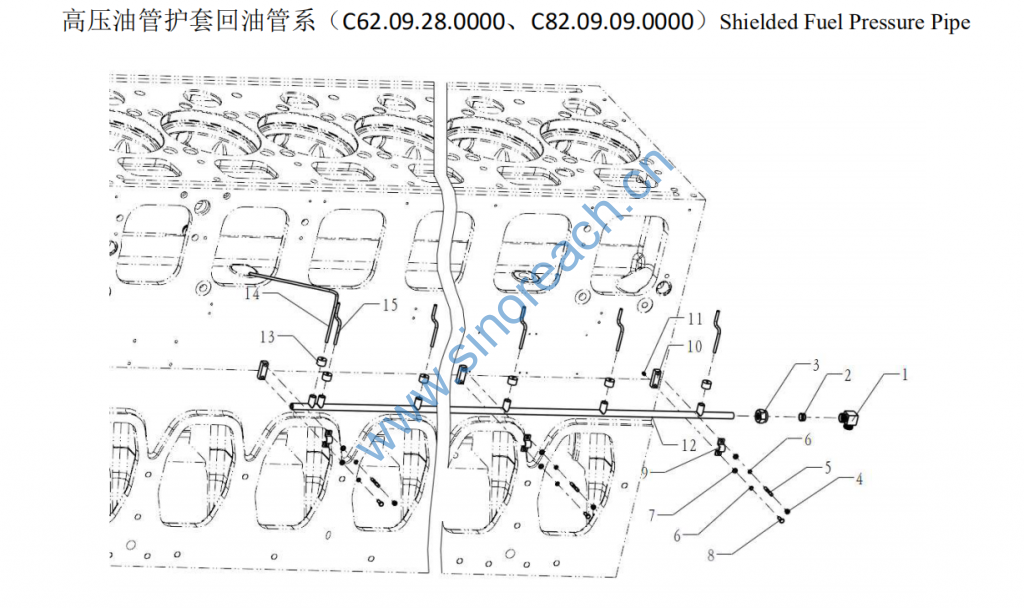

C62.09.28.0000、C82.09.09.0000 Shielded Fuel Pressure Pipe

1 DIN3905-L16 直角接头体 Connecting tube 1 1 1 1
2 DIN3861-AL16 卡套 Sleeve chuck 2 2 2 2
3 DIN3870-AL16 连接螺母 Connecting nut 2 2 2 2
4 90012210020 六角螺母 Hex. nut 3 3 4 4 GB/T6170-M6
5 90031540006 双头螺柱 Stud bolt 3 3 4 4 GB/T900-M6×25
6 90014350003 标准型弹垫 Standar spring washer 6 6 8 8 GB/T93-6
7 90034050003 平垫圈(A 级) Flat washer (A) 6 6 8 8 GB/T97.1-6
8 90011270068 六角头螺栓 Hex. nut 3 3 4 4 GB/T5783-M6×16
9 620012060018 管夹 Pipe clip 3 3 4 4
10 620009280102 板 Plate 3 3 4 4
11 90033090005 开槽平端螺 Slotted set screw 1 1 1 1 GB/T73-M6×8
12
C62.09.09.1000 回油管结合
组
Fuel return pipe ass. 1 1
C82.09.09.1000 回油管结合
组
Fuel return pipe ass. 1 1
13 C82.09.09.0003 橡皮套 Rubber sleeve 6 6 8 8
14 C62.09.09.0002 回油管 Fuel return pipe 1 1 1 1
15 C62.09.29.0001 回油管 Fuel return pipe 5 5 7 7
