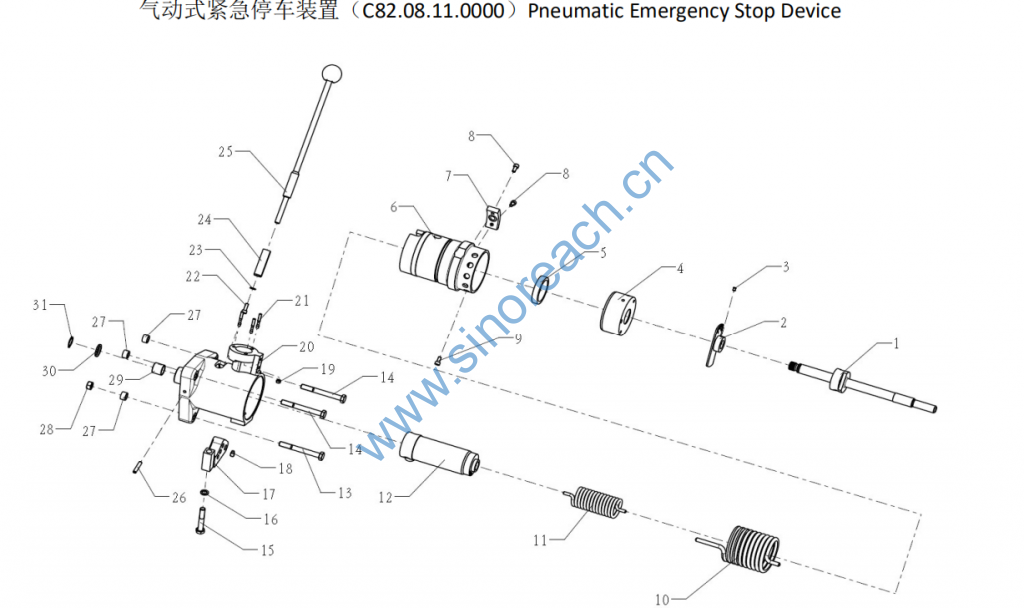

C82.08.11.0000 Pneumatic Emergency Stop Device

1 C82.08.11.0002 轴 Shaft 1 1 1 1
2 C82.08.11.3000 刻度板装置 Scale plate ass. 1 1 1 1
3 90033070003 螺钉 Screw 1 1 1 1 GB/T71-M5×8
4 C82.08.11.0003 盖 Cover 1 1 1 1
5 C82.08.11.0001 衬套 Bushing block 1 1 1 1
6 C82.08.11.0004 套筒 Sleeve 1 1 1 1
7 C82.08.11.4000 支柱装置 Support assembly 1 1 1 1
8 90033040007 内六角头螺钉 Hex. socket head cap
screw
2 2 2 2 GB/T70.1-M6×12
9 90013050050 螺钉 Screw 1 1 1 1 GB/T70.1-M6×10
10 C82.08.11.0010 弹簧 Spring 1 1 1 1
11 C82.08.11.0009 弹簧 Spring 1 1 1 1
12 C82.08.11.2000 弹簧套筒装置 Spring sleeve device 1 1 1 1
13 90003802576 螺栓 Bolt 1 1 1 1 GB/T5782-M10×90
14 90003800543 螺栓 Bolt 2 2 2 2 GB/T5782-M10×50
15 90031160025 螺栓 Bolt 1 1 1 1 GB/T5782-M10×60

16 90034180004 弹簧垫圈 Spring washer 1 1 1 1 GB/T859-10
17 C82.08.11.0012 支架 Bracket
18 C82.08.11.0005 螺尾销 Threaded pin 1 1 1 1
19 90012210018 六角螺母 Nut 3 3 3 3 GB/T6170-M5
20 C82.08.11.0011 外壳 Case 1 1 1 1
21 90031510001 双头螺柱 Stud bolt 3 3 3 3 GB/T897-M5×25
22 90013050006 螺钉 Screw 1 1 1 1 GB/T70.1-M6×16
23 90034060001 垫圈 Washer 1 1 1 1 GB/T97.2-6
24 90035100029 弹性圆柱销 Elastic cylindrical pin 1 1 1 1 GB/T879.1-16×60
25 C82.08.11.1000 手柄装置 Handle device 1 1 1 1
26 90035110002 弹性圆柱销 Elastic cylindrical pin 1 1 1 1 GB/T879.2-6×32
27 C82.08.11.0006 套筒 Sleeve 3 3 3 3
28 90003871305 六角螺母 Nut 2 2 2 2 GB/T6170-M10
29 C82.08.11.0007 轴承 Bearing 1 1 1 1
30 C82.08.11.0008 挡圈 Circlip 1 1 1 1
31 90034600001 挡圈 Circlip 1 1 1 1 GB/T894.2-20
