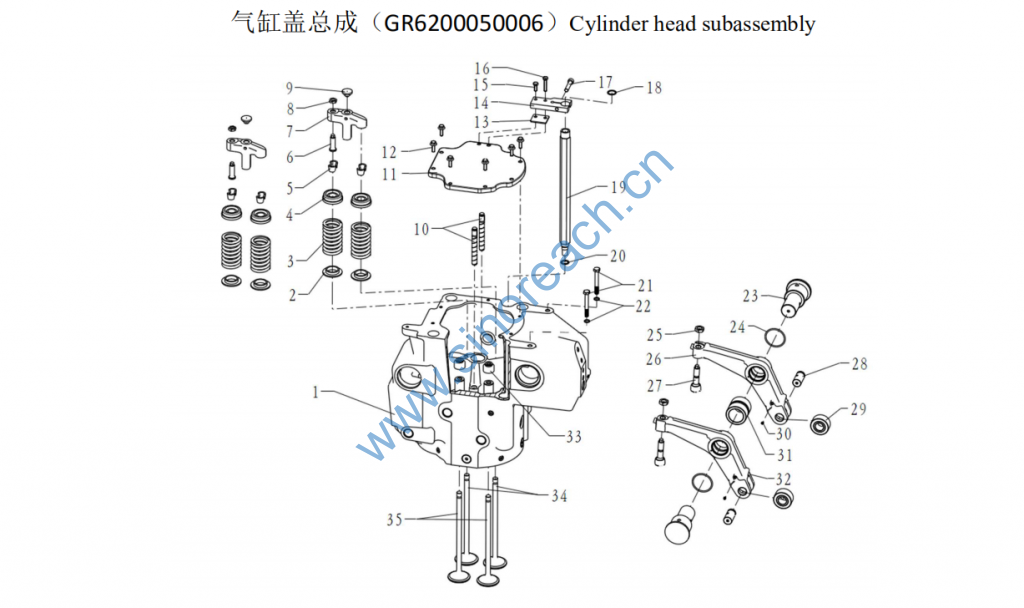

GR6200050006 Cylinder head subassembly

1 620005060093 气缸盖分总成 Cylinder head ass. 6 6 8 8
2 620005010030 气门弹簧下垫 Plate-in 24 24 32 32
3 620005010018 气门弹簧 Spring-in 24 24 32 32
4 620005010017 气门旋转机构 Valve-rotator 24 24 32 32
5 620005010016 气门锁夹 Valve lock clamp 24 24 32 32
6 620005010026 调节螺钉 Bolt 12 12 16 16
7 620005010038 气门桥 Valve bridge 12 12 16 16
8 620005010027 调节螺母 Adjust-nut 12 12 16 16
9 620005010037 气门桥镶块 Insert-bridge 12 12 16 16
10 620005010042 气门桥轴 Valve bridge shaft 12 12 16 16
11 620005010044 气缸盖扪板结合组 Blanking plate
assembly
6 6 8 8
12 90003802424 六角头螺栓 Hex. head bolt 36 36 48 48 GB/T5783-M8×25
13 C62.05.00.0007 隔热垫片 Heat insulated
washer 6 6 8 8
14 C62.05.00.0006 固定板 Fixed plate 6 6 8 8

15 90031170021 六角头螺栓 Hex. head bolt 6 6 8 8 GB/T5783-M8×20
16 90011270079 六角头螺栓 Hex. head bolt 6 6 8 8 GB/T5783-M8×40
17 90033040023 内六角头螺钉 Socket head cap
screw
6 6 8 8
18 DIN7603-A21×26 密封垫片 Sealing washer 6 6 8 8
19 620005010040 接长六角梗 Extended stem 6 6 8 8
20 DIN7603-A18×24 密封垫片 Sealing washer 6 6 8 8
21 620005010074 紧定螺钉 Bolt-rock-loc 12 12 16 16
22 DIN7603-A12×16 密封垫片 Sealing washer 12 12 16 16
23 620005010041 摇臂轴 Rocker-shaft 12 12 16 16
24 620005010073 O 型密封圈 O-ring 12 12 16 16
25 620005010036 调节螺母 NUT-M16 12 12 16 16
26 620005010057 进气门摇臂分组件 Rocker-ass.-int 6 6 8 8
27 620005010034 顶柱球面结合组 E-foot 12 12 16 16
28 620005010024 滚轮轴 Roller-shaft 12 12 16 16

29 620005010023 滚轮 Roller 12 12 18 18
30 90033090004 开槽平端紧定螺钉 Plug 12 12 18 18 GB/T73-M6×6
31 620005010046 摇臂轴隔套 Bushing 12 12 18 18
32 620005010058 排气门摇臂分组件 Exhaust-rocker-ass. 6 6 8 8
33 620005010032 气门导杆密封套 Valve-stem-seal 24 24 32 32
34 620005010014 进气门 Exhaust valve 12 12 18 18
35 620005010015 排气门 Intake valve 12 12 18 18
