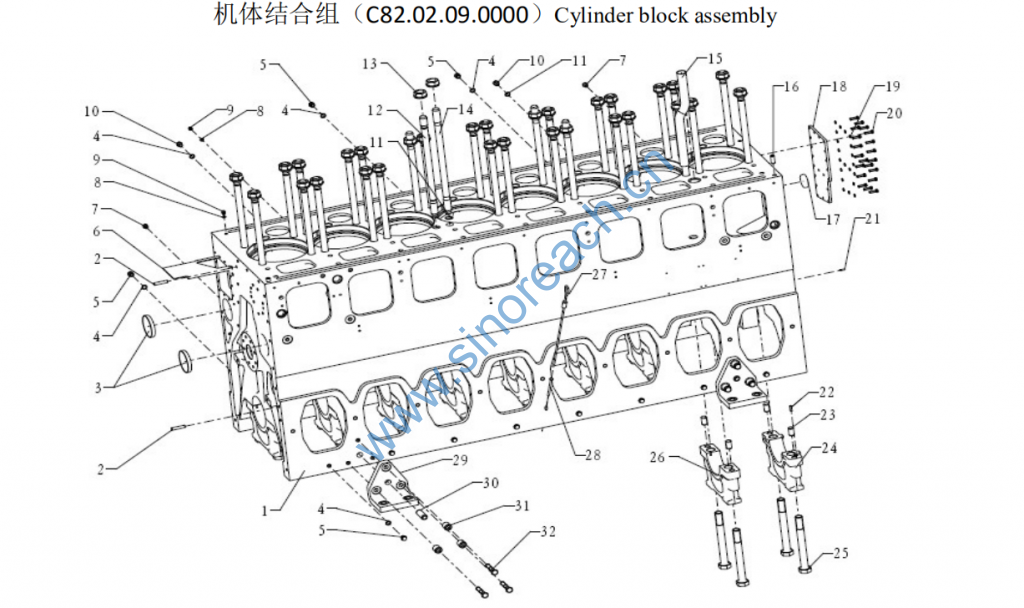

C82.02.09.0000 Cylinder block assembly

1 C82.02.09.1001 机体 Cylinder block 1 1
2 90035050007 圆柱销 Cylindrical pin 2 2 GB/T119.2-12×60
3 C62.02.01.1007 扪盖 Banking cover 2 2
4 DIN7603-A17×21 密封垫圈 Sealing washer 13 13
5 LS-AM16×1.5 六角螺塞 Hex. screw plug 11 11
6 C82.02.01.0003 盖板 Cover plate 1 1
7 C62.02.01.0012 六角头螺钉 Hex. head screw 2 2
8 DIN7603-A10×14 密封垫圈 Sealing-washer 2 2
9 LS-AM10×1 六角螺塞 Hex. screw plug 2 2
10 C82.13.06.0006 螺塞 Screw plug 2 2
11 9003761007 O 型密封圈 O-ring 32 32 GB/T3452.1-26.5×2.65-G
12 C62.02.01.0001 双头螺柱 Stud bolt 28 28
13 C62.02.01.0002 气缸盖螺母 Cylinder head nut 32 32
14 C62.02.01.0010 双头螺柱 Stud bolt 4 4
15 C62.02.01.2000 油管结合组 Oil pipe assembly 1 1
16 90035070011 内螺纹圆柱销 Cylindrical pin 2 2 GB/T120.2-16×40-A

17 90003989288 碗形塞 65/14 Bowl plug 65/14 1 1 08F-S-GB/T710
18 C62.02.01.0005 盖板 Cover plate 1 1
19 90034180003 弹簧垫圈 Spring washer 20 20 GB/T859-8
20 90031170025 六角头螺栓 Hex. head bolt 20 20 GB/T5783-M8×30
21 90035100012 弹性圆柱销 Elastic cylindrical pin 1 1 GB/T879-5×20
22 90035100022 弹性圆柱销 Elastic cylindrical pin 1 1 GB/T879-8×20
23 C62.02.01.1005 圆柱销 20×40 Cylindrical pin 20×40 18 18
24 C62.02.01.1003 推力轴承盖 Thrust bearing cap 1 1
25 C62.02.01.1004 主轴承盖螺栓 Main bearing cover bolt 18 18
26 C62.02.01.1002 轴承盖 bearing cap 8 8
27 C82.02.01.2000 油尺结合组 Oil pipe ass. 1 1
28 C62.02.01.1006 导管 Guide 1 1
29 C82.02.01.1012 机脚 Frame base 4 4
30 C62.02.01.1008 内螺纹圆柱销 cylindrical pin 4 4
31 C62.02.01.1009 垫圈 Washer 12 12
