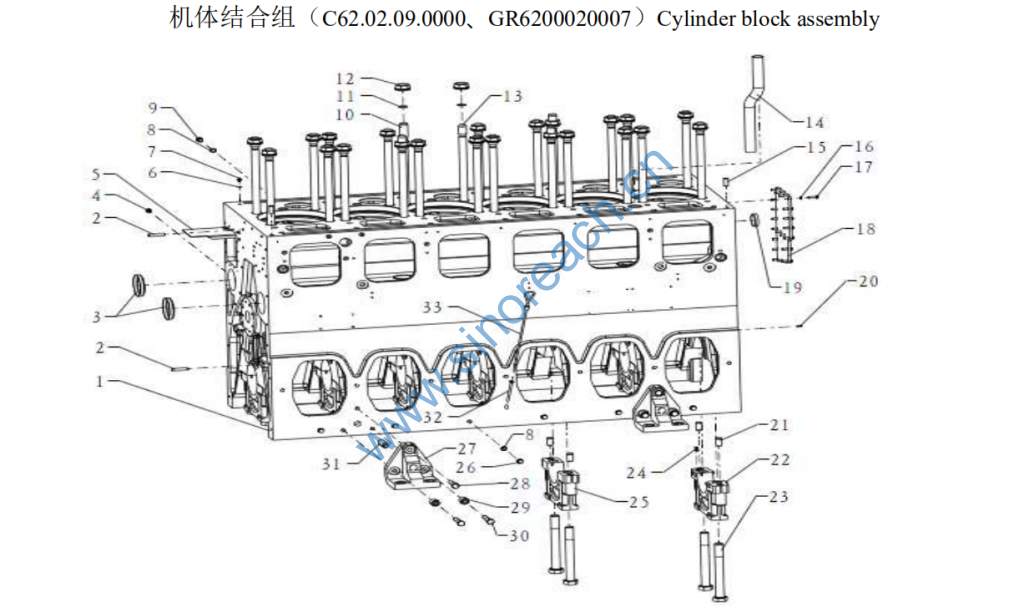

C62.02.09.0000 GR6200020007 Cylinder block assembly

1 C62.02.09.1001 机体 Cylinder block 1 1
2 90035050007 圆柱销 Cylindrical pin 2 2 GB/T119.2-12×60
3 C62.02.01.1007 扪盖 Banking cover 2 2
4 C62.02.01.0012 六角头螺钉 Hex. head screw 2 2
5 C62.02.01.0003 盖板 Cover plate 1 1
6 DIN7603-A10×14 密封垫圈 Sealing-washer 2 2
7 LS-AM10×1 六角螺塞 Hex. screw plug 2 2
8 DIN7603-A17×21 密封垫圈 Sealing washer 11 11
9 LS-AM16×1.5 六角螺塞 Hex. screw plug 9 9
10
C62.02.01.0010 双头螺柱 Stud bolt 4 4
620002010030 双头螺柱 Stud bolt 4 4
11 9003761007 O 型密封圈 O-ring 24 24 GB/T3452.1-26.5×2.65-G
12 C62.02.01.0002 气缸盖螺母 Cylinder head nut 24 24
13
C62.02.01.0001 双头螺柱 Stud bolt 20 20
620002010018 双头螺柱 Stud bolt 20 20
14 C62.02.01.2000 油管结合组 Oil pipe assembly 1 1
15 90035070011 内螺纹圆柱销 Cylindrical pin 2 2 GB/T120.2-16×40-A

16 90034180003 弹簧垫圈 Spring washer 20 20 GB/T859-8
17 90031170025 六角头螺栓 Hexa. head bolt 20 20 GB/T5783-M8×30
18 C62.02.01.0005 盖板 Cover plate 1 1
19 90003989288 碗形塞 65/14 Bowl plug 65/14 1 1 08F-S-GB/T710
20 90035100012 弹性圆柱销 Elastic cylindrical pin 1 1 GB/T879-5×20
21 C62.02.01.1005 圆柱销 20×40 Cylindrical pin 20×40 14 14
22 C62.02.01.1003 推力轴承盖 Thrust bearing cap 1 1
23 C62.02.01.1004 主轴承盖螺栓 Main bearing cover bolt 14 14
24 90035100022 弹性圆柱销 Elastic cylindrical pin 1 1 GB/T879-8×20
25 C62.02.01.1002 轴承盖 bearing cap 6 6
26 LS-AM16×1.5 六角螺塞 Hex. screw plug 9 9
27 C62.02.01.1100 机脚 Frame base 4 4
28 90031160059 六角头螺栓 Hex. bolt 4 4 GB/T5782-M16×70
29 C62.02.01.1009 垫圈 Washer 8 8
30 90031160060 六角头螺栓 Hexagonal bolt 8 8 GB/T5782-M16×80
31 C62.02.01.1008 内螺纹圆柱销 Cylindrical pin 4 4

32 C62.02.01.1006 导管 Guide 1 1
33 C86.02.18.3000 油尺结合组 Oil pipe assembly 1 1
