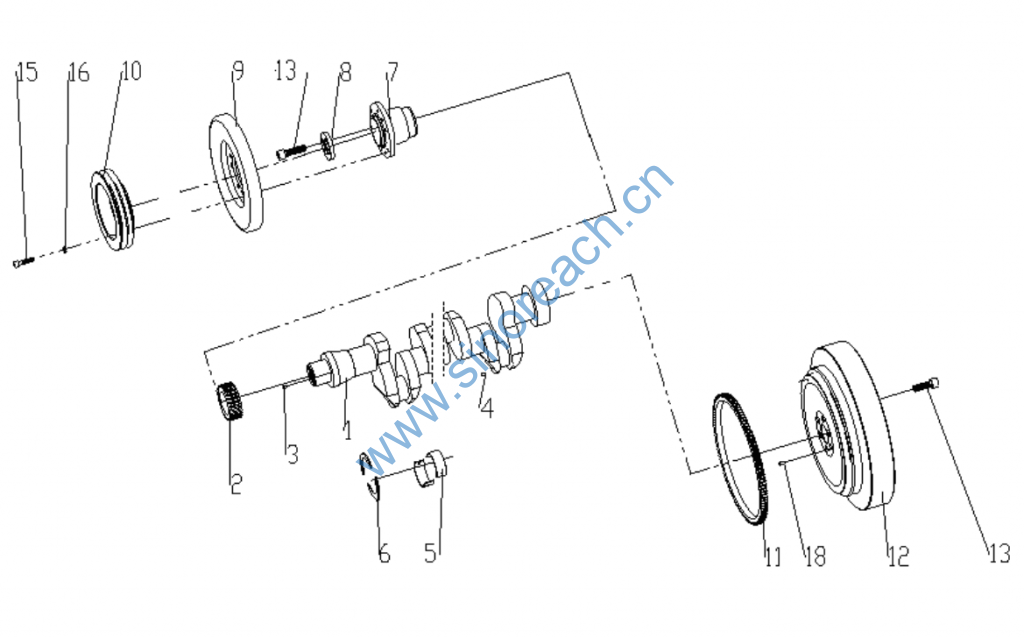

226B/WP6 曲轴总成 CRANKSHAFT ASSEMBLY

1 13032128 1 1 曲轴 CRANKSHAFT
2 13022334 1 1 曲轴正时齿轮 TIMING GEAR
3 1115416 1 1 Q5280414 弹性圆柱销 STRAIGHT PIN
4 12151364 6 6 堵塞 PLUG
5
13034908 6 6 主轴瓦上瓦 MAIN BEARING
13034916 6 6 主轴瓦下瓦 MAIN BEARING
13034886 1 1 止推主轴瓦上瓦 THRUST RING
13034887 1 1 止推主轴瓦下瓦 THRUST RING
6
12273935 1 1 上止推片 THRUST RING
12273934 1 1 下止推片 THRUST RING
7 12190647 1 1 轮毂 HUB
8 12160534 1 1 垫片 PLAIN WASHER
9 12273121 1 1 减震器 VIBRATION DAMPER
10 13032251 1 1 曲轴皮带轮 V-GROOVED PULLEY
11 13023510 1 1 齿圈 GEAR RIM
12 13035407 1 1 飞轮 FLYWHEEL
13 1110847 6 6 N1650-12GB70 内六角圆柱头螺钉 CHEESE HEAD SCREW 15 1110673 6 6 M1040 内六角圆柱头螺钉 CHEESE HEAD SCREW
16 1178365 6 6 Q40310 弹簧垫圈 SPRING LOCK WASHER
18 1125638 1 1 Q5280610 弹性圆柱销 STRAIGHT PIN
