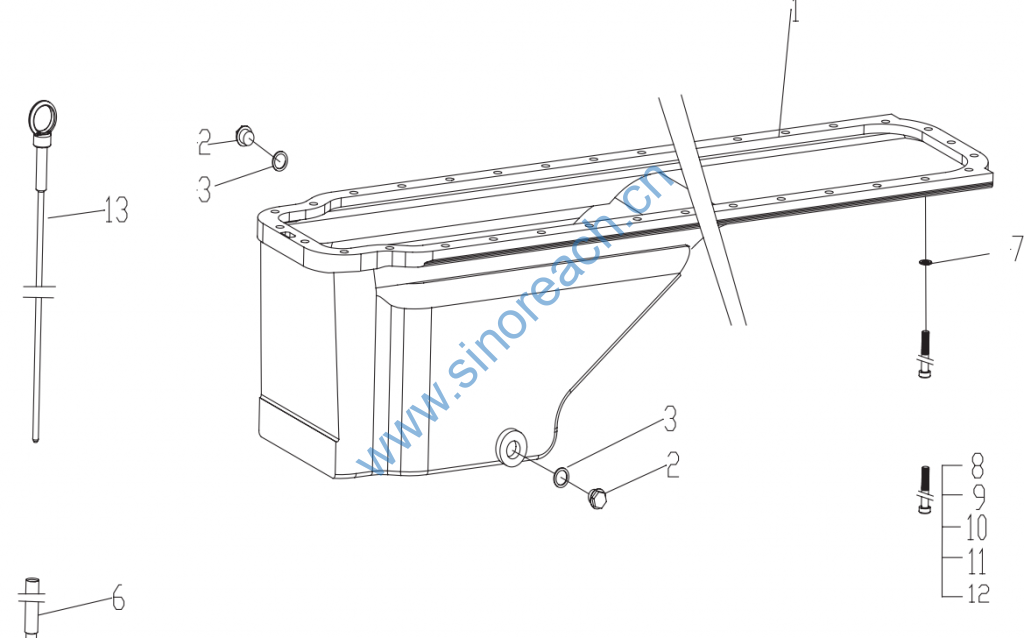

226B/WP6 油底壳总成  OIL PAN ASSEMBLY

1 13036094 1 1 油底壳 OIL PAN
2 612600150302 1 1 磁性螺塞 SCREW PLUG
3 612600080200 2 2 A21*26-Cu DIN7603 密封垫圈 SEALING RING
6 12190556 1 1 油尺管 TUBE
7 1177981 33 33 Q40308 弹簧垫圈 SPRING LOCK WASHER
8 13024226 — — Q218B0845 内六角圆柱头螺钉 CHEESE HEAD SCREW
9 13024227 — — Q218B0835 内六角圆柱头螺钉 CHEESE HEAD SCREW
10 13022514 — — Q218B0830 内六角圆柱头螺钉 CHEESE HEAD SCREW
11 1112339 26 26 Q150B0812 六角头螺栓 HEXAGON BOLT
12 13024620 26 26 Q218B0840 内六角圆柱头螺钉 CHEESE HEAD SCREW
13 12270457 1 1 油标尺 DIPSTICK
