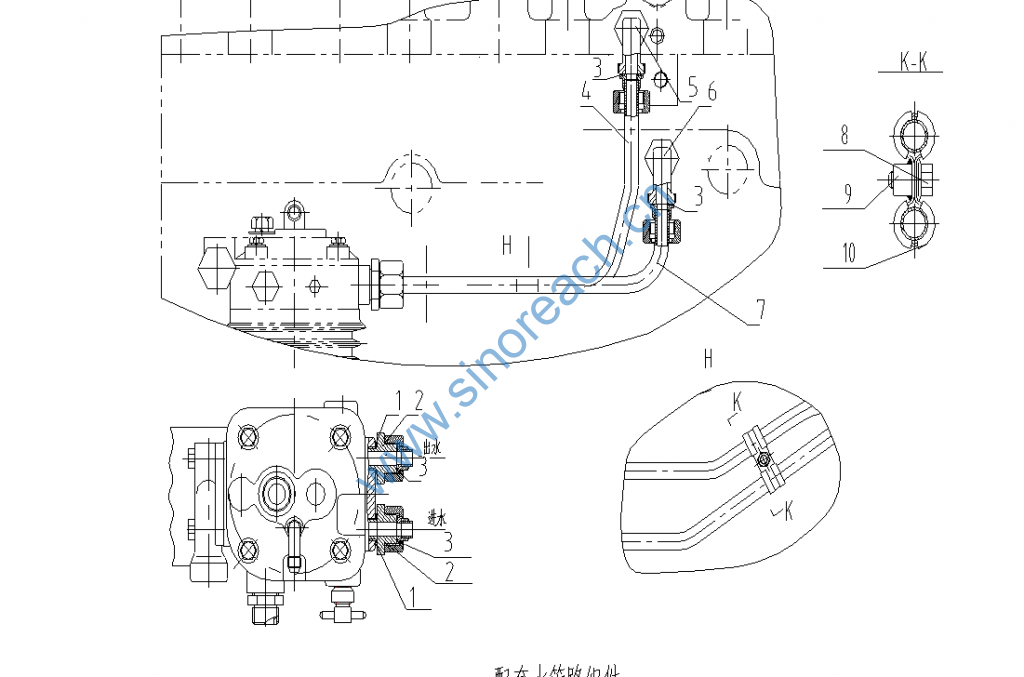

S00002996 配套水管路组件 COOLANT LINES FOR ENGINE APPLICATION GROUP

1 B00001548 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-16
2 D24B-106-60 管接头 JOINT ELBOW 2
3 S00003174 矩形橡胶密封圈 RECTANGLE RUBBER SEALING RING 4
4 D24B-001-80 空压机进水管部件 WATER INLET PIPE ASSY, AIR COMPRESSOR 1
5 D24B-104-53 弯管接头 JOINT ELBOW 1
6 D24B-104-55 弯管接头 JOINT ELBOW 1
7 D24B-002-83 空压机出水管部件 WATER OUTLET PIPE ASSY, AIR COMPRESSOR 1
8 B00002111 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 1 Q/SC622-M6*12
9 D24B-003-30 内压片焊接部件 INSIDE CLAMP ASSY (WELDED) 1
10 D24B-119-30 夹箍 CLAMP 1
