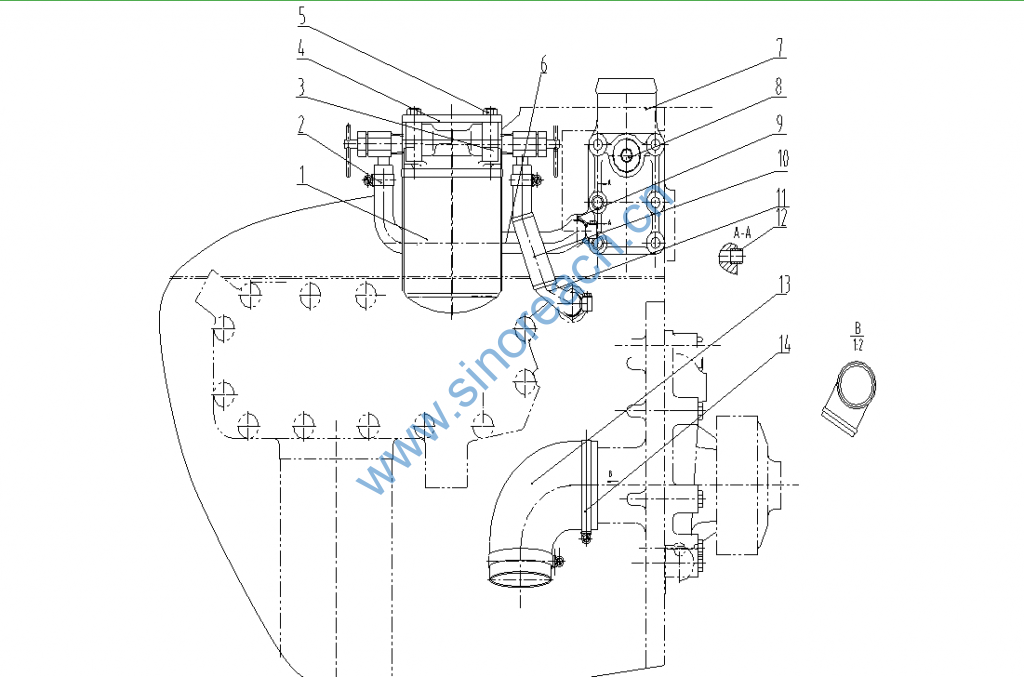

D24A-000-58 水管路及水滤器组件 COOLANT PIPING AND CORROSION RESISTOR GROUP

1 D24A-005-30 “DCA4”水滤器部件 DCA4 WATER FILTER ASSY 1

2 B00001563 喉箍 CLAMP 4 Q/SC1302-16~25

3 D24A-006-01 水滤器盖部件 BASE ASSY, WATER FILTER 1

4 D24A-112-42 水滤器固定板 MOUNTING PLATE, WATER FILTER 1

5 B00002139 六角法兰面螺栓 HEX HEAD BOLT 4 Q/SC622-M8*30

6 D24A-116-34 水滤器进水胶管 WATER FILTER INLET HOSE 1

7 D24A-110-30A 出水管 WATER  OULET TUBE 1

8 D02A-164-01 内六角螺塞(Z1/2) PLUG 1

9 D24A-115-02 直管接头 JOINT 2

10 D24A-135-02 护套弹簧 SPRING 1

11 D24A-116-34 水滤器连接接管 JOINT, WATER FILTER 2

12 D22-105-01 套筒销 ELASTIC PIN 2

13 D24A-107-02A 橡胶进水弯管 WATER INLET ELBOW 1

14 B00001575 喉箍 CLAMP 2 Q/SC1302-52~76
