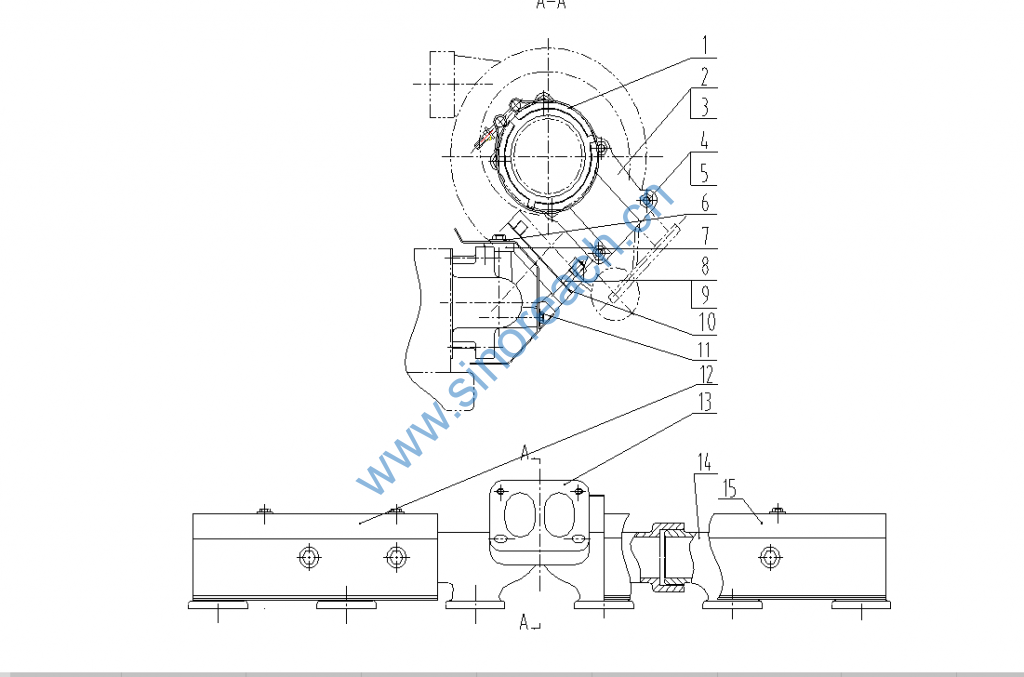

D13-000-37 排气管组件 EXHAUST LINES GROUP
D13-000-37 排气管组件 EXHAUST LINES GROUP
1 D13-001-01 夹箍部件 CLAMP 1
2 D13-301-01 涡轮出口连接壳体 CONNECTING HOUSING, OUTLET PIPE-TURBINE 1
3 D13-302-01 涡轮出口垫片 GASKET, OUTLET-TURBINE 1
4 D13-303-01 双头螺栓 STUD 6
5 B00000793 I型六角螺母 HEXAGON NUT (TYPE 1) 6 GB/T6170-M8-Y
6 D13-318-01 隔热板螺栓 BOLT 4
7 D00-187-02 垫块 SPACER 4
8 D13-103-01 双头螺栓 STUD 4
9 D13-304-01 增压器接口螺母 NUT, FLANGE-TURBOCHARGER 4
10 D13-102-30B 涡轮进口垫片 GASKET, INLET-TURBINE 1
11 D13-318-02 隔热板螺栓 BOLT 4
12 D13-321-01 隔热板(1-3) HEAT SHIELD PLATE 1
13 D13-101-40 排气管(1-4) EXHAUST MANIFOLD 1
14 D13-101-41 排气管(5-6) EXHAUST MANIFOLD 1
15 D13-322-01 隔热板(4-6) HEAT SHIELD PLATE 1
