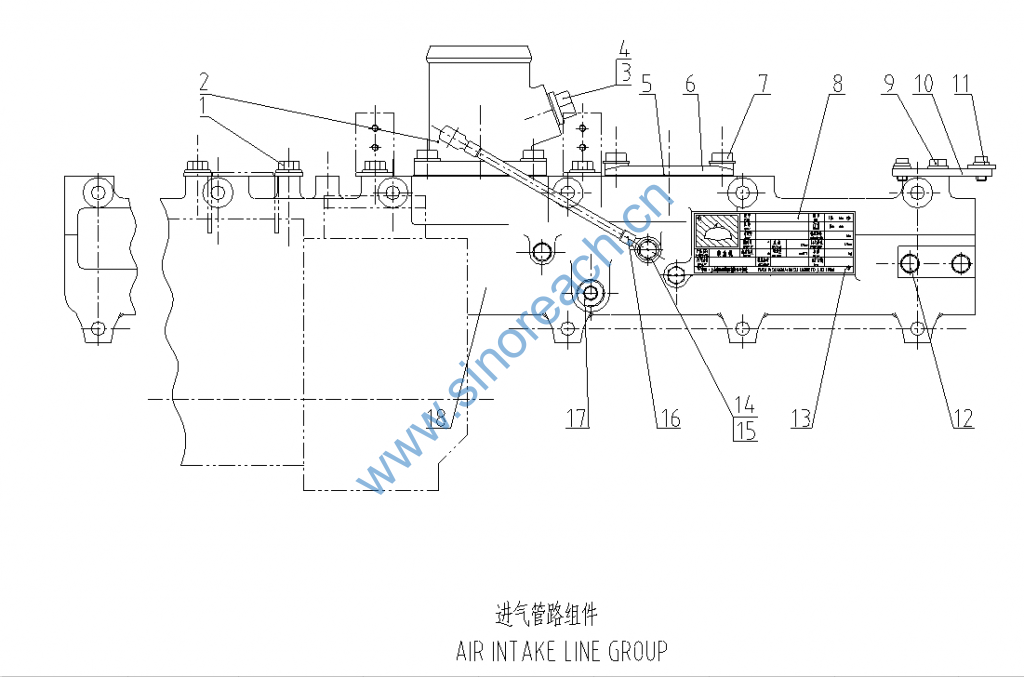

S00000871 进气管路组件 AIR INTAKE LINE GROUP

1 B00002132 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 6 Q/SC622-M8*16

2 D12-310-01 进气接管 ADAPTER, AIR INTAKE PIPE 1

3 B00001729 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M20*1.5

4 B00001836 铜垫圈 COPPER WASHER 1 Q/SC598-20*28

5 D12-308-01 进气口垫片 GASKET, AIR INTAKE PIPE 2

6 D12-305-01 盖板 COVER 1

7 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 8 Q/SC622-M8*25

8 D12-309-01B 铭牌 NAMEPLATE 1

9 B00002134 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*20

10 D12-306-01 支架 BRACKET 1

11 B00002114 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M6*16

12 B00002004 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M10*35

13 B00000958 标牌铆钉 NAMEPLATE RIVET 4 GB/T827-2.5*6-L3

14 B00002177 铰接螺栓 BANJO BOLT 2 Q/SC642.1-01-M10*1

15 B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER 4 Q/SC1294-10

16 D12-002-30 限烟器软管部件 HOSE ASSY, AIR/FUEL RATIO CONTROL 1

17 D02A-164-01 内六角螺塞(Z1/2) PLUG 1

18 D12-001-36A 进气管部件 AIR INTAKE PIPE ASSY 1
