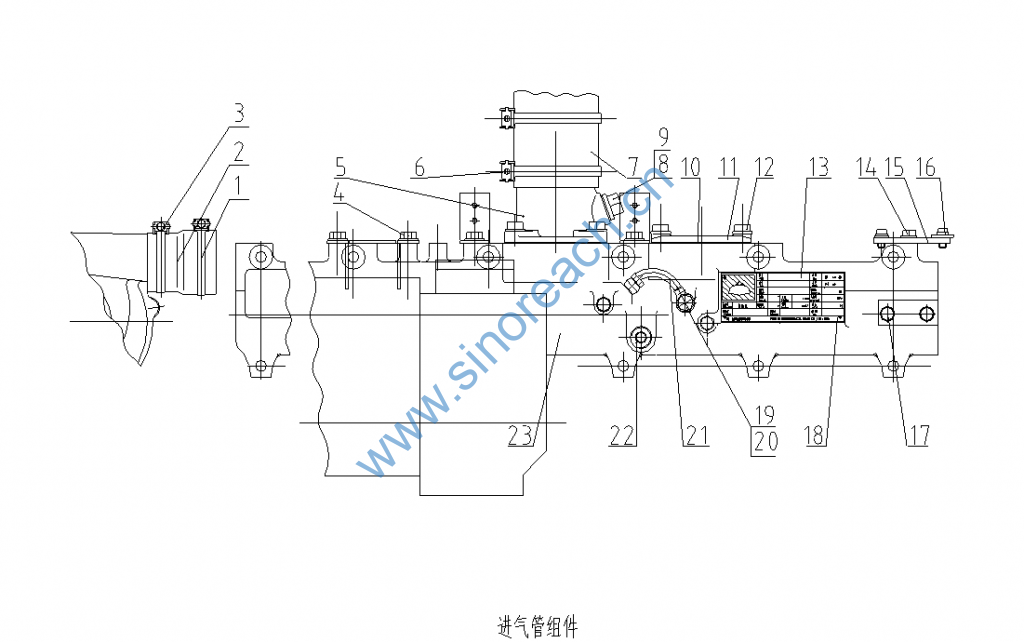

D12-000-184 进气管组件 AIR INTAKE SYSTEM GROUP

1 B00001542 弹簧卡箍 SPRING CLAMP 1 Q/SC1092-85
2 D12-311-01A 橡胶连接管 AIR INTAKE HOSE 1
3 B00001539 弹簧卡箍 SPRING CLAMP 1 Q/SC1092-70
4 D02B-300-01 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 6
5 D12-310-01 进气接管 ADAPTER, AIR INTAKE PIPE 1
6 B00001543 弹簧卡箍 SPRING CLAMP 2 Q/SC1092-90
7 D12B-105-01A 橡胶连接胶管 AIR INTAKE HOSE 1
8 B00001729 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M201.5 9 B00001836 铜垫圈 COPPER WASHER 1 Q/SC598-2028
10 D12-308-01 进气口垫片 GASKET, AIR INTAKE PIPE 1
11 D12-305-01 盖板 COVER 1
12 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 8 Q/SC622-M825 13 D12-309-01B 铭牌 NAMEPLATE 1 14 B00002134 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M820
15 D12-306-10 支架 BRACKET 1
16 B00002114 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M616 17 B00002004 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M1035
18 B00000958 标牌铆钉 NAMEPLATE RIVET 4 GB/T827-2.56-L3 19 B00002177 铰接螺栓 BANJO BOLT 2 Q/SC642.1-01-M101
20 B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER 4 Q/SC1294-10
21 D12-002-32 限烟器软管部件 HOSE ASSY, AIR/FUEL RATIO CONTROL 1
22 D02A-164-01 内六角螺塞(Z1/2) PLUG 1
23 D12-001-36A 进气管部件 AIR INTAKE PIPE ASSY 1
