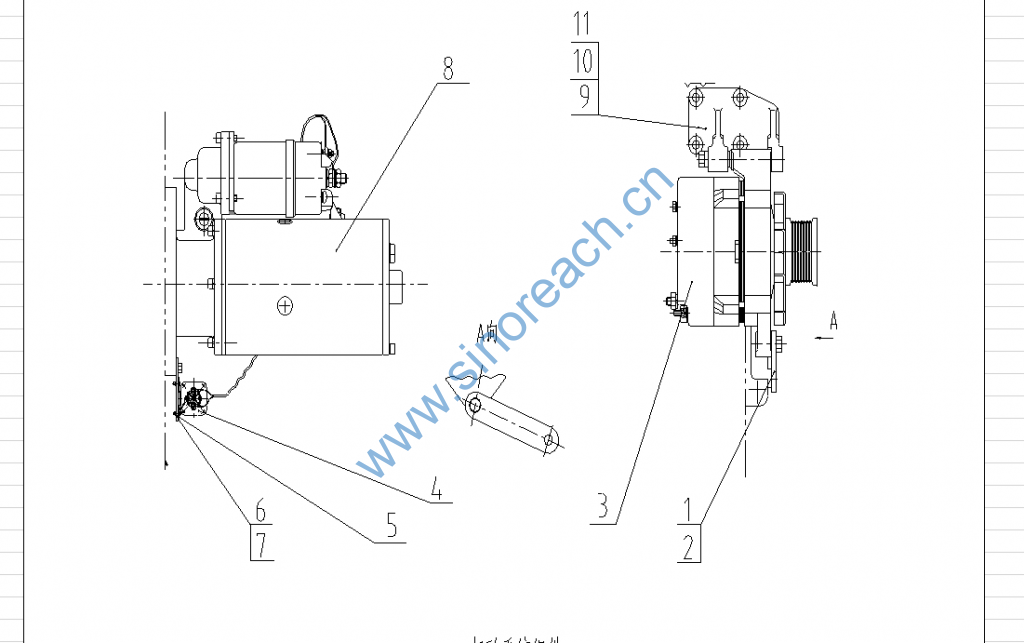

D11-000-38 起动系统组件 STARTING SYSTEM GROUP

1 D11-105-30A 撑条 BRACKET 1
2 B00002001 六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP 1 Q/SC622-M1030 3 D11-102-02 整体式交流发电机 ALTERNATOR 1 4 D11-116-01A 起动继电器 STARTING RELAY 1 5 D11-115-02 起动继电器支架 BRACKET STARTING RELAY 1 6 B00002118 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M620
7 B00000843 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M6-Y
8 D11-101-03B 起动电机 STARTING MOTOR 1
9 B00001990 六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP 1 Q/SC622-M10*100-10.9
10 D11-104-01 隔套 SPACE SLEEVE 1
11 D11-103-30B 发电机支架 ALTERNATOR BRACKET 1
