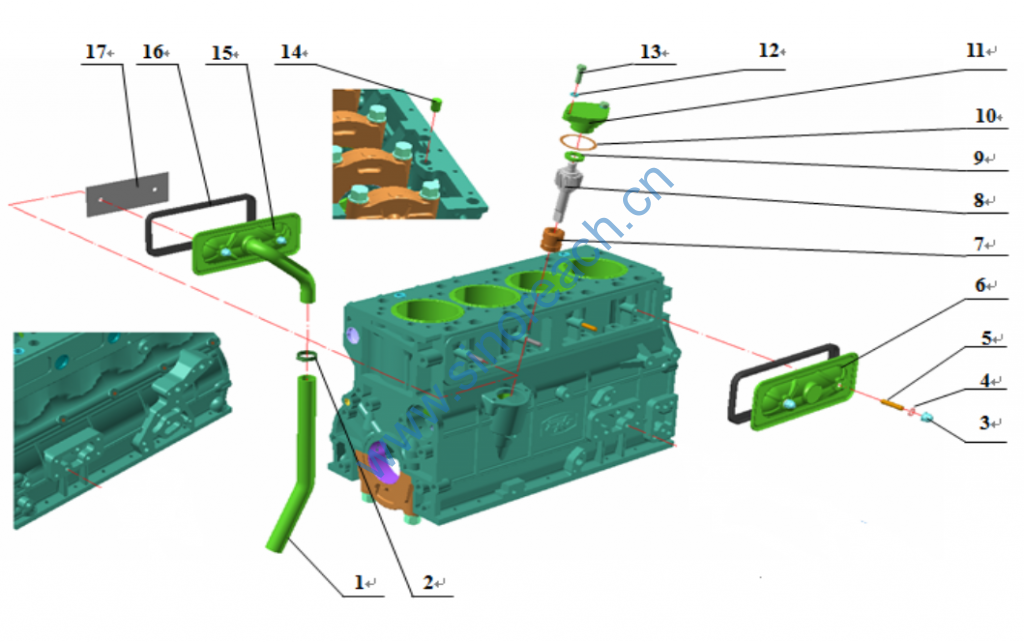

机体部件2 Cylinder Block Assy. 2

1.  HA019301 4102QB-01.07-001 呼吸管接管 Breather joint pipe 1
2.  ZBJ15001-87 喉箍 Clamp NO.1X 1
3.  JB982-97 组合垫圈 Combination washer 16 2
4.  HA0131 4100QB-01-065 螺塞Ⅱ Threaded plug Ⅱ M16×1.5 2
5.  GB/T 97.1-2002 垫圈 Washer 10 6
6.  GB93-1987 垫圈 Sping washer 10 6
7.  GB/T 5783-2000 螺栓 Bolt M10×25-8.8 6
8.  HA01370 4100QB-01-068 侧盖板螺母 Side board nut 4
9.  青岛基珀 组合垫圈 Combination washer 8 4
10.  HB047 GB898-88 螺柱 Bolt AM8×30 4
11.  HA01670 4102QB-01-056 前上侧盖板 Front upper side cove 1
12.  HA014 495QA-01-023 机油泵传动轴衬套 Bush, oil pump driving shaft 1
13.  4100QB-01.03D-011 传动齿轮轴 Propeller gear shaft 1
14.  HA01192 495QA-01.03-001 调整垫片 Adjusting washer 1
15.  HA01836 4100QB-01-024A 机油泵上轴套盖垫片 Gasket 1
16.  HA015 4100QB-01-025A 机油泵上轴套盖 Cover 1
17.  GB93-1987 垫圈 Sping washer 8 2
18.  GB/T 5783-2000 螺栓 Bolt M8×25 2
19.  HA01124 4100QB-01-018 堵塞 plug ф15 1
20.  HA01565 4102QB-01.07.01 后上侧盖板焊合件 Welded rear upper side cover 1
21.  HA01322 4100QB-01-057 上侧盖板垫片 Upper side cover washer 2
22.  HA01226 495QA-01-055 挡油板 Oil-retaining ring 1
23.  HC02 24V/CA10 机油压力传感器 Oil pressure sensor 1
