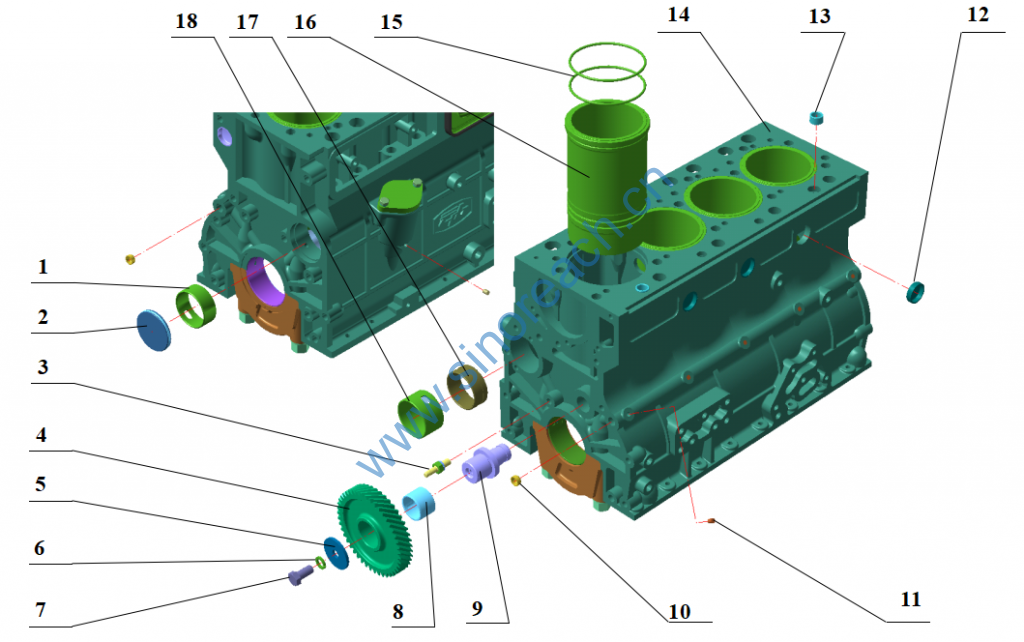

机体部件Cylinder Block Assy.

1.  HA01106 4100QB-01-014 凸轮轴衬套Ⅲ Camshaft bushing III 1
2.  HA011 4100QB-01.13 堵头组合件 Plug seaming 1
3.  HA012 4100QB-01.14 喷嘴组合件 Nozzle seaming 1
4.  HA011116 4100QB-01.02.01B-001 惰齿轮 Idle gear 1
5.  HA01222 4100QB-01.02-002 惰齿轮挡圈 Idle gear Baffle 1
6.  GB93-1987 垫圈 Sping washer 12 1
7.  GB/T 5783-2000 螺栓 Bolt M12×22-8.8 1
8.  4100QB-01.02.01-002A 惰齿轮衬套 Bushing, idle gear 1
9.  HA0132 4100QB-01.02-001 惰齿轮轴 Shaft, idle gear 1
10.  HA03125 4100QB-01-017 碗形塞  Plug φ15 2
11.  HA01123 4100QB-01-019 堵塞 Plug 6
12.  HA01238 495QA-01.01-007 碗形塞  Plug φ32 4
13.  HA013 495QA-01-022 定位套管 Locating bush 2
14.  HA01210 4102QB-01.01 机体机械加工部件 Engine block machined parts 1
15.  HA0171 4100QB-01-012 封水圈 Water seal ring, cylinder liner 8
16.  HA01185 4100QB-2-01-011 气缸套 Cylinder liner 4
17.  HA0110801 4100QB-01-014-Ⅱ 凸轮轴衬套Ⅱ Camshaft bushing II 1
18.  HA01105 4100QB-01-013A 凸轮轴衬套Ⅰ Camshaft bushing I 1
