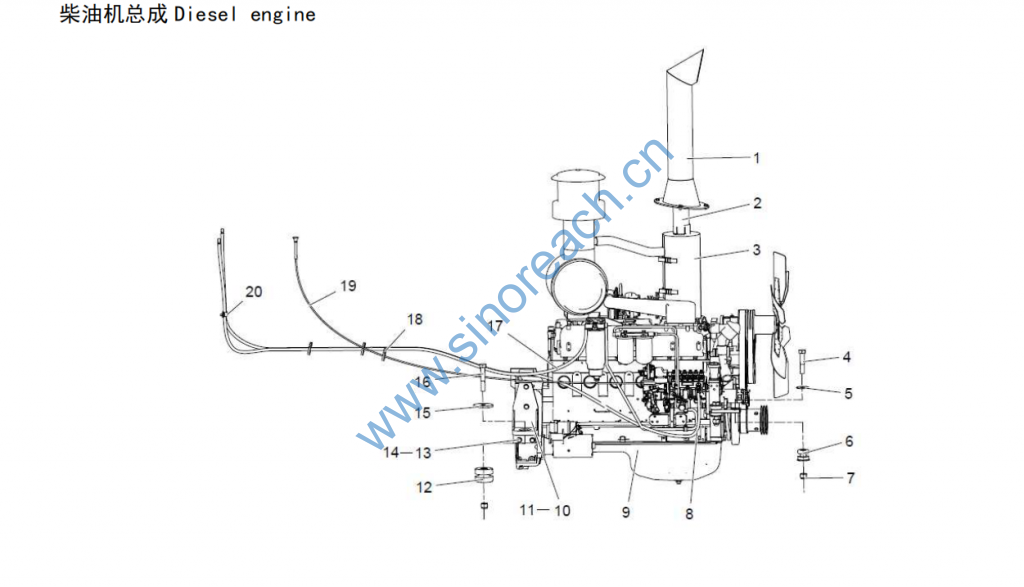

柴油机总成 Diesel engine

1 排气管组件 Exhaust pipe asssmbly TD16056001 1
2 消音器尾管 Muffler pipe TD16056005 1
3 消音器包裹 Muffler package TD16026023 1
4 螺栓 M24×120 Bolt M24×120 B040810038 GB/T5782-2000 4
5 垫片 Gasket TD16026012 4
6 发动机减震垫 EngineShock absorber W47047000 4
7 锁紧螺母 M24 Locknut M24 B050212419 GB/T889.1-2000 6
8 柴油管 3600mm Fuel pipe 3600mm TD16026007 1
9 柴油机 Diesel W47037000 DHD10G0354 1
柴油机 Diesel W47064000 D1018CT2G001 1
10 发动机左前支架 Engine LF Bracket TD16026015 1
11 右后支架 RR Bracket TD16056008 1
12 发动机减振垫 Engine Vibration Gasket W47059000 2
13 螺栓 M14×1.5×40 Bolt M14×1.5×40 B041111440 GB/T5786-2000 8
14 垫圈 14 Washer 14 B060411403 GB/T97.1-2002 8
15 减振垫垫片 Vibration damping gasket Z5A01402800 2

16 螺栓 M24×140 Bolt M24×140 B040810015 GB/T5782-2000 2
17 柴油管 Fuel pipe TD16056006 1
18 扎带 Clip W110004430 ZD338×13 3
19 熄火线 E×tinguishing wire W47000018 1
20 双管卡 Double hose clip MG19013012
