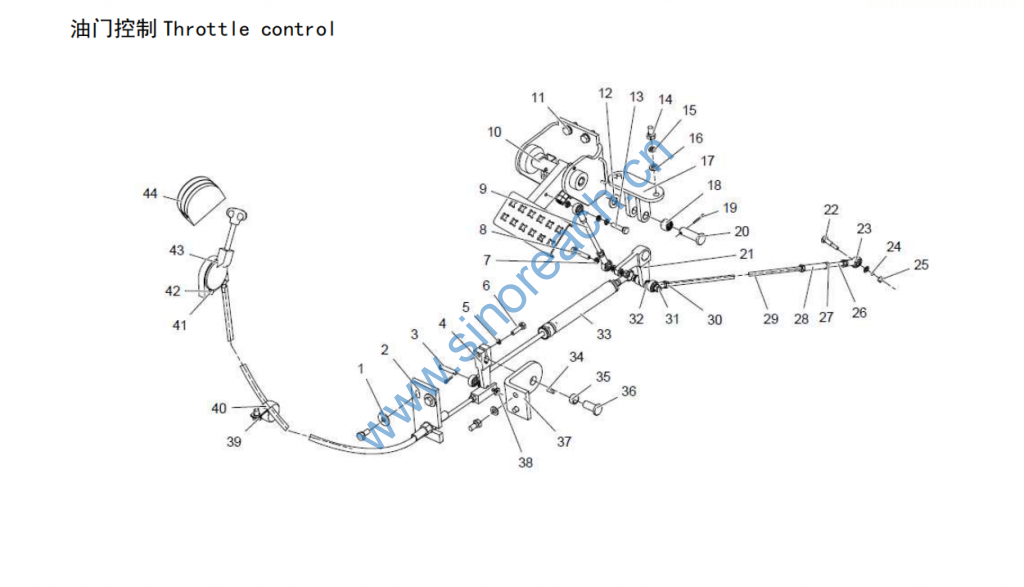

油门控制 Throttle control

1 垫圈 10 Washer 10 B060311003 GB96-85 2
2 软轴固定板 cable Retaining plate TD16023036 1
3 销轴 8×40 Pin mandrel 8×40 B080310840 GB882-86 1
4 摇臂 Rocker arm TD16023037 1
5 垫圈 8 Washer 8 B060410802 GB93-87 4
6 螺栓 M8×30 Bolt M8×30 B040910830 GB/T5783-2000 1
7 垫 Gasket Z320070050 ZL30F.7-5 9
8 螺栓 M8×40 Bolt M8×40 B040910840 GB/T5783-2000 1
9 连杆 Connecting rod TD16023019 1
10 踏板组件 Pedal assembly TD16023006 1
11 螺栓 M10×25 Bolt M10×25 B040911025 GB/T5783-2000 3
12 垫圈 16-300HV Washer 16-300HV B060461603 GB/T97.1-2002 1
13 螺栓 M8×55 Bolt M8×55 B040810855 GB/T5782-2000 1
14 螺栓 M10×20 Bolt M10×20 B040911020 GB/T5783-2000 6
15 垫圈 6 Washer 6 B060330601 GB/T96.1-2002 2
16 垫圈 10 Washer 10 B060411002 GB/T97.1-2002

17 底座组件 seat TD16023020 1
18 冲压外圈滚针轴承 Bearing HK1616-2RS B121741616 GB/T290-98 1
19 开口销 3.2×32 Cotter pin 3.2×32 B080210013 GB/T91-2000 2
20 轴 shaft TD16023025 1
21 摆臂 arm TD16023024 1
22 轴承螺栓 bearing bolt TD16023014 1
23 杆端关节轴承 SIJK8C Joint bearing SIJK8C B120920812 GB/T9161-2001 6
24 垫圈 6 Washer 6 B060410602 GB93-87 1
25 螺母 M6 Nut M6 B050330605 GB/T6170-2000 1
26 油门拉杆 Tension rod TD16023028 1
27 螺母 M8 左旋 Nut M8 B050330003 GB/T6170-2000 1
28 调节套管 Sleeve Pipe TD16023039 1
29 连接杆 rod TD16023048 1
30 螺母 M8 Nut M8 B050330807 GB/T6170-2000 9
31 螺栓 M8×70 Bolt M8×70 B040810870 GB/T5782-2000 1
32 垫 Gasket MG19019039

33 弹簧拉杆组件 SpringLinkage rod TD16023030 1
34 半圆键 4×19 key 4×19 W48000067 GB1099-1979 1
35 轴套 Bushing MG19019087 1
36 销轴 Pin mandrel TD16023029 1
37 支架 Bracket TD16023027 1
38 垫圈 8 Washer 8 B060410802 GB/T97.1-2002 1
39 螺栓 M10×16 Bolt M10×16 B040911016 GB/T5783-2000 1
40 管卡 Pipe clamp Z5A20400500 1
41 螺栓 M6×25 Bolt M6×25 B040910625 GB/T5783-2000 2
42 垫圈 6 Washer 6 B060410602 GB/T97.1-2002 2
43 手油门推拉软轴(816,潍柴) Throttle cable W48000316 1
手油门推拉软轴(816,杭发) Throttle cable W48000317 1
44 手油门控制器护罩组件 Shield assembly TD16023045
