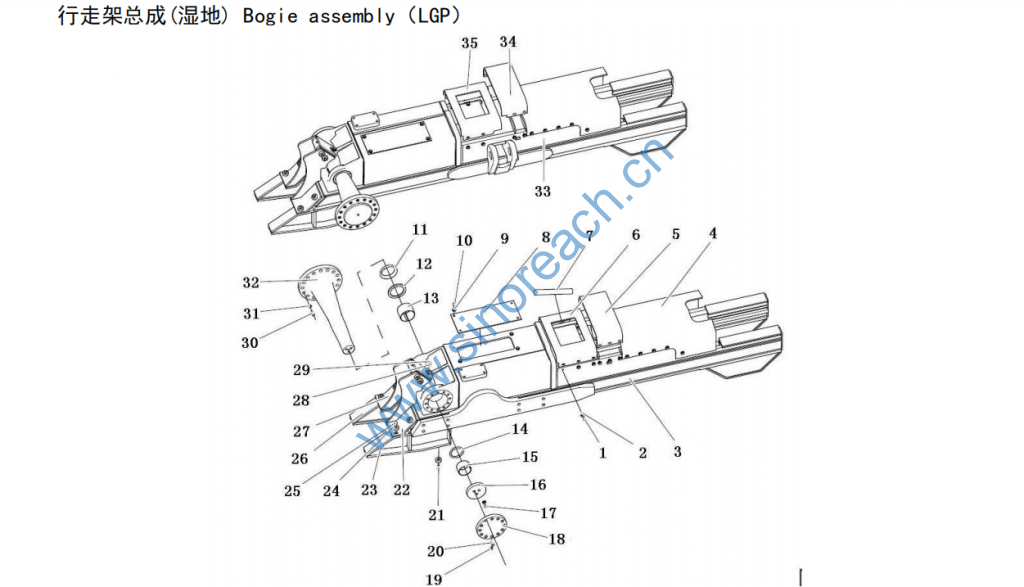

行走架总成（湿地）Bogie assembly

1 螺栓 M12×35 Bolt M12×35 B040911235 GB/T5783-2000 40
2 垫圈 12 Washer 12 B060311203 GB/96-1985 40
3 行走架焊接组件（右） Walking frame welding TD16400003 1
4 防护罩组件 Protective cover TD16400029 2
5 左后托链轮支撑组件 Left C/ROLLER support TD16400005 1
6 右盖板组件 The right cover plate TD16400009 1
7 管 Pipe TD16003077 2
8 盖板 Cover plate TD16003029 2
9 垫圈 10 Washer 10 B060411002 GB/T97.1-2002 8
10 螺栓 M10×20 Bolt M10×20 B040911020 GB/T5783-2000 8
11 橡胶圈 Rubber ring TD16003004 2
12 垫圈 Washer TD16003003 2
13 衬套Ⅱ Bushing Ⅱ TD16003010 2
14 O 形圈 140×3.55 O-ring 140×3.55 B160131401 GB/T3452.1-2005 2
15 衬套Ⅰ Bushing Ⅰ TD16003009 2
16 定位板 Positioning plate TD16003005 2

17 螺栓 M16×50-10.9 Bolt M16×50-10.9 B040961650 GB/T5783-2000 6
18 枢轴端盖 Pivot shaft end cover TD16400012 2
19 垫圈 16 Washer 16 B060411603 GB/T97.1-2002 30
20 螺栓 M16×60-10.9 级 Bolt M16×60-10.9 B040861660 GB/T5782-2000 24
21 螺栓 M16×50 Bolt M16×50 B040911650 GB/T5783-2000 8
22 上防护组件Ⅱ Protective component Ⅱ TD16003045 2
23 下防护组件Ⅰ Protective componen Ⅰ TD16003041 2
24 垫 Washer TD16003073 24
25 螺栓 M16×45 Bolt M24×30 B040911645 GB/T5783-2000 16
26 下防护组件Ⅱ Protective componen Ⅱ TD16003048 2
27 上防护组件Ⅰ Protective component Ⅰ TD16003076 2
28 垫圈 24 Washer 24 B060412404 GB/T97.1-2002 2
29 螺栓 M24×30 Bolt M24×30 B040912430 GB/T5783-2000 2
30 螺栓 M20×70-10.9 Bolt M20×70-10.9 B040862070 GB/T5782-2000 32
31 垫圈 20 Washer 20 B060412003 GB/T97.1-2002 32
32 枢轴 Pivot TD16400002 2

33 行走架焊接组件（左） The walking frame welding TD16400004 1
34 右后托链轮支撑组件 The towline wheel support TD16400006 1
35 左盖板组件 The left cover assembly TD16400008 1
