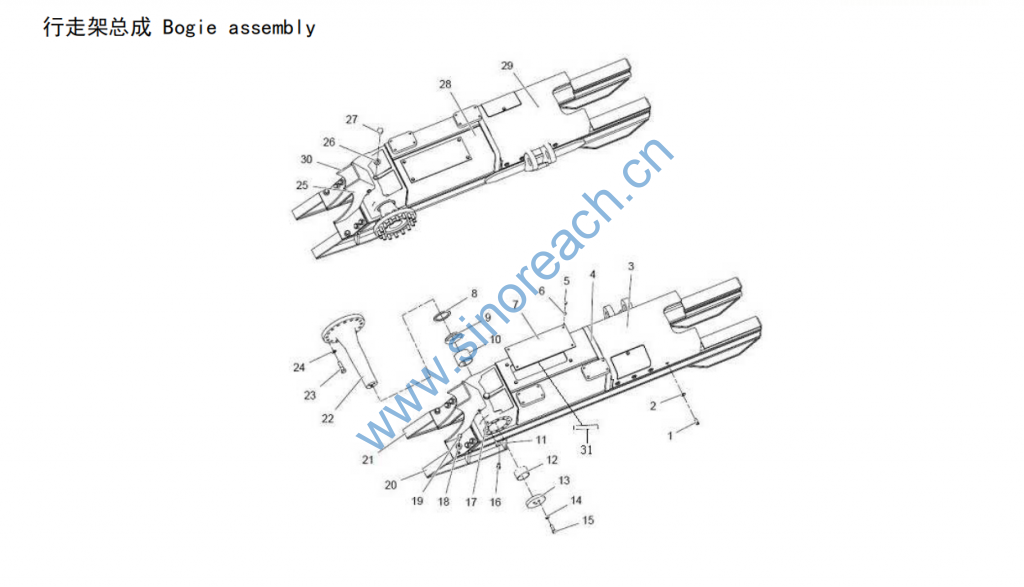

行走架总成 Bogie assembly

1 螺栓 M12×35 Bolt M12×35 B040911235 GB/T5783-2000 14
2 垫圈 12 Washer 12 B060311203 GB96-85 14
3 防护罩组件Ⅰ Protective cover assembly TD16003049 1
4 行走架焊接组件（右） The walking (right) TD16003008 1
5 螺栓 M10×20 Bolt M10×20 B040911020 GB/T5783-2000 8
6 垫圈 10 Washer 10 B060411002 GB/T97.1-2002 8
7 盖板 Cover plate TD16003029 2
8 垫圈 Washer TD16003003 2
9 橡胶圈 Rubber ring TD16003004 2
10 衬套Ⅱ Bushing TD16003010 2
11 螺栓 M14×30 Bolt M14×30 B040911430 GB/T5783-2000 4
12 衬套Ⅰ Bushing TD16003009 2
13 定位板 Positioning plate TD16003005 2
14 垫圈 16 Washer 16 B060411603 GB/T97.1-2002 6
15 螺栓 M16×50-10.9 Bolt M16×50-10.9 B040961650 GB/T5783-2000 6
16 螺栓 M16×50 Bolt M16×50 B040911650 GB/T5783-2000 8

17 垫圈 14 Washer 14 B060411403 GB/T97.1-2002 4
18 垫 Washer TD16003073 20
19 螺栓 M16×45 Bolt M16×45 B040911645 GB/T5783-2000 12
20 下防护组件Ⅰ The protective component TD16003041 2
21 下防护组件Ⅱ The protective component TD16003048 2
22 枢轴 Pivot TD16003002 2
23 螺栓 M20×70-10.9 Bolt M20×70-10.9 B040862070 GB/T5782-2000 32
24 垫圈 20 Washer 20 B060412003 GB/T97.1-2002 32
25 上防护组件Ⅱ The protective component TD16003045 2
26 垫圈 24 Washer 24 B060412404 GB/T97.1-2002 2
27 螺栓 M24×30 Bolt M24×30 B040912430 GB/T5783-2000 2
28 行走架焊接组件（左） The walking frame (left) TD16003025 1
29 防护罩组件Ⅱ Protective cover assembly TD16003024 1
30 上防护组件Ⅰ The protective component TD16003076 2
31 管 Pipe TD16003077 2
