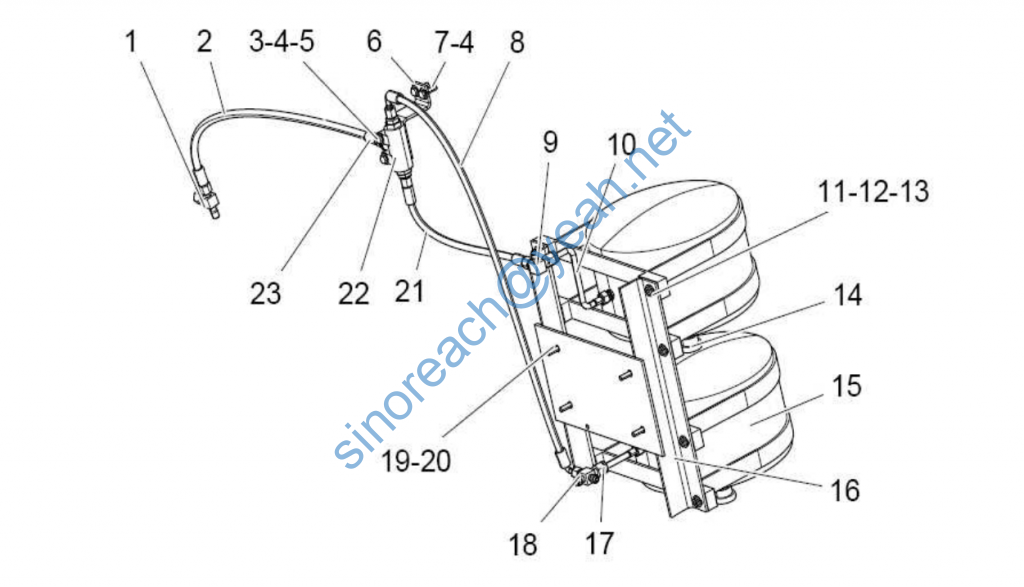

Air container braking system

1 气压报警三通体组件 Air pressure alarm T-component Z5B361004 1
2 M18 制动软管组件 M18Brake hose assembly Z5B336008 1
3 螺栓 M8X70 Bolt M8X70 B040810870 GB5783-2000 2
4 垫圈 8 Washer 8 B060410802 GB97.1-2002 4
5 螺母 M8 Nut M8 B050330807 GB6170-2000 2
6 支架 Bracket Z5B336015 1
7 螺栓 M8X25 Bolt M8X25 B040910825 GB5783-2000 2
8 M18 制动软管组件 M18Brake hose assembly Z5B336007 1
9 三通接头组件 tee connection component Z5B336011 1
10 支管组件 manifold component Z5B336021 1
11 螺栓 M10X45 Bolt M10X45 B040911045 GB5783-2000 8
12 螺母 M10 Nut M10 B050331008 GB6170-2000 8
13 垫圈 10 Washer 10 B060331003 GB96.1-2002 8
14 空气罐放水阀 Control outlet valve W082900010B 1
15 贮气筒总成 Air reservoirassembly W083500000B SHY-350 2
16 贮气筒支架组件 Air reservoirBracket component Z5B361031 1
17 支管组件 manifold component Z5B361059 1
18 四通体组件 Four case component Z5B336012 1
19 螺栓 M14X30 Bolt M14X30 B040911430 GB5783-2000 4
20 垫圈 14 Washer 14 B060461403 GB/T97.1-2002 4
21 M18 制动软管组件 M18Brake hose assembly Z5B336020 1

22 双回路保险阀 Double circle fuse valve W44000007 1
23 油水分离器接头 fu Z310340020
