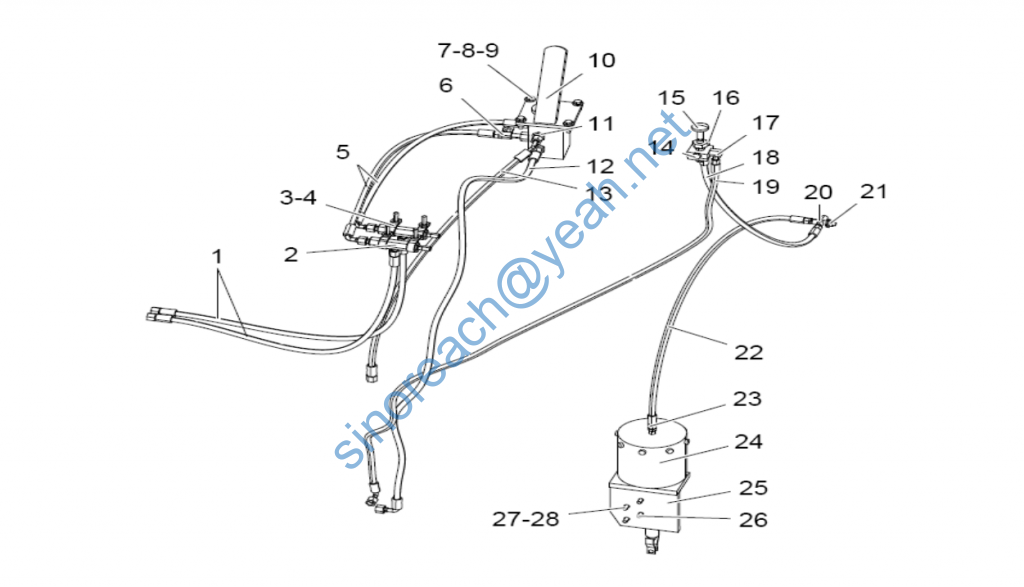

驾驶室制动组件 Cab braking system

1 M18 制动软管组件 M18Brake hose assembly Z5B371002 2
2 三通接头组件(三通阀处) tee connection 组件(T-valve) Z5B376003 2
3 管卡（φ19） Clip（φ19） Z520171200 4
4 螺栓 M10×20 BoltM10×20 B040911020 GB/T5783-2000 4
5 M18 制动软管组件 M18Brake hose assembly Z5B361022 2
6 气压报警三通接头 air alarm T connector Z5A02201100 1
7 螺栓 M10×30 BoltM10×30 B040911030 GB/T5783-2000 4
8 螺母 M10 Nut M10 B050331008 GB6170-2000 4
9 垫圈 10 Washer 10 B60411002 GB96.1-2002 4
10 脚制动阀 Foot brake valve W083700000B SG50-3514002 1
11 脚制动阀接头 Foot brake valve Connection fitting Z5B361032 4
12 M18 制动软管组件 M18Brake hose assembly Z5B361016 1
13 M18 制动软管组件 M18Brake hose assembly Z5B336014 1
14 手控制动阀堵头 Unpowered braking valve plug Z320220060 1
15 手控制动阀 Unpowered braking valve W110000090 QZ50-3526002 1
16 直角接头 Right line Connection fitting Z530220250 1
17 手控阀进气接头 Unpower valve inlet air Connection fitting Z310340220 1
18 M14 制动软管组件 M14Brake hose assembly Z5B02203800 1
19 M18 制动软管组件 M18Brake hose assembly Z5B361019 1
20 三通接头 tee connection Z530220220 1

21 垫圈 10 Washer10 B060331003 GB96.1-2002 2
22 气管总成(M14×1.5×1000) Pipe assembly(M14×1.5×1000) Z510100630 1
23 驻车制动气室接头 Parking brake air chamberConnection fitting Z320220020 1
24 驻车制动气室 Parking brake air chamber W085200000 1
25 驻车制动气室支架 Parking brake air chamberBracket Z6B375001 1
26 螺栓 M10×35 BoltM10×35 B040911035 GB/T5783-2000 2
27 螺栓 M12×35 BoltM12×35 B040911235 GB/T5783-2000 2
28 垫圈 20 Washer20 B060412003 GB/T97.1-2002 2
