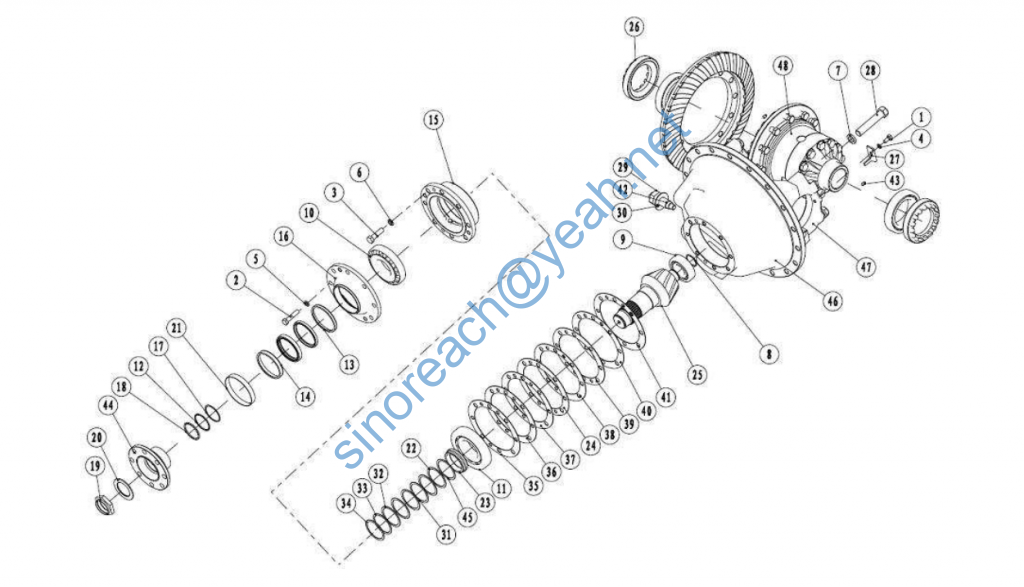

前桥前桥前桥主减速器及差速器Front Axle Main Reducer and Differential Case

1 螺栓 M10×20 Bolt B040911020 2
2 螺栓 M12×1.5×55 Bolt B041011255 1
3 螺栓 M14×1.5×50 Bolt B041011450 7
4 垫圈 10 Washer B060111003 2
5 垫圈 12 Washer B060111203 1
6 垫圈 14 Washer B060111404 7
7 垫圈 22 Washer B060112206 4
8 轴用挡圈 40 retainer B070214002 1
9 轴承 NUP308EV bearing installation iron B120330004 1
10 轴承 27313E bearing B120400016 1
11 轴承 27314E bearing B120400017 1
12 O 形圈 56×3.55 O ring B160130560 1
13 油封 PG80×100×12 oil seal B160220004 1
14 油封 SG80×100×12 oil seal B160240004 1
15 轴承座 bearing seatZL60D.24.4-1 QT500-7 Z610240470 1
16 端盖 lid Z610240480 1
17 挡板 retainer Z610240491 1
18 调整垫片 adjusting shim Z610240501 1
19 锁紧螺母 lock nut Z610240510 1
20 垫圈 washer Z610240520 1
21 防尘罩 dust boot Z610240540 1
22 调整垫片 adjusting shim Z610240560 2

23 轴承隔套
bearing sleeve ZL60D.24.4-11
40Cr Z610240570 1
24 调整垫片 adjusting shim Z610240580 1
25 主动螺旋伞齿轮 drive bevel gear (left) Z630500090 1
25 从动螺旋伞齿轮 driven screw bevel gear Z630500101 1
26 差速器螺母
differential nutZL60D.24.4-24
QT500-7 Z610240700 2
27 锁紧片 lock disc Z610240720 2
28 差速器支架联接螺栓
differential support connecting
bolt ZL60D.24.4-31 40Cr Z610240770 4
29 锁母 lock nut Z610240780 1
30 止动垫圈 lock washer ZL60D.24.4-33 Q235-A Z610240790 1
31 调整垫片 adjusting shim Z610240850 2
32 调整垫片 adjusting shim Z610240860 2
33 调整垫片 adjusting shim Z610240870 1
34 调整垫片 adjusting shim Z610240880 1
35 调整垫片 adjusting shim Z610240890 1
36 调整垫片 adjusting shim Z610240900 1
37 调整垫片 adjusting shim Z610240910 1
38 调整垫片 adjusting shim Z610240920 1
39 调整垫片 adjusting shim Z610240930 1
40 调整垫片 adjusting shim Z610240940 1
41 调整垫片 adjusting shim Z610240950 1

42 限位支承螺柱总成 limited support stud AS Z610240960 1
43 锥销 taper pin ZL60D.24.4-52 20CrMnTi Z610241090 4
44 输入法兰 input flange Z620590270 1
45 调整垫片 adjusting shim Z62059062 1
46 主减壳体组件（2009 改进） main minus shell components NZ6205912200 1
47 差速器轴承支架盖 Differential bearing bracket cover Z62059123 2
48 差速器组件（2006 改进） differential grouop NZ62059005020 1
