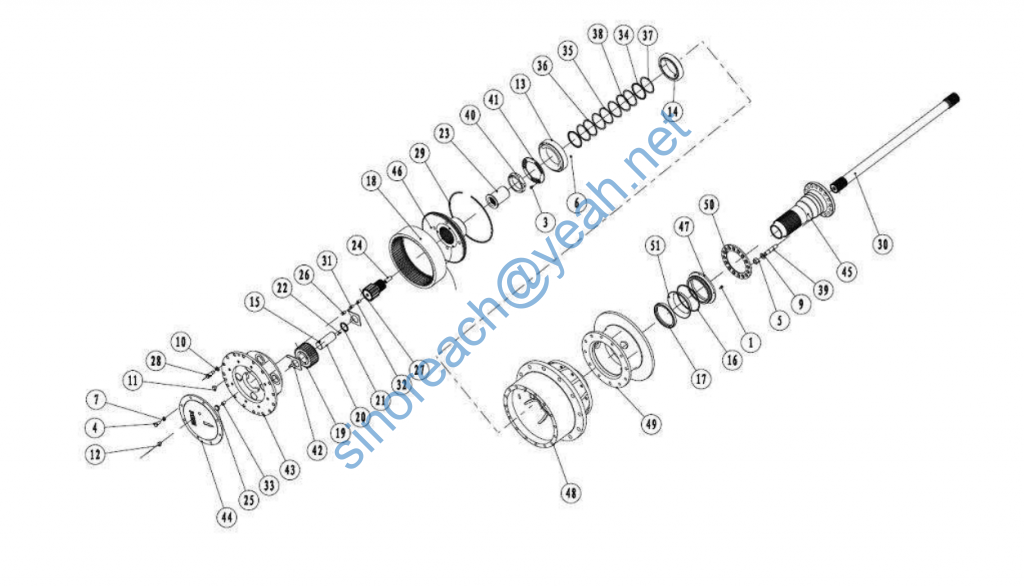

轮边减速器 Wheel & final Reducer

1 螺栓 M6×20 Bolt B040910620 4
2 螺栓 M16×45-12.9 Bolt B041691645 12
3 螺栓 M8×16-10.9 Bolt B040960816 3
4 螺栓 M14×1.5×30 Bolt B041111430 8
5 螺母 M20×1.5-8 Nut B050462017 16
6 垫圈 6 Washer B060110602 4
7 垫圈 14 Washer B060111404 8
9 垫圈 20-300HV Washer B060462003 16
10 垫圈 16-200HV Washer B060511603 16
11 螺塞 B ZG1/2″ plugB B110500102 1
12 螺塞 B ZG3/4″ plugB B110500304 1
13 轴承 2007128E bearing B120400015 1
14 轴承 2007124E taper roller bearing 2007124 B120400033 1
15 钢球 φ3/8″ round steel B120710953 4
16 O 型圈 175×5.3 O ring B160141751 1
17 油封 140×170×15 SEAL-LIP TYPE W044100550 1
18 齿圈 Gear-Ring Z610240111 1
19 行星轮 planet gear Z610240121 4
20 行星轮轴 planet gear shaft Z610240151 4
21 隔套 Stell ring Z610240160 4
22 滚针 P φ6×29.8 needleP Z610240170 232
23 联接套 connecting sleeve Z610240200 1

24 螺钉 M20×2×50
screw M20 × 2 × 50 ZL60D.24.1-13
45 Z610240210 1
25 挡块 stop block Z610240221 1
26 调整支柱 adjusting column Z610240230 1
27 太阳轮 sun gear Z610240241 1
28 小六角头铰制孔螺栓 small hexagon head reaming bolt Z610240290 16
29 卡环 ring ZL60D.24.1-23 65Mn Z610240300 1
30 半轴 axle ZL60D.24.1-25 40Cr Z610240320 1
31 调整支柱 adjusting column Z610241120 1
32 调整支柱 adjusting column Z610241130 1
33 调整支柱 adjusting column Z610241140 1
34 调整垫 adjusting shim Z620590180 2
35 调整垫片 0.05 adjusting shim Z620590190 2
36 调整垫片 0.20 adjusting shim Z620590200 2
37 调整垫片 0.50 adjusting shim Z620590210 2
38 调整垫片 1.00 adjusting shim Z620590220 2
39 双头螺柱 Double thread stud Z620590230 16
40 套管螺母 socket nut Z620590240 1
41 锁止环 lock ring Z620590250 1
42 行星轮垫片 planet gear washer Z620590260 8
43 行星轮架 planet gear carrier Z6205904100 1
44 端盖 lid Z62059045 1

45 套管 sleeve pipe Z62059047 1
46 齿圈支承 gear ring carrier Z62059048 1
47 油封座 Retainer-Seal Z62059091 4
48 轮毂 hub ZL60D.24.1-27 ZG310-570 Z62059112 1
49 制动盘 brake disc HT250 Z62059113 1
50 套管垫子 sleeve pipe gasket Z62059116 1
51 防尘罩 dust boot Z62059119
