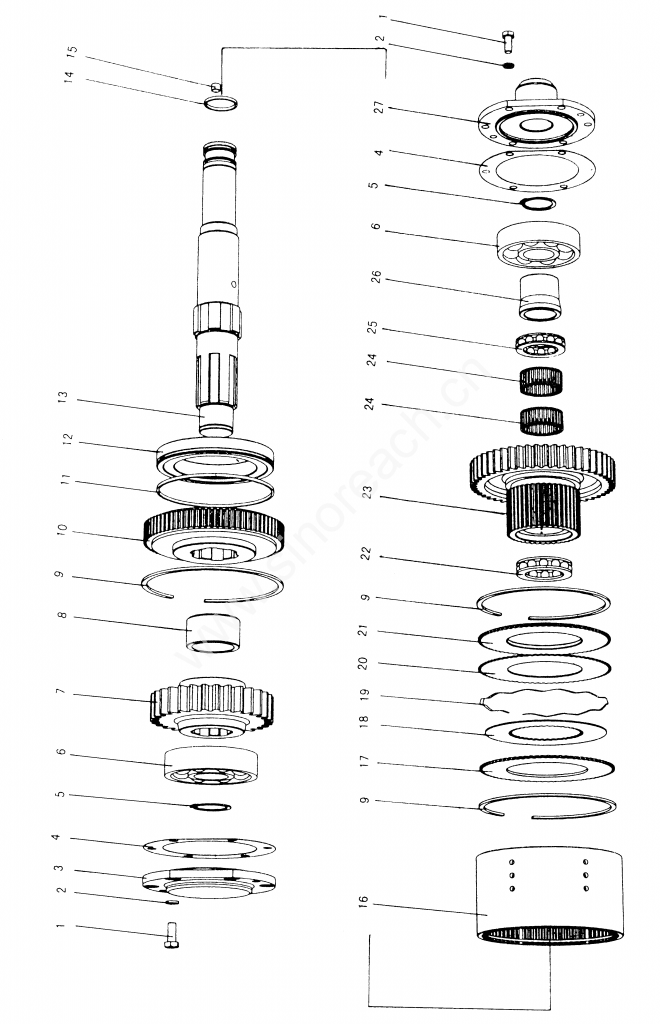

Z30E.4.5一档总成 1st Speed Ass’y

1 B-G057830-00006 1 螺栓M10×25 ZnD Bolt
2 B-G000930-00001 1 垫圈10 Washer
3 Z30E.4.5-9 1 轴承盖 Cover
4 Z30E.4.5-8A 1 垫 Spacer
Z30E.4.5-8B 1 垫 Spacer
5 B-G00894A-00015 1 挡圈45 Snap ring
6 B-G002760-00035 1 滚动轴承6409 Bearing
7 Z30E.4.5-2 1 一档主动齿轮 Gear
8 Z30E.4.5-3 1 套 Sleeve
9 Z30.4.1-16 1 挡圈 Snap ring
10 Z30E.4.5-4 1 一档缸体 Cylinder body
11 Z30.4.1-22B 1 油封环 Oil seal ring
12 Z30.4.1-8A 1 活塞 Piston
13 Z30E.4.5-1 1 一档轴 Shaft
14 Z30.4.1-19 1 油封环 Oil seal ring
15 B-G000780-00006 1 螺钉M12×12 Screw
16 Z30E.4.5-10 1 齿圈 Gear ring
17 Z30.4.1-9 1 压板 Holder
18 Z30.4.1-5 1 从动片 Driven disk
19 Z30.4.1-6 1 波形弹簧 Wave spring
20 Z30.4.1-4 1 主动片 Drive disk
21 Z30.4.1-11 1 盖板 Cover
22 B-G003010-00003 1 轴承8111 Bearing
23 Z30E.4.5-5 1 一档离合器齿轮 Gear
24 W-03-00041 1 有保持架滚针轴29243/55 Needle bearing
25 B-G003010-00002 1 轴承8110 Bearing
26 Z30E.4.5-6 1 轴套 Sleeve
27 Z30E.4.5-7 1 进油轴承盖 Cover
