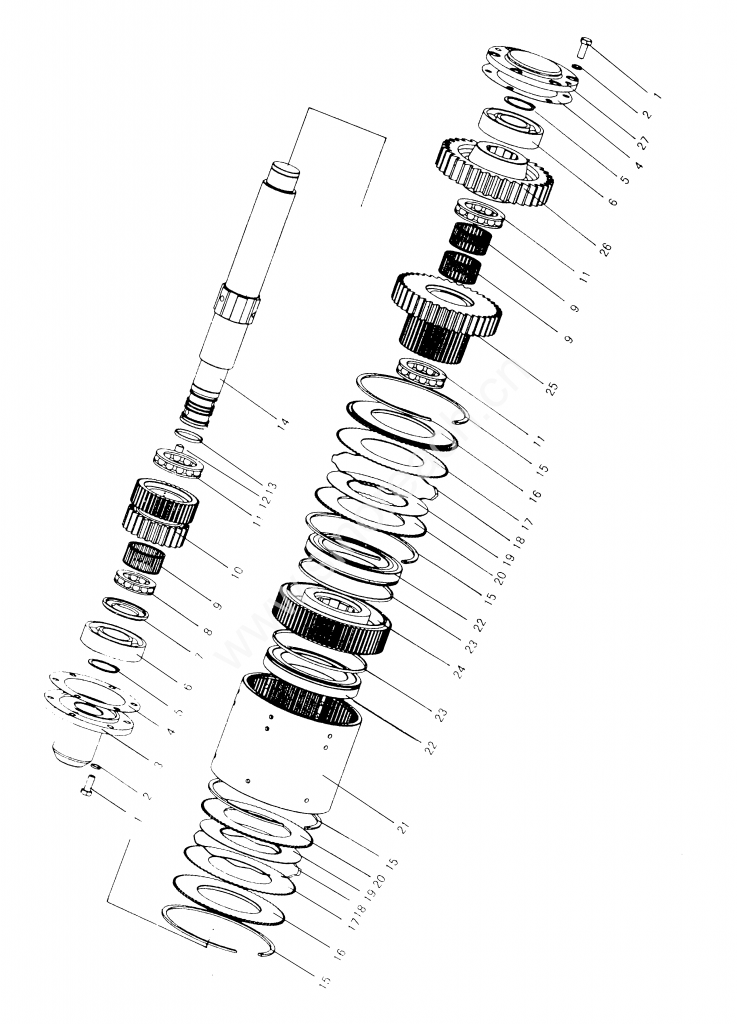

Z30E.4.4二、三档轴总成 2nd and 3rd Shaft Ass’y

1 B-G057830-00006 1 螺栓M10×25 ZnD Bolt
2 B-G000930-00001 1 垫圈10 Washer
3 Z30E.4.4-5 1 进油轴承盖 Cover
4 Z30E.4.4-7A 1 纸垫 Paper pad
Z30E.4.4-7B 1 纸垫 Paper pad
5 B-G00894A-00015 1 挡圈45 Snap ring
6 B-G002760-00029 1 轴承6309 Bearing
7 Z30E.4.4-8 1 套 Sleeve
8 B-G003010-00001 1 轴承8109 Bearing
9 W-03-00007 1 有保持架滚针轴承9243/55 Bearing
10 Z30E.4.4-4 1 三档离合器齿轮 Gear
11 B-G003010-00003 1 轴承8111 Bearing
12 B-G000780-00006 1 螺钉M12×12 Screw
13 Z30.4.1-19 1 油封环 Oil seal ring
14 Z30E.4.4-2 1 二、三档轴 Shaft
15 Z30.4.1-16 1 挡圈 Snap ring
16 Z30.4.1-11 1 盖板 Hood
17 Z30.4.1-4 1 主动片 Drive disk
18 Z30.4.1-6 1 波形弹簧 Wave spring
19 Z30.4.1-5 1 从动片 Driven disk
20 Z30.4.1-9 1 压板 Holder
21 Z30.4.4-5 1 齿圈 Gear ring
22 Z30.4.1-8A 1 活塞 Piston
23 Z30.4.1-22B 1 油封环 Oil seal ring
24 Z30.4.1-7A 1 缸体 Cylinder body
25 Z30E.4.4-3 1 二档离合器齿轮 Gear
26 Z30E.4.4-1 1 齿轮 Gear
27 Z30E.4.4-6 1 轴承盖 Cover
