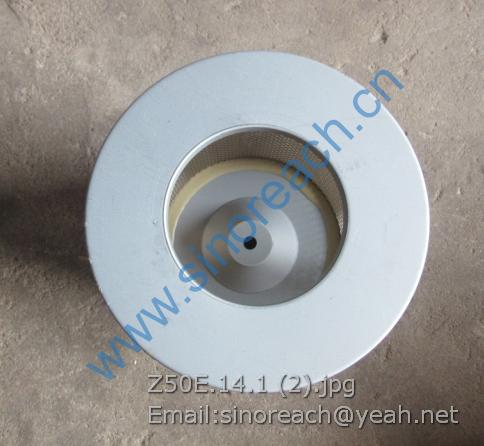

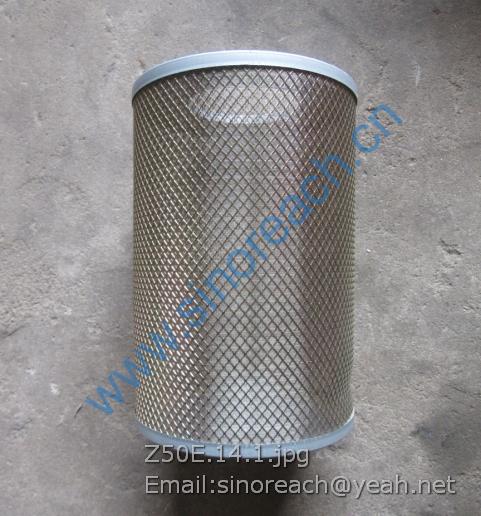

Z50E.14.1.3 filter element for CHANGLIN spare parts

1 Z30E.14M.7.1 1 活塞杆 Piston rod
2 B-G10708C-00012 1 防尘圈FC70×80×6 Dust ring
3 Z30E.14.20-1 1 支承环 Support ring
4 B-G10708A-00009 1 活塞杆密封圈70×85×12.5 Seal ring
5 W-15-00082 1 斯特封 Seal ring
6 B-G057850-00039 1 螺栓M24×2×80-10.9 ZnD Bolt
7 B-G000930-00010 1 垫圈24 Washer
8 Z30E.14.20-2 1 缸头 Cylinder head
9 B-Q020710-00020 1 O形圈150×5.7 O-ring
10 B-Q020710-00100 1 O形圈80×5.7 O-ring
11 Z30E.14.20-4 1 活塞 Piston
12 Z30E.14.20-3 1 支承环 Support ring
13 W-15-00074 1 格来圈 Seal ring
14 Z30E.14.20-5 1 锁紧螺母 Nut
15 Z30E.14.20-6 1 止动钢丝圈 Stop wire ring
16 Z30E.14.20.2 1 缸体 Cylinder body
17 Z30E.14.20-7 1 轴套 Boshing

1 Z30E.4.21-1 1 轴套 Bushing
2 Z30E.14M.8.1 1 活塞杆 Piston rod
3 B-G000910-00068 1 销8×90 Pin
4 B-G10708C-00012 1 防尘圈FC70×80×6 Dust ring
5 Z30E.14.21-2 1 支承环 Support ring
6 B-G10708A-00009 1 活塞杆密封圈70×85×12.5 Seal ring
7 B-G057850-00041 1 螺栓M27×1.5×90-10.9 ZnD Bolt
8 W-15-00082 1 斯特封0700|S-55013 Seal ring
9 B-G000930-00012 1 垫圈27 Washer
10 Z30E.14.21.3 1 缸头 Cylinder head
11 B-Q020710-00020 1 O形圈150×5.7 O-ring
12 B-Q020710-00100 1 O形圈80×5.7 O-ring
13 Z30E.14.21-4 活塞 Piston
14 Z30E.14.21-3 1 支承环 Support ring
15 W-15-00075 1 格来圈 Seal ring
16 B-G094570-00006 1 螺母M48×2 Nut
17 Z30E.14M.8.2 1 缸体 Cylinder body
18 Z30E.14.21-5 1 轴套 Bushing
19 B-G03452A-00019 1 O形圈180×5.7 O-ring

1 Z30E.14.26.3 1 捏手 Handle knob
2 Z30E.14R.13.1 1 动臂操纵杆 Lift arm control rod
3 B-G057820-00024 1 螺栓 M10×75 ZnD Bolt
5 Z30E.14.26.7 1 安全锁 Lock
6 B-Q020490-00001 1 垫圈 10 Washer
7 Z30E.14.26-1 1 轴架 Support
9 B-G00097B-00004 1 垫圈 12 ZnD Washer
10 Z30E.14.26A-3 1 叉 Ball joint
11 B-G061700-00036 1 螺母 M8 ZnD Nut
12 Z30E.14R.13.3 1 软轴 Flexible shaft
13 B-G057830-00143 1 螺栓 M8×25 ZnD Bolt
14 B-Q020490-00023 1 垫圈 8 Washer
15 Z30E.14.26A-2 1 板 Plate
16 B-J07940B-00004 1 油杯 90o M10×1 Grease fitting
17 Z30E.14.26B-l 1 隔套 Space sleeve
18 Z30E.14.26-2 1 轴 Shaft
19 Z30E.14.26.2 1 轴承油封 Bearing seal
20 W-03-00037 1 轴承 Bearing
23 Z30E.14R.13.2 1 转斗操纵杆 Control rod
24 B-G008820-00020 1 销轴 B12×35 Pin
25 B-G000910-00038 1 销 4×24 ZnD Pin

1 B-G057830-00139 1 螺栓 M8×20 ZnD Bolt
2 B-G000930-00017 1 垫圈 8 Washer
3 Z30.14M.5-1 1 滤油器盖 Filter cover
4 B-Q020710-00030 1 O形圈 200×5.7 O-ring
5 Z30.14.8-6 1 弹簧 Spring
6 Z30.14.8-5 1 支架 Support
7 B-Q020710-00027 1 O形圈 185×5.7 O-ring
8 B-Q020710-00014 1 O形圈 130×5.7 O-ring
9 Z30.14.8.3 1 磁铁芯 Magnet core
10 Z30.14.8-4 1 拉杆 Drag rod
11 Z30.14.8.2 1 滤网总成 Screen ass’y
12 Z30.14.8-3 1 铜垫 Copper spacer
13 B-G061720-00002 1 螺母 M12 ZnD Nut
14 Z30.14.8-2 1 弹簧 Spring
15 Z30.14.8-1 1 弹簧压盖 Spring gland
16 B-G061790-00001 1 螺母 M10 ZnD Nut
17 B-G000910-00020 1 销 2×20 Pin
18 Z30.14M.5.1 1 箱体 Case
19 B-G00097A-00012 1 垫圈 8 ZnD Washer
20 B-G000930-00003 1 垫圈 12 Washer
21 B-G057830-00143 1 螺栓 M8×25 ZnD Bolt
22 Z30.14A.8-9 1 侧盖 Side cover
23 B-G057830-00076 1 螺栓 M16×45 ZnD Bolt
24 B-G00097B-00008 1 垫圈 16 ZnD Washer
25 B-G000930-00006 1 垫圈 16 Washer
26 B-G061700-00014 1 螺母 16 ZnD Washer
27 W-15-00053 1 网式滤油器 φ55×55 Filter
28 B-J009820-00002 1 垫圈 14 Washer
29 B-J009990-00001 1 螺栓 M14×1.5×32 Bolt
30 Z30E.14.27-3 1 螺塞 Plug
31 Z30.14A.8.7 1 油标 Oil lever
32 W-15-00043 1 进油滤油器 Filter
33 Z30E.14.27-2 1 纸垫 Pad
34 Z30E.14.27.2 1 油管 Oil pipe
35 B-G057830-00032 1 螺栓 M12×30-6.8 YH Bolt
36 Z30E.14.27-1 1 压盖 Gland
37 Z30.14.8-19 1 标牌 Name plate
38 B-G008270-00006 1 铆钉 2×8 Screw
39 Z30.14.8-20 1 标牌 Name plate
40 B-Q020710-00085 1 O形圈 60×3.1 O-ring
42 W-15-00065 1 液压空气滤清器 Air cleaner
43 Z30.14A.8-8 1 盖 Cover
44 Z30.14A.8-27 1 标牌 Name plate
45 Z30.14.8-18 1 螺塞 Plug
46 B-Q020710-00023 1 O形圈 16×2.4 O-ring
47 Z30.14A.8-12 1 标牌 Name plate

48 Z30.14.8-21 1 标牌 Name plate
49 Z30.14A.8-25 1 调整垫片 Washer
50 Z30.14A.8-26 1 调整垫片 Washer
51 W-15-00168 1 液位计总成 Level gauge
