Description

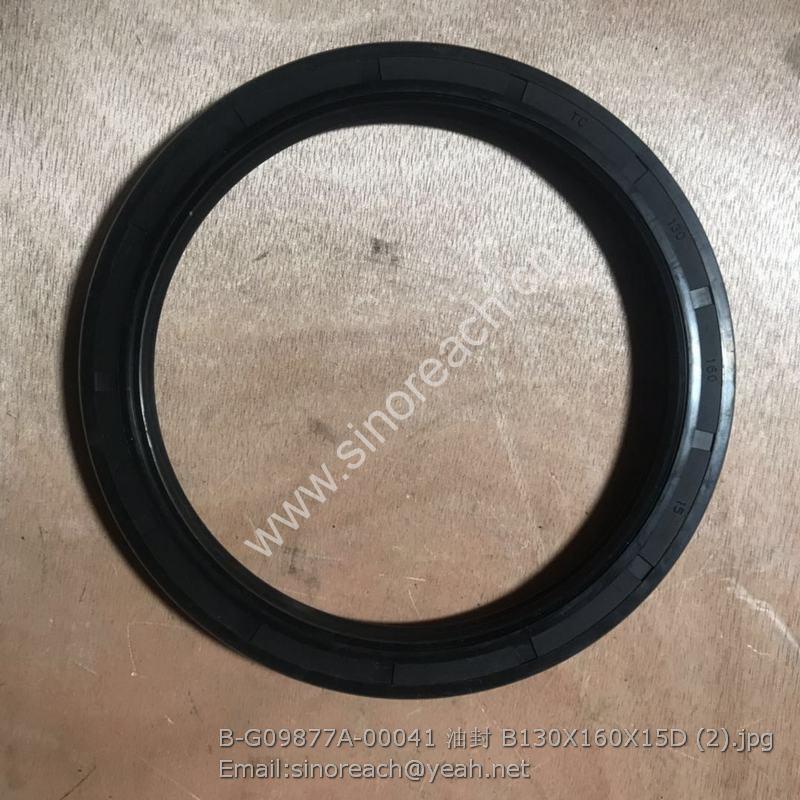

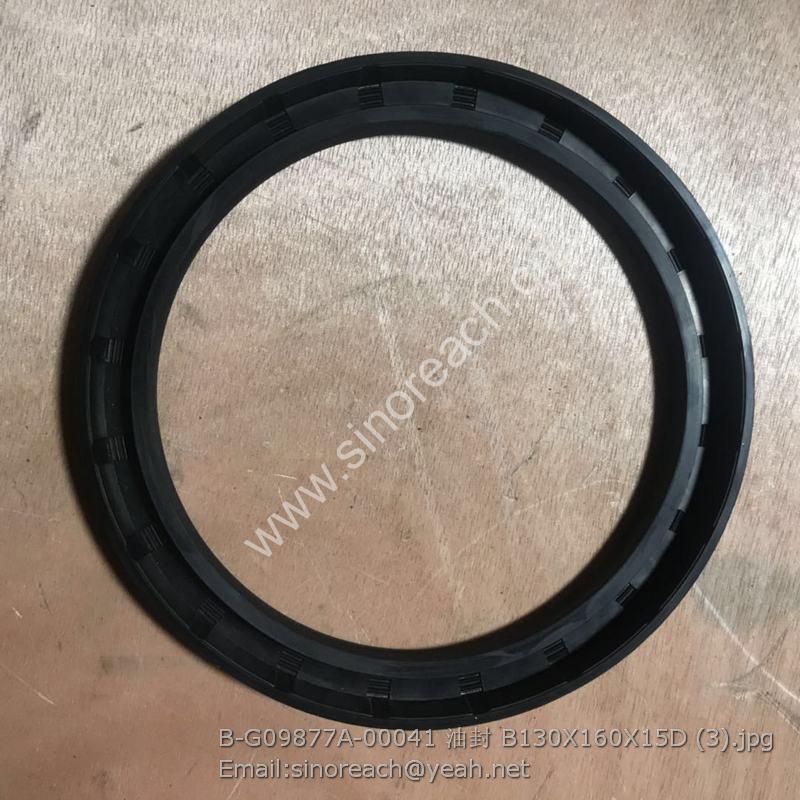

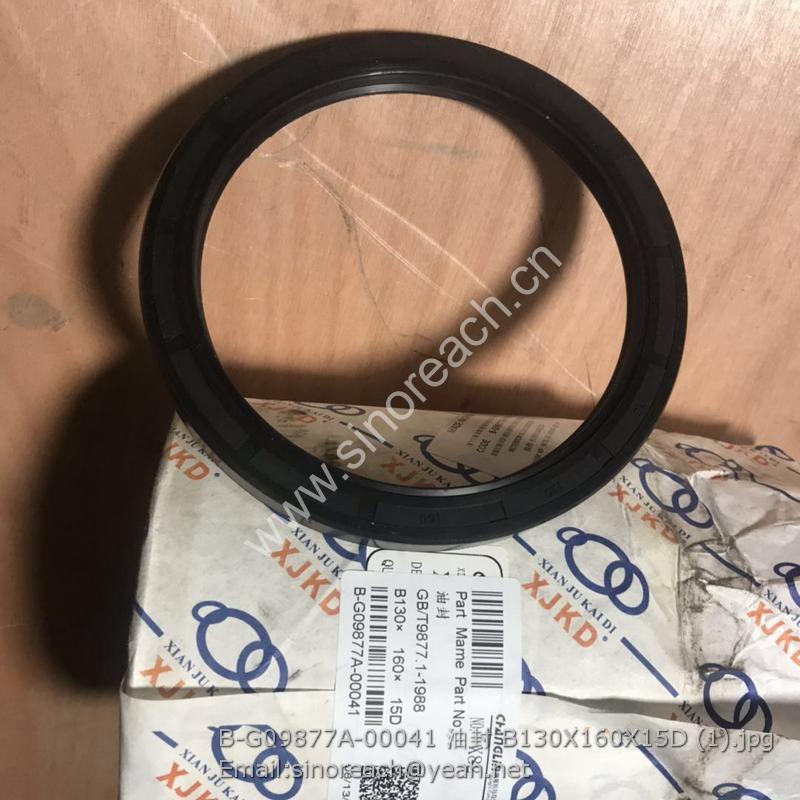

Changlin Wheel Loader Spare Parts B-G09877A-00041 Oil Seal B130*160*15D GB/T9877.1-1988
| 1 | WZ30.4.1.1 | 油尺座 | Dipstick Seat |
| 2 | WZ30.4.1.2 | 油尺 | Dipstick |
| 3 | B-Q020710-00040 | O形圈24×2.4 | O-Ring |
| 4 | B-G057820-00074 | 螺栓M16×130ZnD | Bolt |
| 5 | WZ30.4.1-1 | 接头 | Joint |
| 6 | WZ30.4-3 | 垫圈 | Washer |
| 7 | Z30.1.2-1 | 减震垫 | Spacer |
| 8 | WZ30.4.3 | 左支板 | Left Bracket |
| 9 | B-G00097B-00004 | 垫圈12ZnD | Spacer |
| 10 | B-G057830-00037 | 螺栓M12×35ZnD | Bolt |
| 11 | B-G000930-00003 | 垫圈12 | Washer |
| 12 | Z30.1.2.1 | 减震垫 | Spacer |
| 13 | B-G061700-00014 | 螺母M16ZnD | Nut |
| 14 | B-G061720-00004 | 螺母M16ZnD | Nut |
| 15 | W-03-00134 | 液力变速器 | Transmission |
| 16 | WZ30.4.8 | 接头 | Joint |
| 17 | WZ30C.4B-1 | 散热器到变速箱油管φ16×2050 | Pipe |
| 18 | WZ30.4.4 | 右支板 | Right Bracket |
| 19 | WZ30.4-4 | 线夹 | Clip |
| 20 | WZ30C.4B-2 | 变速箱到散热器油管φ16×1410 | Pipe |
| 21 | B-G057830-00180 | 螺栓M10×80ZnD | Bolt |
| 22 | B-G057830-00030 | 螺栓M12×25ZnD | Bolt |
| 23 | B-G057830-00001 | 螺栓M10×16ZnD | Bolt |
| 24 | B-G000930-00001 | 垫圈10 | Washer |
| 25 | B-G009000-00001 | 螺柱M10×30-10.9ZnD | Stud |
| 26 | W300 | 液力变矩器 | Converter |
| 27 | 连接板 (液力变矩器带) | Plate | |
| 28 | B-G00097B-00002 | 垫圈10ZnD | Washer |
| 1 | WZ30.4.6 | 手柄上盖 | Upper knob |
| 2 | LA42(B)-11/R | 按钮开关 | Switch |
| 3 | WZ30.4.7 | 手柄下盖 | Lower Knob |
| 4 | B-G000790-00002 | 螺钉M8×10ZnD | Screw |
| 5 | B-G00862A-00003 | 垫圈5 | Washer |
| 6 | B-G000650-00003 | 螺钉M5×20ZnD | Screw |
| 7 | WZ30C.4B.1 | 档位操纵杆 | Shift Lever |
| 8 | B-G057830-00132 | 螺栓M6×25ZnD | Bolt |
| 9 | B-G057820-00048 | 螺栓M12×65ZnD | Bolt |
| 10 | B-G00097B-00004 | 垫圈12ZnD | Washer |
| 11 | WZ30.4-5 | 半圆键 | Key |
| 12 | B-G008890-00002 | 螺母M12ZnD | Nut |
| 13 | WZ30.4-6 | 档位操纵杆拉簧 | Spring |
| 14 | B-G00097B-00021 | 垫圈6ZnD | Washer |
| 15 | WZ30.4.5 | 操纵杆护套 | Boot |
