Description

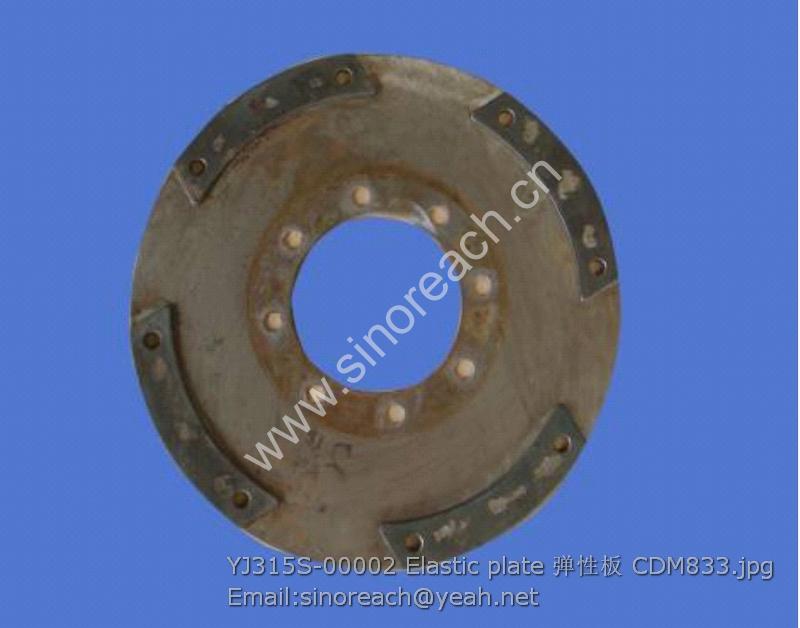

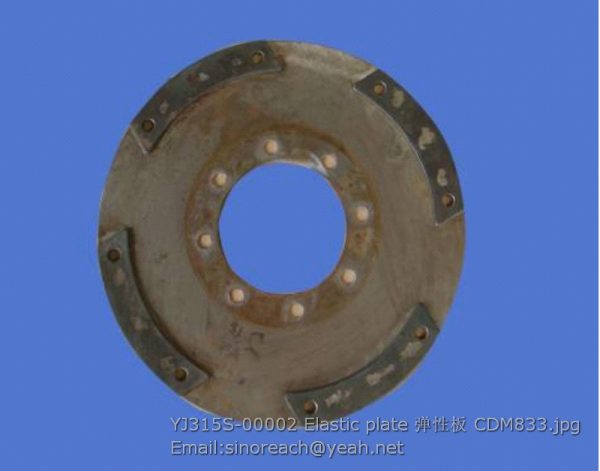

YJ315S-00002 Elastic plate for LONGKING CDM833 spare parts

GB890-80 六角尼龙锁紧螺母 M33×1.5 Nylon insert self-lock nut M33×1.5 2
403303 垫圈 Washer 2 LG853.03.01.03-002
GB1235-76 O型橡胶密封圈 Ф52×5.7 O-ring Ф52×5.7 2
403317 垫片 Gasket 2 LG853.03.01.03-008
403301D 后输出法兰 Rear output flange 1 LG853.03.01.03-001
GB1235-76 O型橡胶密封圈 130×5.7 O-ring Ф130×5.7 4
403304B 油封座 Seal holder 1 LG853.03.01.03-003
HG4-692-67 骨架油封 SG70×95×12 Framed seal SG70×95×12 2
GB893.1-84 挡圈 130 Spacer 130 2
GB276-82 球轴承 6312 Ball bearing 6312 2
403314 输出轴 Output shaft 1 LG853.03.01.03-005
403311J 输出轴齿轮 Output shaft gear 1 LG50EX.03.01.01-001
GB283-94 滚柱轴承 NUP312E Roller bearing NUP312E 1
403305 隔离套 Separating hood 1 LG853.03.01.03-006
403316B 前输出法兰 Front output flange 1 LG855.03.01.01-001
403304C 油封座 Seal holder 1 LG853.03.01.03-007

402223 螺塞 ZG3/4″ Plug ZG3/4″
永久磁铁 Ф80 Permanent magnet Ф80
403405A 油底壳垫板 Oil pan pad
403406 油底壳胶垫 Oil pan rubber pad
403403-404A 滤网支架 Screen bracket
GB/T93 垫圈 6 Washer 6
GB/T5780 螺栓 M6×25 Bolt M6×25
430401-402 油底壳体 Oil pan body
GB/T93 垫圈 Washer
GB/T5780 螺栓 M10×25 Bolt M10×25

403702 螺栓 Bolt
403106 垫圈 Washer
403727 压力表接头 Pressure gauge connector
403704 压力阀杆 Pressure valve stem
403725 弹簧座 Spring holder
403724 弹簧 Spring
403723 固定套或弹簧 Bush/spring
403722 滑块 Slider
403721 垫圈 Washer
403720 螺栓 Bolt
403706 弹簧 Spring
403705 刹车阀杆 Brake valve stem
403718 圆柱塞 Plug
GB/T1235-76 O型圈 Ф13×1.9 O-ring Ф13×1.9
403719 螺栓 Bolt
403717 螺母 Nut
403712 气阀座 Air valve seat
403714 弹簧 Spring
403713 气阀杆 Air valve stem
403715 Y型密封圈 32×40 Y-ring 32×40
403716 气阀体 Air valve body
403701 阀体 Valve
403707 弹簧 Spring
GB/T308 钢球 Ф1/2˝ Steel ball Ф1/2˝
402001 垫片 Spacer
403710 螺栓 Bolt
