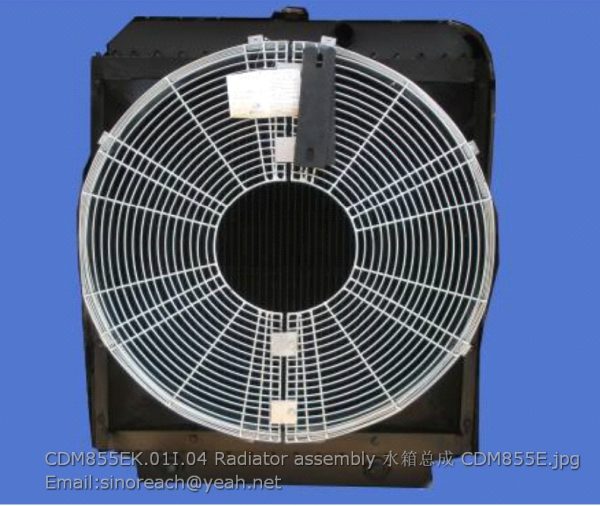

Wheel Loader Parts Plate CDM855EK.01I.04 Radiator assembly for LONKING CDM855E
| LG50F.09002A |
手控制动阀出气接头 |
Control valve air outlet connector |
3 |
LG50EX.09-001 |
| GB/T1002 |
紫铜密封垫圈 Ф10 |
Copper seal washer Ф10 |
1 |
|
| GB/T93 |
垫圈 16 |
Washer 16 |
2 |
|
| GB/T97.1 |
垫圈 16 |
Washer 16 |
2 |
|
| GB/T5783 |
螺栓 M16×45 |
Bolt M16×45 |
2 |
|
| LG50F.09007-008A |
驻车制动气室固定座 |
Parking brake air chamber holder |
1 |
LG50EX.09.04 |
| LG50F.09003A |
切断气缸进气接头 |
Cutoff cylinder air inlet connector |
2 |
LG50EX.09-003 |
| GB/T1002 |
紫铜密封垫圈12 |
Copper seal washer 12 |
2 |
|
| QZ50 |
驻车制动气室 |
Parking brake air chamber |
1 |
LG50EX.09.02 |
| LG50F.09004A |
制动盘 |
Brake disc |
1 |
|
| TC5Z(A) |
驻车制动器 |
Parking brake |
1 |
|
| GB/T5786 |
螺栓 M16×1.5×45 |
Bolt M16×1.5×45 |
8 |
|
| GB/T93 |
垫圈 16 |
Washer 16 |
1 |
|
| LG50F.09005A |
制动钳总成固定板 |
Brake caliper assembly securing plate |
1 |
|
| GB/T5783 |
螺栓 M16×50 |
Bolt M16×50 |
3 |
|
| GB/T5783 |
螺栓 M14×50 |
Bolt M14×50 |
4 |
|
| GB/T93 |
垫圈 14 |
Washer 14 |
4 |
|
| 90C/-C/8-I-L1800 |
手控制动阀至驻车制动气室软管 |
Hose from control brake valve to air chamber |
1 |
|
| XZ |
切断气缸 |
Cutoff cylinder |
1 |
LG50EX.09.03 |
| 90C/-C/8-I-L1400 |
手控制动阀至切断气缸软管 |
Hose from control valve to cutoff cylinder |
1 |
|
| QZ50 |
手控制动阀 |
Manual control valve |
1 |
LG50EX.09.01 |
| LG50F.09001A |
手制动阀进气接头 |
Control valve air inlet connector |
1 |
LG50EX.09-002 |
|
前车架总成 |
Front frame assembly |
1 |
|
| |
后车架总成 |
Rear frame assembly |
1 |
|
| GB/T5782 |
螺栓M12×110 |
Bolt M12×110 |
8 |
GB/T297-1994 |
| GB/T93 |
垫圈12 |
Washer 12 |
22 |
LG853.10-008 |
| GB/T6170 |
螺母M12 |
Nut M12 |
8 |
LG853.10-007 |
| GB297-84 7515E |
轴承32215 |
Bearing 32215 |
4 |
|
| 510014C |
端盖 |
End cover |
1 |
|
| 510012C |
铰接销 |
Hitch pin |
2 |
|
| GB/T5783 |
螺栓M20×35 |
Bolt M20×35 |
2 |
|
| GB/T93 |
垫圈20 |
Washer 20 |
2 |
|
| 510011C |
压板 |
Press plate |
2 |
LG853.10-006 |
| GB/T13871-1992 |
FB形油封75×100×12 |
FB-type oil seal75×100×12 |
2 |
|
| 510013C |
上轴承盖 |
Upper bearing cover |
2 |
LG853.10-005 |
| 510015C |
下轴承盖 |
Lower bearing cover |
2 |
LG853.10-004 |
| 510018C |
调整垫 |
Shims |
2 |
LG853.10-003 |
| LG50F.10020A |
上轴套 |
Upper shaft sleeve |
1 |
LG853.10-001 |
| 510017C |
下轴套 |
Lower shaft sleeve |
1 |
LG853.10-002 |
| GB/T13871-1992 |
FB形油封85×110×12 |
FB-type oil seal 85×110×12 |
2 |
|
| GB/T5783 |
螺栓M12×35 |
Bolt M12×35 |
14 |
|
| LG855.10-006 |
调整垫圈 |
Spacer |
2 |
|
| LG853.10-022 |
下端盖 |
Lower end cover |
1 |
|
| LG50EX.10.01 |
前车架 |
Front frame |
1 |
|
| GB/T5783 |
螺栓M10×20 |
Bolt M10×20 |
4 |
|
| GB/T93 |
垫圈10 |
Washer 10 |
4 |
|
| LG855.10001A |
盖板 |
Cover plate |
1 |
LG855.10-001 |
| LG50F.10002-003A |
翻斗缸后销轴焊合 |
Rear pin weldment of tilt cylinder |
1 |
LG855.10.04 |
| GB/T1152 |
油杯M10×1 |
Oil cup M10×1 |
13 |
JB/T7940.1-1995 |
| GB/T5783 |
螺栓M20×35 |
Bolt M20×35 |
5 |
|
| GB/T93 |
垫圈20 |
Washer 20 |
5 |
|
| GB/T97.1 |
垫圈20 |
Washer 20 |
5 |
|
| LG50F.10005-005A |
动臂上销轴焊合 |
Upper pin weldment of lift arm |
2 |
LG855.10.05 |
| LG50F.10007-008A |
动臂缸后销轴焊合 |
Rear pin weldment of lift cylinder |
2 |
LG855.10.06 |
| LG50F.10015-016A |
前转向销轴焊合 |
Front turn pin weldment |
2 |
LG855.10.11 |
| LG50F.10017A |
转向缸前垫套 |
Front bush of steering cylinder |
2 |
LG855.10-005 |
| LG50F.10018-018A |
右前转向销注油管 |
Right front turn pin oil filling pipe |
1 |
LG855.10.12 |
| LG855.10.13 |
左前转向销注油管 |
Left front turn pin oil filling pipe |
1 |
|
