Description

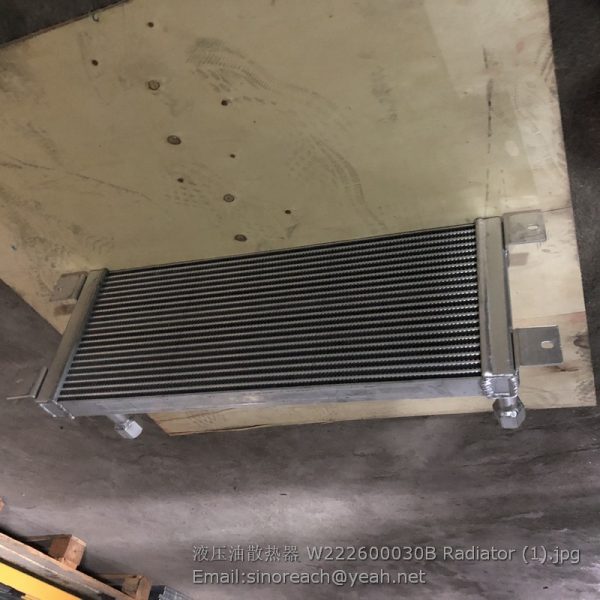

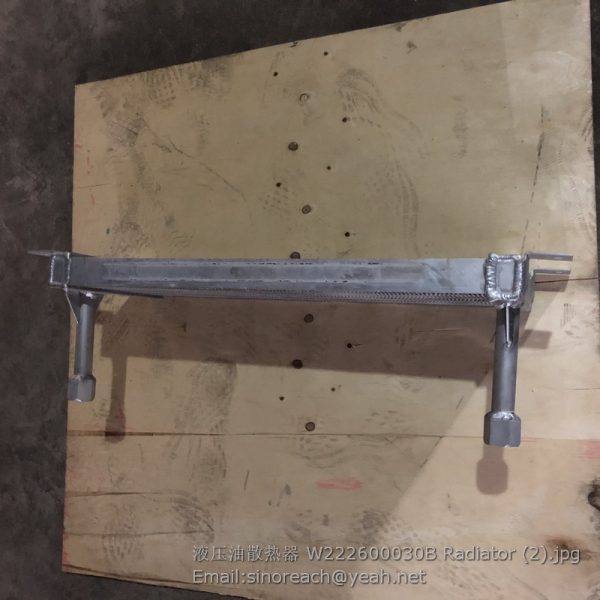

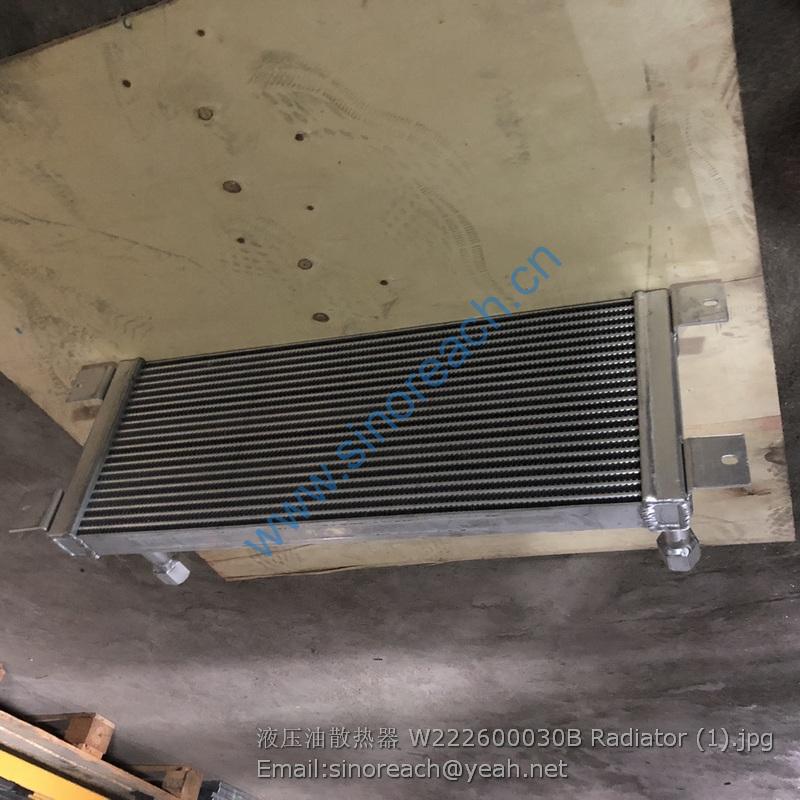

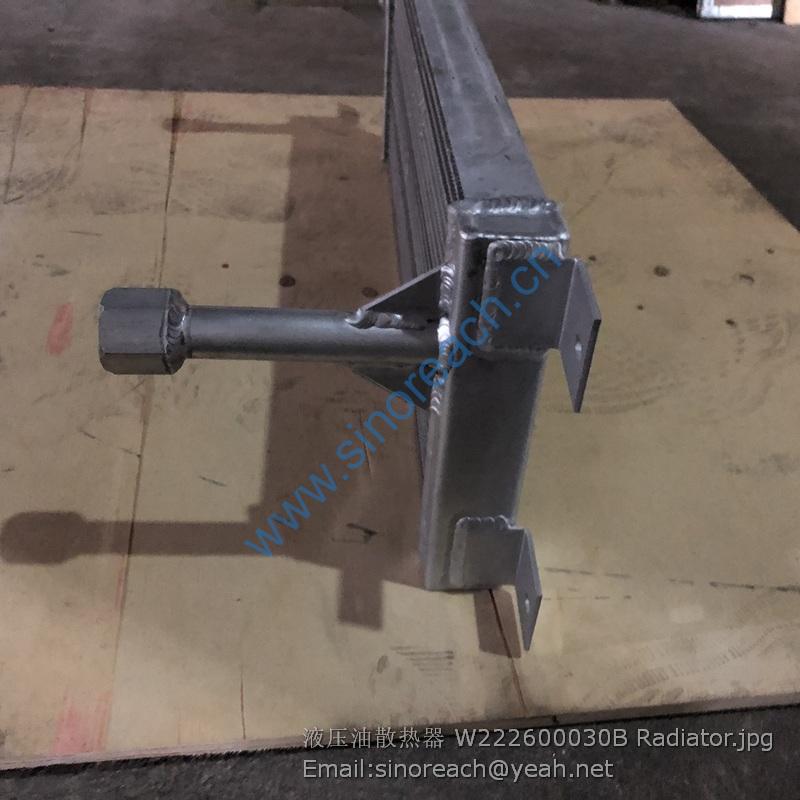

W222600030B Radiator
1 前驱动桥(美驰) Xuzhou front axle W046500000
（ 18MRF-
C216BR） 1
2 双头螺柱 Double thread stud Z420100060 8
3 螺母 M16×1.5 Nut M16X1.5 B050411614 28
4 垫圈 16 Washer 16 B060111604 28
5 后传动轴 Rear drive shaft Z5B05900100 1
6 主传动轴用螺栓 Main drive shaft bolt Z420100040 8
7 螺母 M14×1.5 Nut M14X1.5 B050411412 12
8 垫圈 14 Washer 14 B060111404 16
9 传动轴主 Main drive shaft W041100000 ZL50D.19 1
10 后驱动桥(美驰) Xuzhou rear axle W046600000
（ 18MRF-
C216BS） 1
11 后传动轴用螺栓 Rear drive shaft bolt Z420100020 4
12 后桥过渡盘 Rear axle connection plate Z420100030 1
13 后桥过渡盘用螺栓 Rear axle plate bolt Z420100010 4
14 前传动轴 Front drive shaft Z5B05900200 1
15 螺栓 M14×1.5×35 Bolt M14X35 B041111435 4
16 螺栓 Bolt Z420100050 8
1 轮边减速器总成 Wheel-end reduction W046500001 83310600 2
2 轮辋螺母(左旋) Wheel rim Nut (L) W041400651 80041003 12
3 轮辋螺栓(左旋) Wheel rim Bolt (L) W041400651 75502324 12
4 制动器总成 Brake assembly W041200000 84741300 4
5 桥壳总成 Housing assembly W046503000 91110023 1
6 螺塞 M24×1.5 Plug M24×1.5 W041400941 75500197 2
7 组合密封垫 Gasket B060802403 53200005 2
8 螺栓 M14×1.5×60 Bolt M14×1.5×60 B041011460 50011012 2
9 通气塞 Plug W041400931 56100001 1
10 半轴 Axle shaft W041400221 79000142 2
11 轮辋螺栓 M22X1.5X90 Wheel rim Bolt M22X1.5X90 W041400652 75502318 12
12 轮辋螺母 22X1.5 Wheel rim Nut 22X1.5 W041400652 80041001 12
13 螺栓 Bolt 14X1.5X35 Bolt 14X1.5X35 B041111435 50012017 10
14 主减速器总成(前桥) Main reducer W041400701 82310500 1
15 垫圈 14 Washer 14 B060111404 52020005 14
16 螺栓 M14×1.5×40 Bolt M14×1.5×40 B041111440 50012019 2
17 销 A12×20 Pin A12×20 B080111220 51270005 3
18 防尘罩 Dust boot W046505000 80303004 2
19 垫圈 10 Washer 10 B060411002 52000002 8
20 垫圈 10 Washer 10 B060111003 52020003 8
21 螺栓 M10X20 Bolt M10X20 B040911020 50009011 8
1 轮边减速器总成 Wheel-end reduction W046500001 83640300 2
2 轮辋螺栓 M22X1.5X90 Wheel rim bolt M22X1.5X90 W041400652 75502318 12
3 轮辋螺母 22X1.5 Wheel rim Nut 22X1.5 W041400652 80041001 12
4 单钳盘制动器总成 Brake caliper assembly W041200000 72006035 2
5 桥壳总成 Housing assembly W046503000 91110023 1
6 螺塞 M24X1.5 Plug M24X1.5 W041400941 75500197 2
7 组合密封垫 Compound seal B060802403 53200005 2
8 通气塞 Z1/8 ″ Plug W041400931 56100001 1
9 半轴 Axle shaft W041400221 79000142 2
10 轮辋螺栓 Bolt Rim bolt W041400651 75502324 12 M22X1.5LHX90
11 轮辋螺母 Rim nut W041400651 80041003 12 M22X1.5LH
12 垫圈 14 Washer 14 B060111404 52020005 14
13 螺栓 Bolt 14X1.5X35 B041111435 50012017 10
14 主减速器总成 Carrier assembly W041500011 82311600 1
15 螺栓 M14×1.5×40 Bolt M14×1.5×40 B041111440 50012019 2
16 螺栓 Bolt B041011460 50011012 2 M14x1.5×60
17 销 Pin B080111220 51270005 3
1 锁紧螺母 Locknut W041401091 75500269 1
2 连接法兰组件 Flange W041400441 75102017 1
3 螺栓 M14x1.5×45 Bolt M14x1.5×45 B041111445 50011011 7
4 垫圈 14 Washer14 B060111404 52020005 7
5 螺栓 M12x1.5×55 Bolt M12x1.5×55 B041011255 50011008 1
6 垫圈 12 Washer 12 B060111203 52020004 1
7 油封座 002E Seat 002E W041400091 75201770 1
8 主减油封 Oil seal W041401461 80X100X10 单唇 1
9 轴承座 Bearing carrier W041400871 75201767 1
10 调整垫片 Trimmed gasket W041401141 75202107 1
11 轴承 27314E Bearing 27314E B120400017 54100015 1
12 调整隔套 Spacer sleeve W041400501 75201730 1
13 轴承 27313E Bearing 27313E B120400016 54100014 1
14/35 主传动齿轮副（前桥） Gear W041400771 1
15 轴承 142807 Bearing142807 W110010110 54500006 1
16 主减速器壳体 Main reducer case W041400271 79800027 1
17 锁紧片 LOCK PLATE W046100100 75200054 2
18 螺栓 M10X20 Bolt M10X20 B040911020 50004003 2
19 螺栓 M14X1.5X50 Bolt M14X1.5X50 W041401361 75500003 12
20 螺母 M14x1.5 Nut M14x1.5 W041401361 75501992 12
21 凸缘螺母 M16*1.5 NutM16*1.5 W041401346 75501993 8
