Description

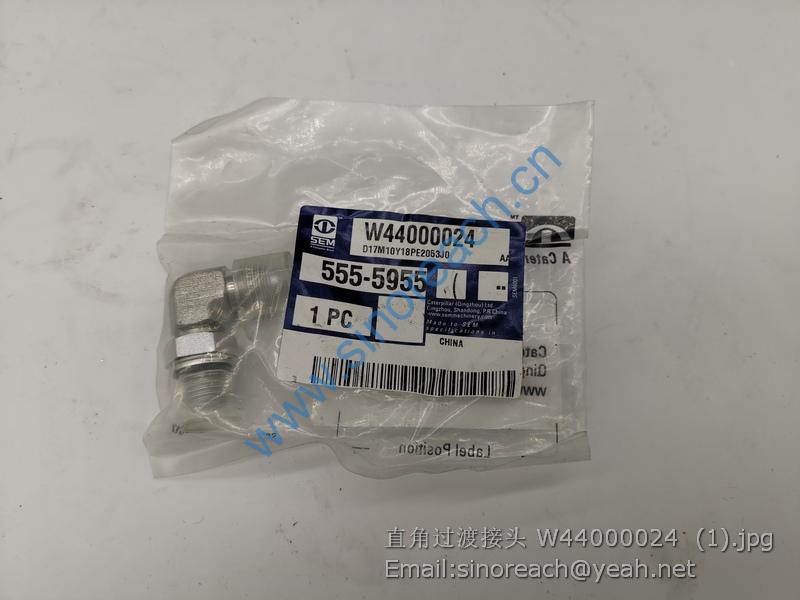

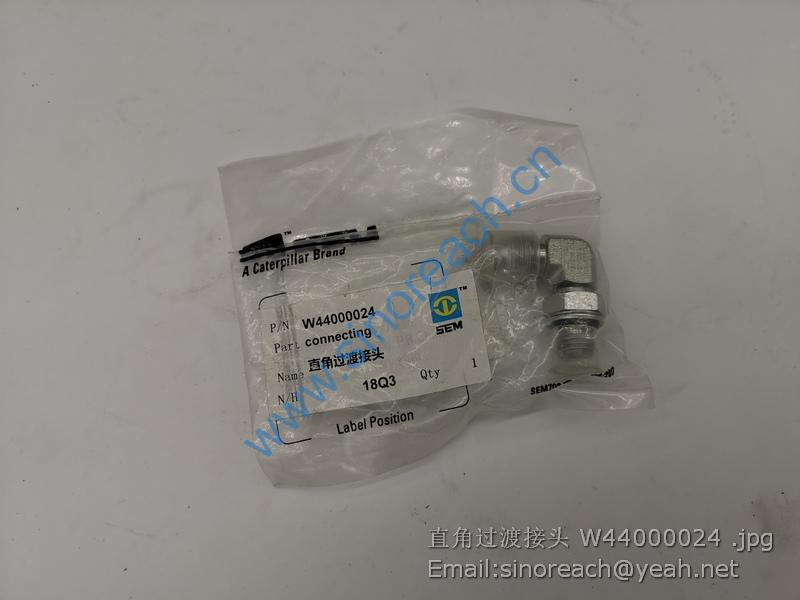

W44000024 Transition joints SEM 5555955

1 Washer
B060411002 10 GB/T97.1-2002 2.0
2 Bolt
B040911020 M10×20 GB/T5783-2000 2.0
3
Two through AS MG19025039 1.0
4
Three through AS MG19025041 1.0
5 Nut
B050330807 M8 GB/T6170-2000 3.0
6 Bolt
B040910830 M8×30 GB/T5783-2000 3.0
7 Washer
B060410802 8 GB/T97.1-2002 3.0
8
Brke valve W44000023 SG50A-3514002 1.0
9 Air Brake Valve Adapter
Z5B361032 4.0
10 Four-way adapter
MG19025029 1.0
11
Transition joints W44000024 1.0
12
Three through AS MG19025037 1.0
13 Brake hose assembly
MG19025057 1.0
14 Brake hose assembly
MG19025011 1.0
15 Clip
W44000062 2.0
16 M18 Brake Hose Group
MG19025022 1.0
17
Brake Hose Group MG19025052 1.0

1 Unpowered Brake Valve Z530220250 1.0
2 Unpowered Brake Valve Plug W110000090 QZ50-3526002 1.0
3 Right Connector Z310340220 ZL30D-34-8 1.0
4 Unpowered Brake Valve Inlet Adapter Z320220060 ZL30F.22-11 1.0
5 M14 Brake Hose (L=1200) Z3b373018 1.0
6
M14 Brake Hose Group （High
Pressure L=650）
Z320220400 ZL30F.22.17 30F 1.0
7 Single Clip φ14 W44000031 04434-51410 2.0
8 M14 Brake Hose Group Z5b07100700 1.0
9 Adapter MG19025055 1.0
10
Four-Way Connecter Group
MG19025024 1.0
11
M14 Brake Hose Group
B060411002 10 GB/T97.1-2002 4.0
12
2*M14 Adapter
MG19025056 1.0
13
M18 Brake Hose Group
W44000025 S1K-14 2.0
14
Clip
W44000060 2.0
15
Bolt M10×20
B040911020 M10×20 GB/T5783-2000 4.0
16
Washer 10
MG19025031 1.0
17
Hollow Bolt
MG19025045 1.0
18
Combined Seal Washer A12
B060811203 A12 JB982-77 2.0
19
Parking Brake Air Chamber
W44000037 1.0

1 Fixed clip
MG19025026 2.0
2 Combine seal gasket B060811403 A14 JB982-77 4.0
3 Brake pipe AS
MG19025008 1.0
4 Single Clip
W44000031 04434-51410 4.0
5 Brake hose assembly
MG19025012 2.0
6 Three through AS
Z5B361004 2.0
7 air inlet or outlet fitting in fuel water separator
Z310340020 ZL30D-34-3 2.0
8 Transition joints
W44000024 4.0
9 Air boosting pump
W44007000 SG60A-3510002 2.0
10 Harness cover
Z320210020 ZL30F.21-2 4.0
11 Brake hose assembly
MG19025049 2.0
12 Bracket
MG19025010 2.0
13 pressure tap
W152200000 TC-D10 2.0
14 Four through AS
MG19025029 2.0
15 Parking Brake Air Chamber Adapter
Z320220020 ZL30F.22-5 2.0

1 M18 Brake Hose Group
MG19025046 2.0
2 Air Compressor Outlet Hose Group
Z5B331001 1.0
3 Air compressor outlet hose support
Z5B331002 1.0
4 U bolt
Z310530100 1.0
5 M18 Brake Hose Group
Z5B361006 1.0
6 Clip
W44000060 2.0
7 M18 Brake Hose Group
MG19025050 1.0
8 Air Dryer Group
W44005000 HP3511CB-00 1.0
9 Bracket
MG22025001 1.0
10 Transition joints
W44000055 1.0
11 Transition joints
W44000024 1.0
12 Brake hose
Z510100830 1.0
13 Safe valve
W44000007 1.0
14 air inlet or outlet fitting in fuel water separator Z310340020
ZL30D-34-3 4.0
15 Brake hose assembly
MG22025004 1.0
16 bounce-back store gas canister AS
W44006000 HP3511CB-18 1.0
17 Bracket
MG22025003 1.0
18 Connection fitting
Z310340050 ZL30D-34-26 1.0
19 M18 Brake Hose Group
MG19025051 1.0
