Description

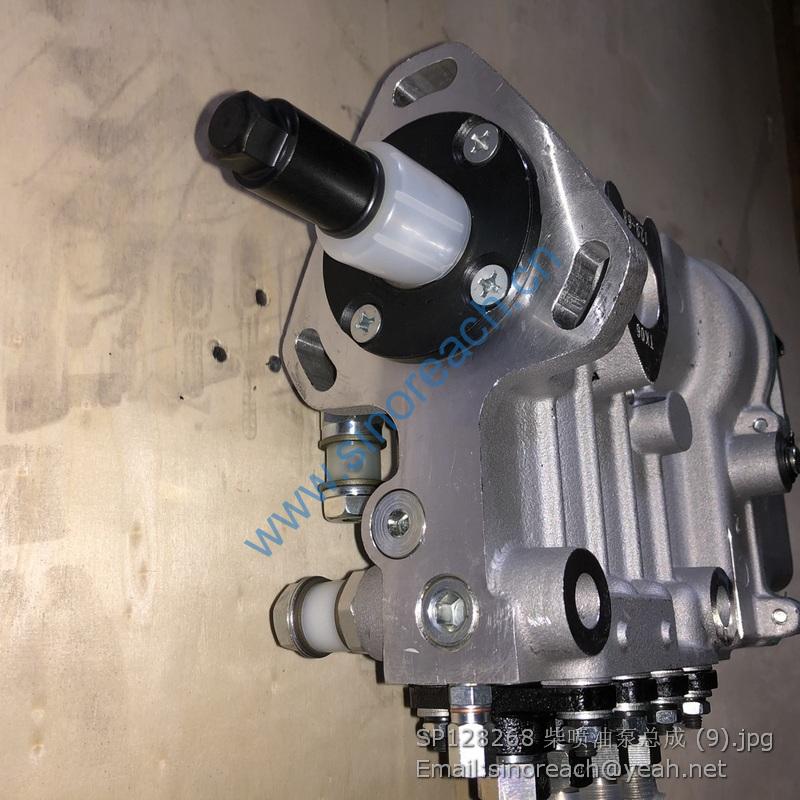

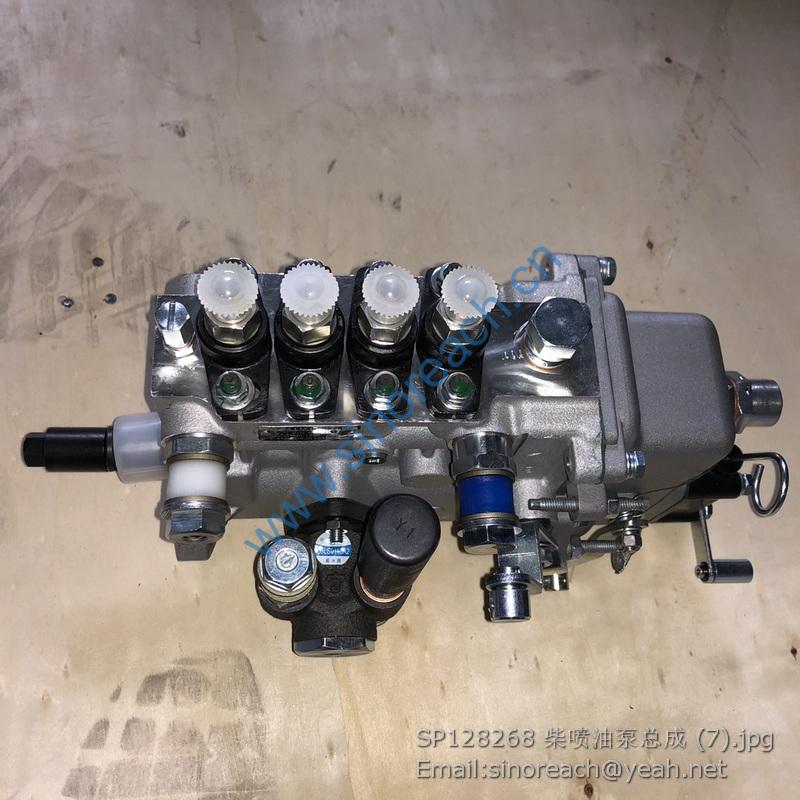

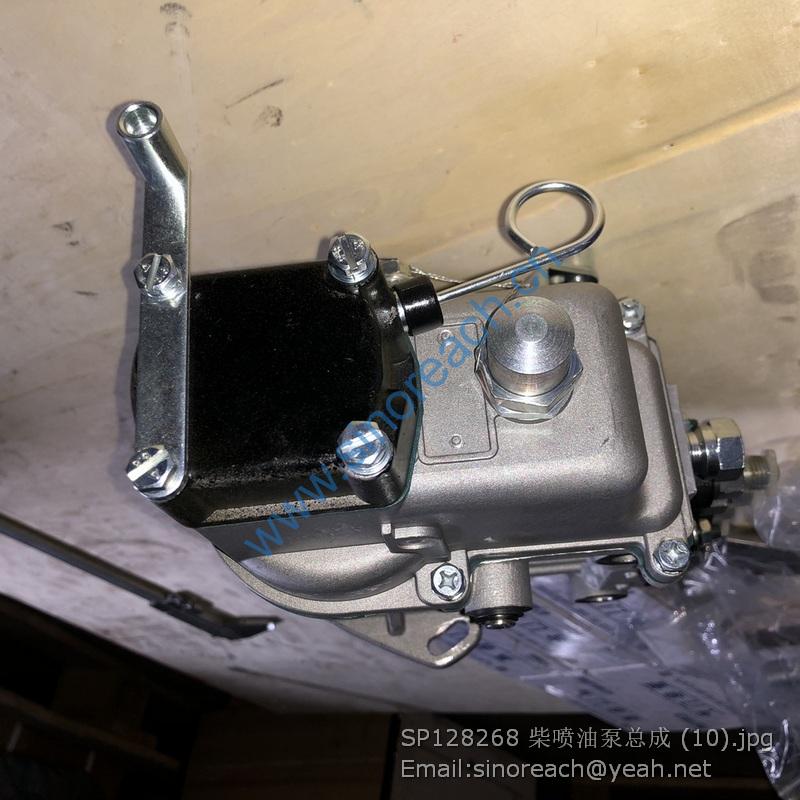

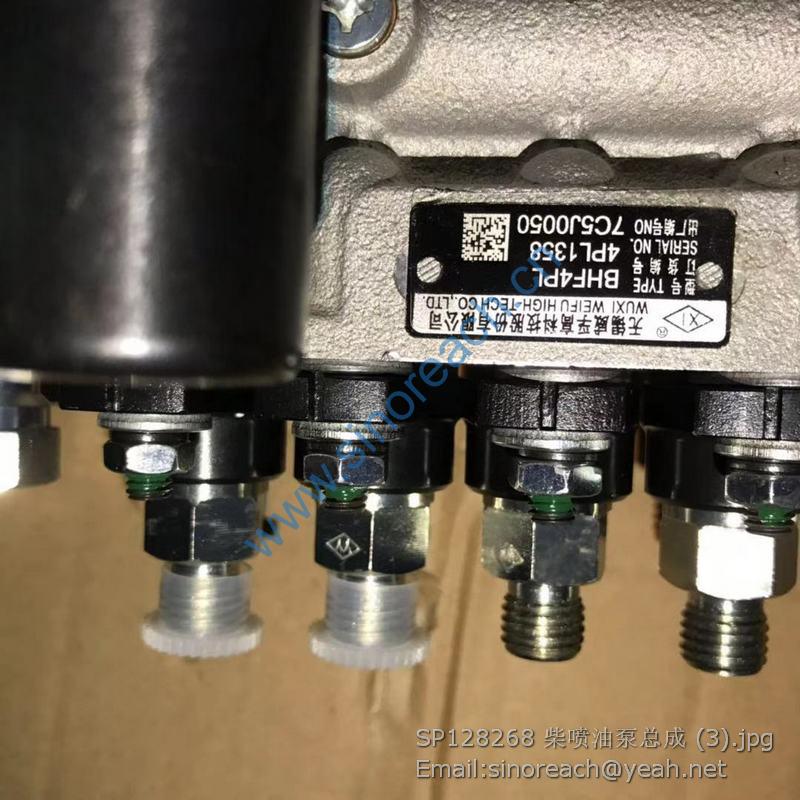

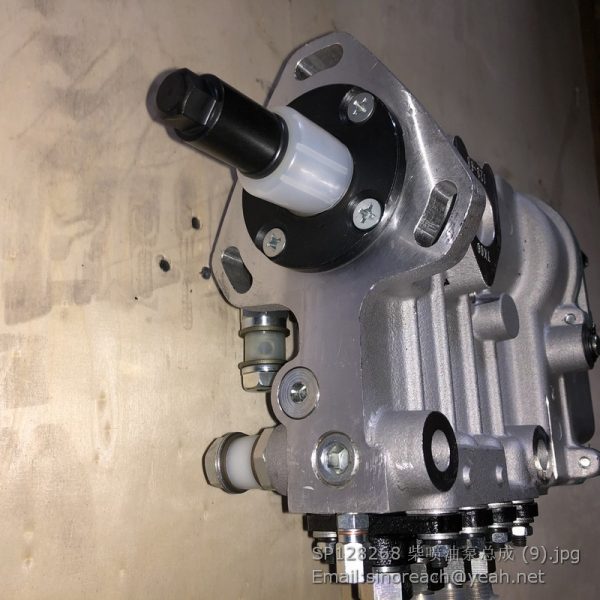

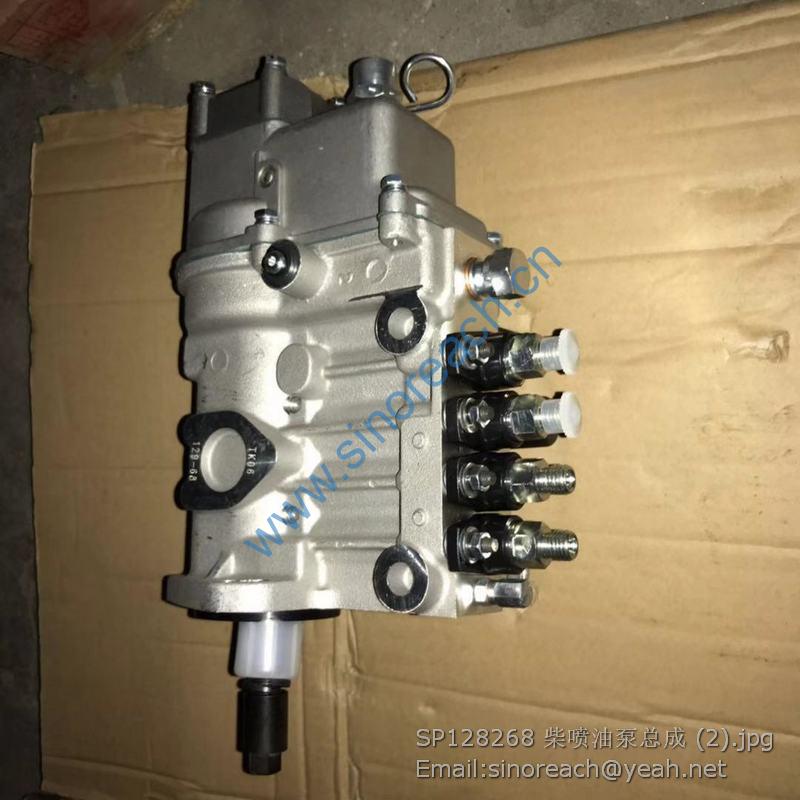

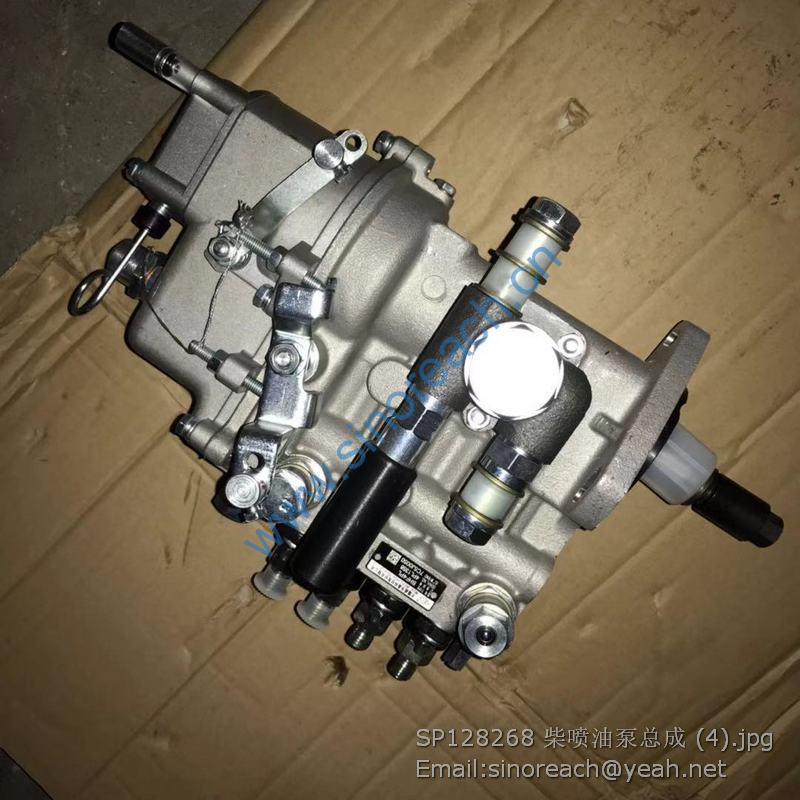

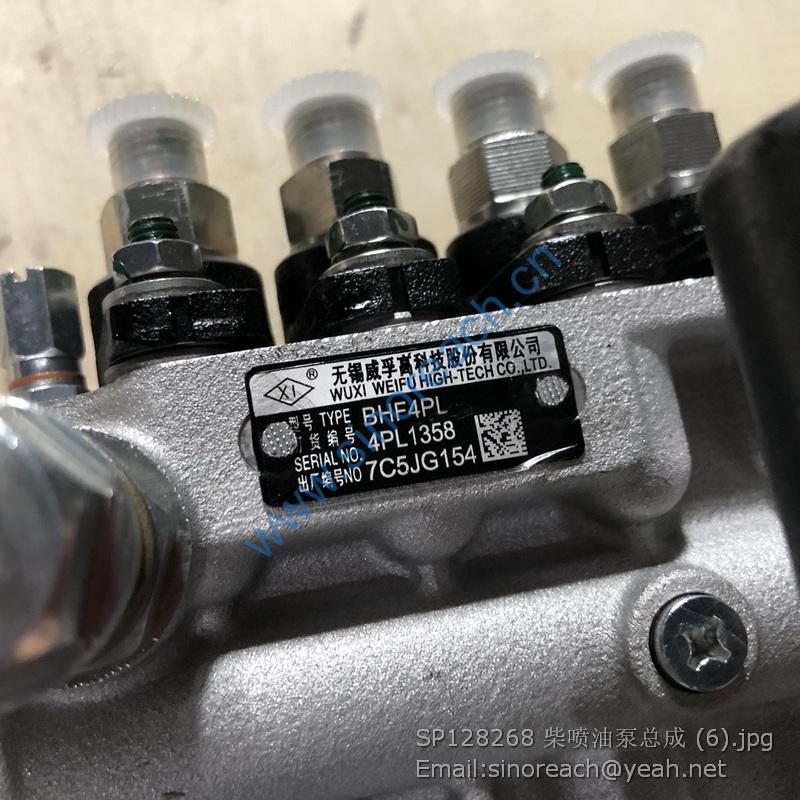

SP128268 Diesel fuel injection pump assembly
1 4090000130 钢球GB308-8.5-GCr15 Ball
Y 2
2 29050013911 活塞环 Piston ring
Y 3
3 4021000163 轴承25581/25520 Bearing
Y 1
4 29050014131 挡圈50 Retaining ring
Y 1
5 29050014291 止推垫片 Shim
Y 1
6 4110000627 轴承NTA-3244 Bearing
Y 2
7 29050014231 止推垫片 Shim
Y 2
8 29050014271 齿轮总成R41 Gear
Y 1
9 4110000629 轴承K50*55*17H Bearing
Y 4
10 29050014261 隔套 Spacer sleeve
Y 1
11 4110000628 轴承NTA-3446 Bearing
Y 2
12 29050013931 止推垫片 Shim
Y 2
13 29050013841 卡环 Retaining ring
Y 2
14 29050013831 卡环 Retaining ring
Y 2
15 29050014181 受压盘 Pressure disc
Y 2
16 29050014171 主动摩擦片 Friction disc
Y 15
17 29050015521 从动摩擦片 Friction disc
Y 3
18 29050014161 从动摩擦片 Friction disc
Y 12
19 29050013951 隔离环 Spacer ring
Y 2
20 29050014151 离合器轮毂 Clutch hub
Y 1
21 29050013981 弹簧 Spring
Y 1
22 29050014101 活塞环 Piston ring
Y 2
23 29050014091 活塞环 Piston ring
Y 2
24 29050014111 活塞 Piston
Y 2
25 29050013971 活塞环 Piston ring
Y 2
26 29050013991 卡环 Retaining ring
Y 2
27 29050014071 隔离架 Separator
Y 1
28 29050014051 K34轴 Clutch shaft
Y 1
29 29050014121 弹簧 Spring
Y 1
30 29050014141 离合器轮毂 Clutch hub
Y 1
31 29050014311 隔套 Spacer sleeve Y 1
32 29050014301 齿轮总成R42 Gear Y 1
33 29050014321 定位环 Locating ring Y 1
34 4021000161 轴承25590/25520/Q Bearing Y 1
35 4030000808 O形圈GB3452.1-75.0*3.55G-FPM O-ring Y 1
36 4030000594 油封45*65*10 Sealing ring Y 1
37 29050013511 调整垫片 Shim Y 6
38 29050013521 调整垫片 Shim Y 4
39 29050013531 调整垫片 Shim Y 2
40 29050013501 轴承保持架 Bearing seat Y 1
41 29050015471 垫圈8 Washer Y 6
42 4011000724 螺栓GB5783-M8*25-8.8 Bolt Y 6
43 29050026141 调整垫片 Shim 1 29050015321 弹簧 Spring Y 1
2 29050015311 阀体 Valve body N 1
3 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 1
4 4016000281 开口销GB91-4*32EpZn-Q235B Split pin Y 1
5 4090000127 钢球GB308-15-GCr15 Ball N 14030000810 O形圈GB3452.1-11.8*1.80G-FPM O-ring Y 6
2 4030000058 垫圈JB1002-18-T2 Washer Y 2
3 29050014221 螺栓 Screw Y 1
4 29050013121 螺栓 Screw Y 2
5 4030000056 垫圈JB1002-12-T2 Washer Y 7
6 4040000019 O形圈LGB168-21324 O-ring Y 2
7 29050014201 直接头 Nipple Y 1
8 4030000809 O形圈GB3452.1-12.5*1.80G-FPM O-ring Y 1
9 29050012991 螺栓 Screw Y 1
10 29050013221 管 Hose assembly Y 1
11 29050013621 回油管 Tube Y 1
12 29050013131 胶管 Hose assembly Y 1
13 29050013151 密封垫 Gasket Y 1
14 29050012981 变矩器润滑阀 Lubricating oil valve Y 1
15 29050015471 垫圈8 Washer Y 11
16 4011000718 螺栓GB5782-M8*60EpZn-8.8 Screw Y 4
17 29050013771 管 Tube Y 1
18 4011000717 螺栓GB5782-M8*60-8.8 Screw Y 3
19 29050018421 销 Pin Y 2
20 29050015461 垫圈6 Washer Y 4
21 4011000713 螺栓GB5782-M6*40-8.8 Screw N 2
22 4041001459 螺塞LGB135-11422 Plug Y 1
23 4011000715 螺栓GB5783-M8*35-8.8 Screw Y 2
24 4030000811 O形圈GB3452.1-14.0*1.80G-FPM O-ring Y 1
25 29050013791 管接头 Nipple Y 1
26 29050013741 配油器 Oil distributor Y 1
27 29050013751 管 Tube Y 1
28 4011000723 螺栓GB5783-M8*20-8.8 Bolt Y 2
29 29050013581 油分流块 Connection block Y 1
30 4011000966 螺栓GB5782-M6*35-8.8 Screw Y 2
