Description

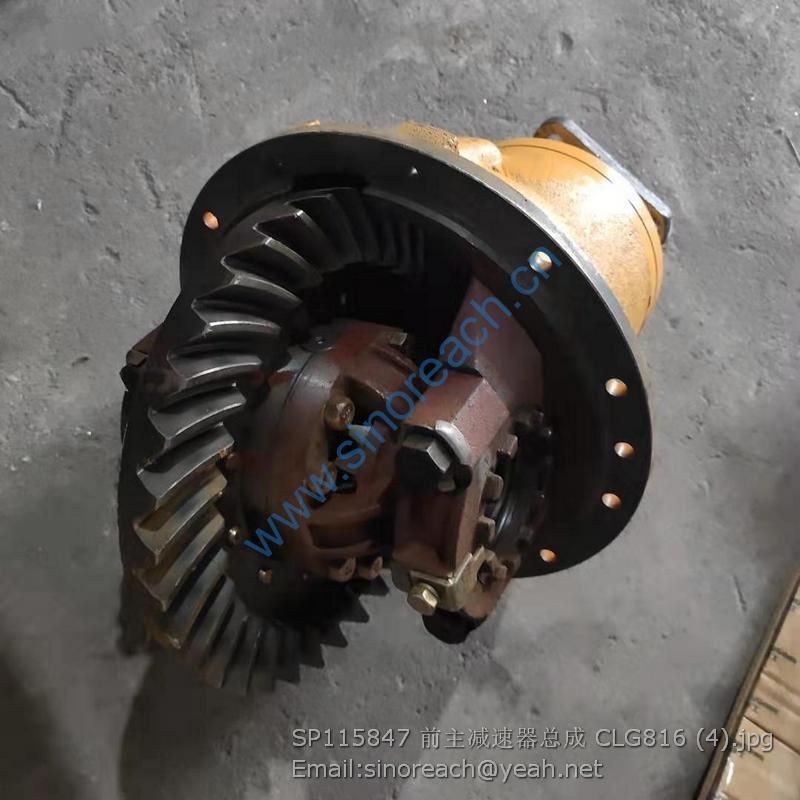

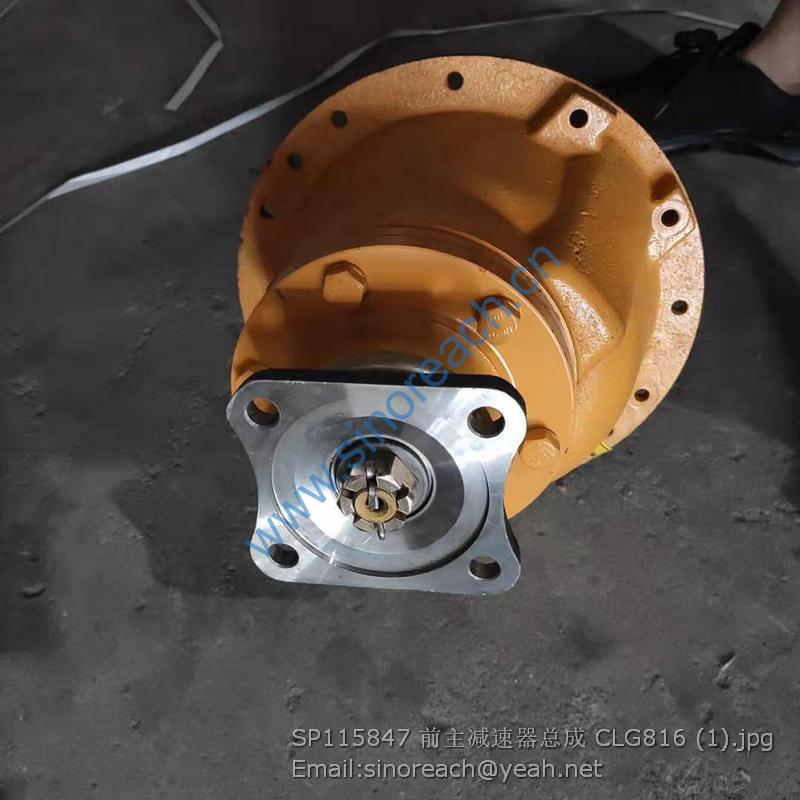

SP115847 FRONT MAIN REDUCER
1 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
2 3050900007 垫圈 Washer Y 1
3 3050900172 垫片 Shim Y 1
4 4030000048 骨架油封HG4-692-SG70*95*10 Sealing ring Y 1
5 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 1
6 4011001318 螺栓GB5782-M14*55flZnyc-8.8-480 Screw Y 7
7 29090007961 垫圈 Washer Y 31
8 29070019901 密封盖 Sealing cover Y 1
9 4021000028 滚动轴承GB297-31310 Roller bearing Y 1
10 29070019911 轴承套 Bearing bushing Y 1
11 4021000139 滚动轴承GB297-31312 Roller bearing Y 1
12 4021000105 滚动轴承GB297-32214 Ball bearing Y 2
13 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 1
14 29070015981 垫圈 Washer Y 1
15 29070019941 调整螺母 Adjusting nut Y 2
16 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2
17 29050015481 垫圈10 Washer Y 2
18 3050900024 锁紧片 Lock washer Y 2
19 4011000345 螺栓GB5786-M14*1.5*30EpZn-10.9 Screw Y 16
20 29070019961 隔套 Sleeve Y 1
21 29070019971 调整垫片 Spacer sleeve Y 1
22 29070019981 调整垫片 Spacer sleeve Y 1
23 29070019991 调整垫片 Spacer sleeve Y 1
24 29070020001 调整垫片 Spacer sleeve Y 1
25 29070020011 调整垫片 Spacer sleeve Y 1
26 29070020021 调整垫片 Spacer sleeve Y 1
27 29070020031 调整垫片 Spacer sleeve Y 1
28 29070020041 调整垫片 Spacer sleeve Y 1
29 3050900011 调整垫片 Shim Y 5
30 29070010611 调整垫片 Shim Y 4
31 29070010621 调整垫片 Shim Y 3
32 29070010631 调整垫片 Shim Y 1
33 29070019891 输入法兰 Flange Y 1
34 29070020052 法兰 Connection flange Y 1
35 3050900058 防尘圈 Sealing ring Y 1
36 29070019951 主从动螺旋伞齿轮 Crown wheel Y 1
37 29070020061 从动螺旋伞齿轮 Crown wheel N 1
38 29070020071 主动螺旋伞齿轮 Crown wheel N 1
39 29070020102 差速器左右壳 Differential housing Y 1
40 29070020601 差速器左壳 Differential housing N 1
41 29070020122 差速器右壳 Differential housing N 1
42 29070019922 托架总成 Center housing Y 1
43 29070020082 托架 Centre housing N 1
44 29070020091 轴承座 Bearing seat Y 2
45 29070019751 垫片18 Washer Y 4
46 4011000951 螺栓GB5785-M18*1.5*75EpZn-10.9 Screw Y 4
47 29070019932 差速器总成 Differential Y 1
48 29070020611 一字轴 Shaft Y 2
49 29070020141 锥齿轮 Differential pinion Y 4
50 29070020151 锥齿轮垫片 Thrust washer Y 4
51 29070020161 半轴齿轮 Differential side gear Y 2
52 29070020171 半轴齿轮垫片 Thrust washer Y 2
53 29070000461 固定销 Pin Y 4
54 4011000964 螺栓GB5785-M14*1.5*70EpZn-10.9 Screw Y 8
1 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
2 3050900007 垫圈 Washer Y 1
3 29070019891 输入法兰 Flange Y 1
4 4030000048 骨架油封HG4-692-SG70*95*10 Sealing ring Y 1
5 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 1
6 4011001318 螺栓GB5782-M14*55flZnyc-8.8-480 Screw Y 7
7 29090007961 垫圈 Washer Y 23
8 29070019901 密封盖 Sealing cover Y 1
9 4021000028 滚动轴承GB297-31310 Roller bearing Y 1
10 29070019911 轴承套 Bearing bushing Y 1
11 4021000139 滚动轴承GB297-31312 Roller bearing Y 1
12 29070019922 托架总成 Center housing Y 1
13 4021000105 滚动轴承GB297-32214 Ball bearing Y 2
14 29070019932 差速器总成 Differential Y 1
15 29070019941 调整螺母 Adjusting nut Y 2
16 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2
17 29050015481 垫圈10 Washer Y 2
18 3050900024 锁紧片 Lock washer Y 2
19 4011000345 螺栓GB5786-M14*1.5*30EpZn-10.9 Screw Y 16
20 29070023881 主从动螺旋伞齿轮 Crown wheel Y 1
21 29070019961 隔套 Sleeve Y 1
22 29070019971 调整垫片 Spacer sleeve Y 1
23 29070019981 调整垫片 Spacer sleeve Y 1
24 29070019991 调整垫片 Spacer sleeve Y 1
25 29070020001 调整垫片 Spacer sleeve Y 1
26 29070020011 调整垫片 Spacer sleeve Y 1
27 29070020021 调整垫片 Spacer sleeve Y 1
28 29070020031 调整垫片 Spacer sleeve Y 1
29 29070020041 调整垫片 Spacer sleeve Y 1
30 3050900011 调整垫片 Shim Y 5
1 29070010611 调整垫片 Shim Y 4
32 29070010621 调整垫片 Shim Y 3
33 29070010631 调整垫片 Shim Y 1
34 3050900172 垫片 Shim Y 1
35 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 1
36 29070015981 垫圈 Washer Y 1
37 29070020082 托架 Centre housing N 1
38 29070020091 轴承座 Bearing seat Y 2
39 29070019751 垫片18 Washer Y 4
40 4011000951 螺栓GB5785-M18*1.5*75EpZn-10.9 Screw Y 4
41 29070020102 差速器左右壳 Differential housing Y 1
42 29070020611 一字轴 Shaft Y 2
43 29070020141 锥齿轮 Differential pinion Y 4
44 29070020151 锥齿轮垫片 Thrust washer Y 4
45 29070020161 半轴齿轮 Differential side gear Y 2
46 29070020171 半轴齿轮垫片 Thrust washer Y 2
47 29070000461 固定销 Pin Y 4
48 4011000964 螺栓GB5785-M14*1.5*70EpZn-10.9 Screw Y 8
49 29090007961 垫圈 Washer Y 8
50 29070020601 差速器左壳 Differential housing N 1
51 29070020122 差速器右壳 Differential housing N 1
52 29070023891 主动螺旋伞齿轮 Crown wheel N 1
53 29070023901 从动螺旋伞齿轮 Crown wheel N 1
54 29070020052 法兰 Connection flange Y 1
55 3050900058 防尘圈 Sealing ring Y 1
1 29070025282 输出轴 Output shaft Y 1
2 29070100301 轮边油封 Sealing ring Y 1
3 29070100321 滚动轴承 Roller bearing Y 2
4 26070000961 轮辋螺栓 Stud Y 10
5 29070025291 圆螺母 Round nut Y 1
6 29070025301 轮毂 Hub Y 1
7 29070009161 定位块 Block Y 1
8 29070025311 行星轮架总成 Planet gear kit Y 1
9 4014000136 螺钉GB70.1-M12*40EpZn-8.8 Screw Y 3
10 29070025351 内齿圈 Ring gear Y 1
11 29070025362 支撑板 Support plate Y 1
12 29070023701 主动摩擦片 Friction disc Y 2
13 29070023681 从动摩擦片 Friction disc Y 3
14 29070020991 活塞密封圈 Sealing ring Y 1
15 29070023711 活塞密封圈 Sealing ring Y 1
16 29070023691 活塞 Piston Y 1
17 29070025371 花键套 Splined sleeve Y 1
18 4015000046 挡圈GB894.1-50-65Mn Retaining ring Y 2
19 4015000408 挡圈GB894.1-42-65Mn Retaining ring Y 1
20 4090000006 钢球GB308-17.462-GCr15 Ball Y 1
21 29070019821 太阳轮 Sun gear Y 1
22 29070027901 挡圈 Retaining ring Y 1
23 29070025381 定位销 Pin Y 6
24 29070020951 弹簧 Spring Y 3
25 29070025322 行星轮架 Planet carrier Y 1
26 29070013181 垫片 Shim Y 8
27 3050900042 挡环 Retaining ring Y 8
28 29070025331 行星齿轮轴 Planet gear shaft Y 4
29 4090000003 滚针GB309-4*38-GCr15 Needle roller Y 112
30 26070001091 挡板 Baffle Y 4
