Description

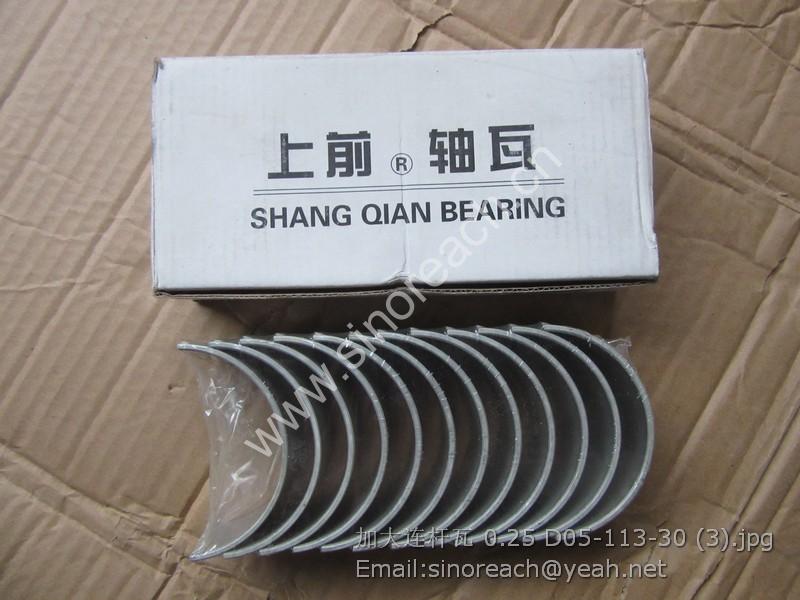

ROD BEARING 0.25 D05-113-30 4110000997281 SP101409 4110000036024 860113188 Z00250663
| 1 | 4013000066 | 螺母 GB889.2-M33*1.5-8 | NUT GB889.2-M33*1.5-8 |
| 2 | 2907000022 | 垫圈 | WASHER |
| 3 | 4030000035 | O 形圈 GB3452.1-53*5.30G | O-RING |
| 4 | 2907000024 | 挡圈 | RING SNAP |
| 5 | 2907000023 | 输入法兰 | INPUT FLANGE |
| 6 | 4011000067 | 螺栓 GB5782-M14*55EpZn-8.8 | BOLT GB5782-M14*55EpZn-8.8 |
| 7 | 4015000027 | 垫圈 GB93-14-65Mn | WASHER GB93-14-65Mn |
| 8 | 2907000026 | 密封垫 | GASKET |
| 9 | 4011000166 | 螺栓 GB5782-M12*55EpZn-8.8 | BOLT GB5782-M12*55EpZn-8.8 |
| 10 | 4015000026 | 垫圈 GB93-12-65Mn | WASHER GB93-12-65Mn |
| 11 | 2907000025 | 密封盖 | SEALING COVER |
| 12 | 4030000049 | 油封 HG4-692-SG80*100*12 | OIL SEAL HG4-692-SG80*100*12 |
| 13 | 4021000030 | 滚动轴承 GB297-31313 | BEARING GB297-31313 |
| 14 | 2907000027 | 轴承座 | BEARING SEAT |
| 15 | 2907000028 | 轴套 | SHAFT SLEEVE |
| 16 | 2907000015 | 调整垫片 | ADJUSTING SHIM |
| 16 | 2907000016 | 调整垫片 | ADJUSTING SHIM |
| 16 | 2907000017 | 调整垫片 | ADJUSTING SHIM |
| 17 | 2907000018 | 垫片 | SPACER |
| 17 | 2907000019 | 垫片 | SPACER |
| 17 | 2907000020 | 垫片 | SPACER |
| 17 | 2907000021 | 垫片 | SPACER |
| 18 | 4021000032 | 滚动轴承 GB297-31314 | BEARING GB297-31314 |
| 19 | 4011000494 | 螺栓 GB5786-M16*1.5*45EpZn-8.8 | BOLT M16*1.5*45EpZn-8.8 |
| 20 | 4015000098 | 垫圈 GB93-16-65Mn | WASHER GB93-16-65Mn |
| 21 | 4021000036 | 滚动轴承 GB297-32216 | BEARING GB297-32216 |
| 22 | 2907000035 | 调整螺母 | ADJUSTING NUT |
| 23 | 4016000124 | 销 GB119.2-10u8*30 | PIN GB119.2-10u8*30 |
| 24 | 2907000032 | 托架 | CARRIER |
| 25 | 2907000031 | 锁紧片 | LOCKING LEAF |
| 26 | 4013000052 | 螺母 GB6173-M27*2-05 | NUT GB6173-M27*2-05 |
| 27 | 2907000030 | 止推螺栓 | BOLT |
| 28 | 2907000039 | 轴承座 | CAGE |
| 29 | 2907000040 | 锁紧片 | LOCKING LEAF |
| 30 | 4015000025 | 垫圈 GB93-10-65Mn | WASHER GB93-10-65Mn |
| 31 | 4011000597 | 螺栓 GB5786-M10*1*20EpZn-8.8 | BOLT GB5786-M10*1*20EpZn-8.8 |
| 32 | 2907000130 | 垫圈 | WASHER |
| 33 | |||
| 34 | 2907000952 | 螺栓 | BOLT |
| 35 | 2907000029 | 主动螺旋伞齿轮（左） | SPIRAL BEVEL GEAR PINION(LEFT) |
| 36 | 4021000027 | 滚动轴承 GB283-NUP2307 | BEARING GB283-NUP2307 |
| 37 | 4015000020 | 挡圈 GB894.1-35-65Mn | RING SNAP GB894.1-35-65Mn |
| 38 | 2907000033 | 锥齿轮垫片 | WASHER THRUST |
| 39 | 2907000034 | 锥齿轮 | GEAR PINION |
| 40 | 2907000951 | 垫圈 | WASHER |
| 41 | 4013000198 | 螺母 GB6176-M16*1.5-10 | NUT GB6176-M16*1.5-10 |
| 42 | 2907000043 | 差速器左壳 | LEFT CASE DIFF |
| 43 | 2907000038 | 半轴齿轮垫片 | WASHER THRUST |
| 44 | 2907000037 | 半轴齿轮 | GEAR SIDE |
| 45 | 2907000041 | 十字轴 | SPIDER |
| 46 | 4041000019 | O 形圈 LGB308-430*3.5 | O-RING LGB308-430*3.5 |
| 47 | 2907000045 | 从动螺旋伞齿轮（右） | LARGE SPRIAL BEVELGEAR (RIGHT) |
| 48 | 2907000036 | 差速器右壳 | RIGHT CASE DIFF |
| 49 | 2907000949 | 螺栓 | BOLT |
| 50 | 2907000950 | 螺栓 | BOLT |
