Description

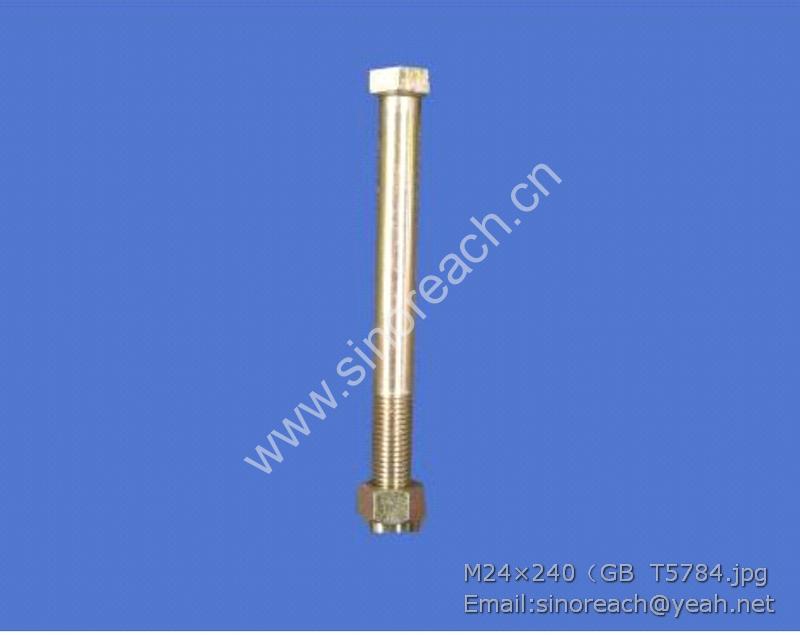

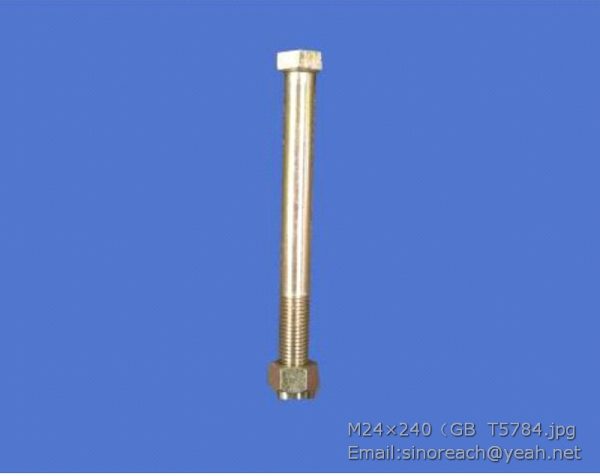

M24×240 GB/T5784 Front axle bolt and nut for LONKING part

1 30609100010 LG6225L.09-01 内螺纹圆柱销 HOSE ASS’Y 1
2 60206000012 013.30.1243.021.34.15F3 回转支承 SWING CIRCLE 1
3 60980005319 PT1/8 180° 油杯 GREASE FITTING 4
4 60911011172 R1/8D 四通直座-30487 润滑管 HOSE ASS’Y 1
-1330R1/8(90°)
5 51427160122 GB/T1230 垫圈22 WASHER 22 72
6 51203163821 GB/T5782 螺栓 M22×115 BOLT M22×115 36
7 51203162121 GB/T5783 螺栓 M22×75 BOLT M22×75 36
8 60911010136 R08-8 软管夹 HOSE CLAMP 3
9 51421080121 GB/T97.1 垫圈6 WASHER 6 2
10 51158190310 GB/T818 螺钉 M6×12 BOLT M6×12 2
11 60911011459 R1/8D 三通直座-30487 润滑管总成 HOSE ASS’Y 1
-1330R1/8(90°)
12 60911013546 直角 R1/2-SH14-750- 软管总成 HOSE ASS’Y 1
R1/8直角
13 30609100006 LG6230.09-03 防护塞 GUARD PLUG 1
14 30609100011 LG6225L.09-02 圆柱销 PIN 1
15 60300000560 6410578 回转马达 SWING CIRCLE 1
16 51203151821 GB/T5782 螺栓 M20×60 BOLT M20×60 11
17 51427150122 GB/T1230 垫圈20 WASHER 20 11
18 60911010375 R1/8-30487-1330R1/4 润滑管总成 HOSE ASS’Y 1
19 51204090922 GB/T5783 螺栓 M8×16 BOLT M8×16 1
20 51421090121 GB/T97.1 垫圈8 WASHER 8 1

1 30605000413 LG6235E.05.01 主泵管路 MASTER PUMP LINE 1
2 30605000415 LG6235E.05.02 主阀回油管路 MASTER VALVE OIL RETURN LINE 1
3 30605000042 LG6230.05A.03 主阀工作管路1 MASTER VALVE WORK LINE 1 1
4 30605000970 LG6230.05C.04 主阀工作管路2 MASTER VALVE WORK LINE 2 1
5 30605000971 LG6230.05C.05 先导管路1 PILOT LINE 1 1
6 30605000972 LG6230.05C.06 先导管路2 PILOT LINE 2 1
7 30605000973 LG6230.05C.07 先导管路3 PILOT LINE 3 1
8 30605000050 LG6230.05.08 下车管路 CHASSIS LINE 1

1 60911010018 1BG-08 B2351 端直通接头 END STRAIGHT CONNECTOR 3
2 60911010016 1BG-04 B2351 端直通接头 END STRAIGHT CONNECTOR 3
3 60911011234 FL-16 法兰夹 FLANGE CLAMP 16
4 60911010104 6ZWII20C1F 中央回转接头 CENTRAL SWING CONNECTOR 1
5 51204101222 GB/T5783 螺栓 M10×30 BOLT M10×30 16
6 51139220408 GB/T70.1 螺钉 M10×30 SCREW M10×30 16
7 51401100122 GB/T93 垫圈10 WASHER 10 32
