Description

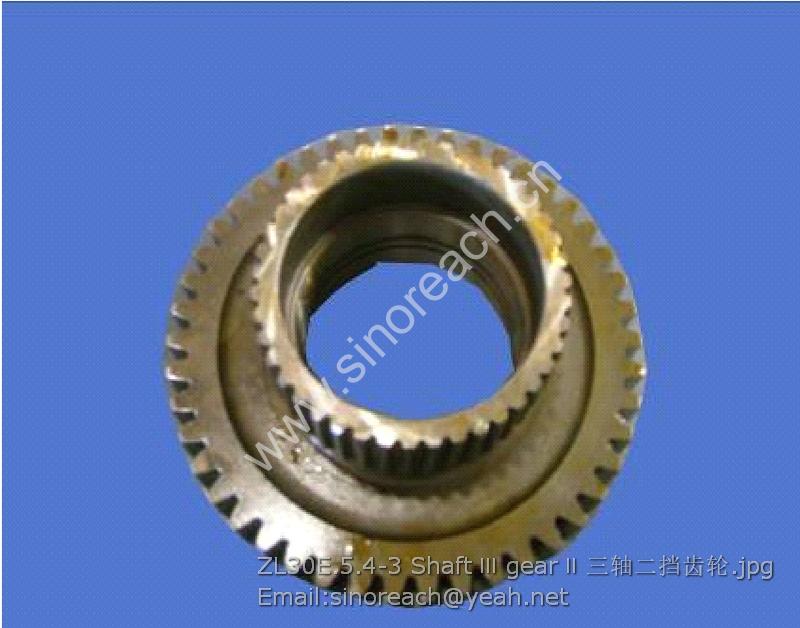

LONKING ZL30E.5.4-3 Shaft Ⅲ gear Ⅱ

GB/T5783 螺栓M16×40 Bolt M16×40 2
GB/T97.1 垫圈16 Washer 16 5
GB/T93 垫圈16 Washer 16 5
LG853.13.08.04 空气滤清器 Air cleaner 1 QL-10C
GB/T5783 螺栓M8×20 Bolt M8×20 4
GB/T93 垫圈8 Washer 8 4
GB/T97.1 垫圈8 Washer 8 4
LG30F.13.08.01 燃油箱体 Fuel tank case 1 301701-723D
GB/T5783 螺栓M16×35 Bolt M16×35 3
LG853.13.08.02 吸油滤油器总成 Oil suction filter assembly 1 401724-729B
GB3452.1-1992 O形圈45×3.55 O-ring 45×3.55 1
LG853.13.08.05 圆形油标 Dip stick 3
LG853.13.08-002 垫片 Gasket 1
LG853.13.08.03 放油盖 Oil drain cover 1
LG853.13.08-003 磁铁φ80×φ40×12 Magnet φ80×φ40×12 1
LG853.13.08-001 堵头 Plug 1
GB/T5783 螺栓M10×30 Bolt M10×30 6
GB/T93 垫圈10 Washer 10 6
GB/T97.1 垫圈10 Washer 10 6

LG853.15.09 电喇叭总成 Electric horn assembly 1 DL-50D-24V
LG30F.15.01 前车架线束 Front frame harness 1
LG853.15.10 前组合灯 Combined headlamp 2 HDF-02
LG853.15.11 雨刮器总成 Wiper assembly 1 ZD2332A
LG30F.15.12 拖方大灯 Quadrate working lamp 2 WD140×90
LG30F.15.02 驾驶室线束 Cab harness 1
LG30F.15.13 长型吸顶灯 Top lamp 1 Z216
LG853.15.14 电锁开关 Electric lock switch 1 JK324C
LG30F.15.03 后车架线束 Rear frame harness 1 LG855.15003B
LG853.15.16 水温传感器 Water temperature sensor Z3/8 1 Z3/8”WG-2
LG30F.15.04 机罩灯线束 Hood lamp harness 1set
LG30F.15.17 三色灯 Tri-color width indicator lamp 2 Z216
LG853.15.18 动力机油压力表 Oil pressure gauge for diesel engine 1 YT-202/ 0.8MPa
LG853.15.19 动力机水温表 Water temperature gauge for diesel engine 1 DW-2/ 40-120℃
LG853.15.20 电流表 Ammeter 1 DL-3/ ±30A
LG853.15.21 计时表 Hour meter 1 GS-3
LG853.15.22 变矩器油温表 Oil temperature gauge for torque converter 1 DW-2/ 40-140℃
LG853.15.23 转向指示灯 Turning pilot lamp 2 DH16-4
LG853.15.24 变速箱油压表 Oil pressure gauge for transmission 1 YT-202/ 3.2MPa
LG853.15.25 制动气压表 Brake air pressure gauge 1 YT-202/ 1.2MPa
LG853.15.26 蓄电池 Battery 2 6-QW-120
LG853.15.27 低压报警开关 Low pressure alarm switch 1 SH161
LG853.15.05 电瓶线 Battery harness 1set
