Description

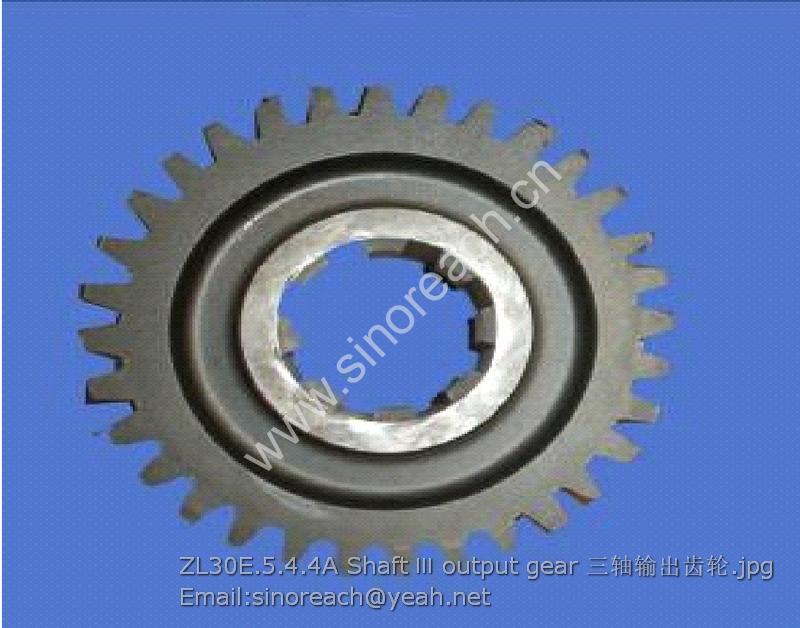

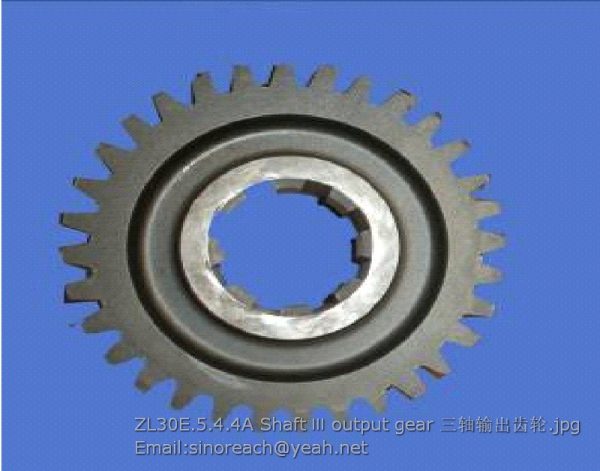

LONKING ZL30E.5.4.4A Shaft Ⅲ output gear

LG30F.10Ⅰ.01 前车架 Front frame 1 LG30F.10100A
LG30F.10Ⅰ.02 后车架 Rear frame 1 LG30F.10200A(D)
LG30F.10Ⅰ.04 转斗缸后销轴 Tilt cylinder rear pin 1 411004-005
GB/T5782 螺栓 Bolt M12×30 30
GB/T93 垫圈12 Washer 12 42
JB/T7940.1-1995 油杯M10×1 Oil cup M10×1 11 GB1152-79
LG30F.10Ⅰ.05 动臂上销轴 Lift arm upper pin 2 310004-004D
GB/T5782 螺栓M10×20 Bolt M10×20 4
GB/T93 垫圈10 Washer 10 4
GB/T97.1 垫圈 10 Washer 10 4
LG30F.10Ⅰ-001 盖板 Cover board 1 310001D
LG30F.10Ⅰ-002 动臂油缸销轴 Lift cylinder pin 2 310003D
LG30F.10Ⅰ.03 摆动架 Oscillating suspension 1 310044-048D
LG30F.10Ⅰ.07 注油管 Oil filling pipe 2 410035-036B
LG853.10-010 铜垫 Copper spacer 2
LG853.10-012 套 Sleeve 2
LG853.10-011 副车架销 Oscillating suspension pin 2 410012-13A
LG30F.10Ⅰ-003 盖 Cover 1 310005D
LG30F.10Ⅰ-004 轴套 Shaft sleeve 1 310006D
LG30F.10Ⅰ-005 轴承盖 Bearing cover 2 310007D
GB/T5782 螺栓M12×100 Bolt M12×100 8
GB/T6170 螺母M12 Nut M12 8
GBHG4-692-67 油封90×70×12 Oil seal 90×70×12 2

LG30F.10Ⅰ-006 端盖 End cover 1 310008D
GB/T5782 螺栓M20×30 Bolt M20×30 1
GB/T93 垫圈20 Washer 20 1
GB/T5782 螺栓M12×25 Bolt M12×25 4
LG30F.10Ⅰ-007 下铰接销 Lower articulating pin 1 310009D
GB/T297 轴承32212 Bearing 32212 4 GB297-84 7512E
LG30F.10Ⅰ-008 调整垫 Adjusting shim 1set 310011D
LG30F.10Ⅰ-009 轴套 Shaft sleeve 1 310012D
LG853.10-014 卡板 Retainer 2
LG853.10-015 转向销 Steering pin 4 410007A
LG30F.10Ⅰ.06 上铰接销 Upper articulating pin 1 310013-014D
LG30F.10Ⅰ-010 调整垫 Adjusting shim 2sets 310016D
LG30F.10Ⅰ-011 轴承盖 Bearing cover 2 310017D
HG4-692-67 油封80×70×12 Oil seal 80×70×12 2
